Using Your Broadband Source in an Automated Test Environment
Broadband Source 63
Building and Using Custom VIs
8. Set the required parameters and connect the instrument
Communication ID in parameter to the Communication ID out
parameter from CommunicationXXXX_OpenComm.vi.

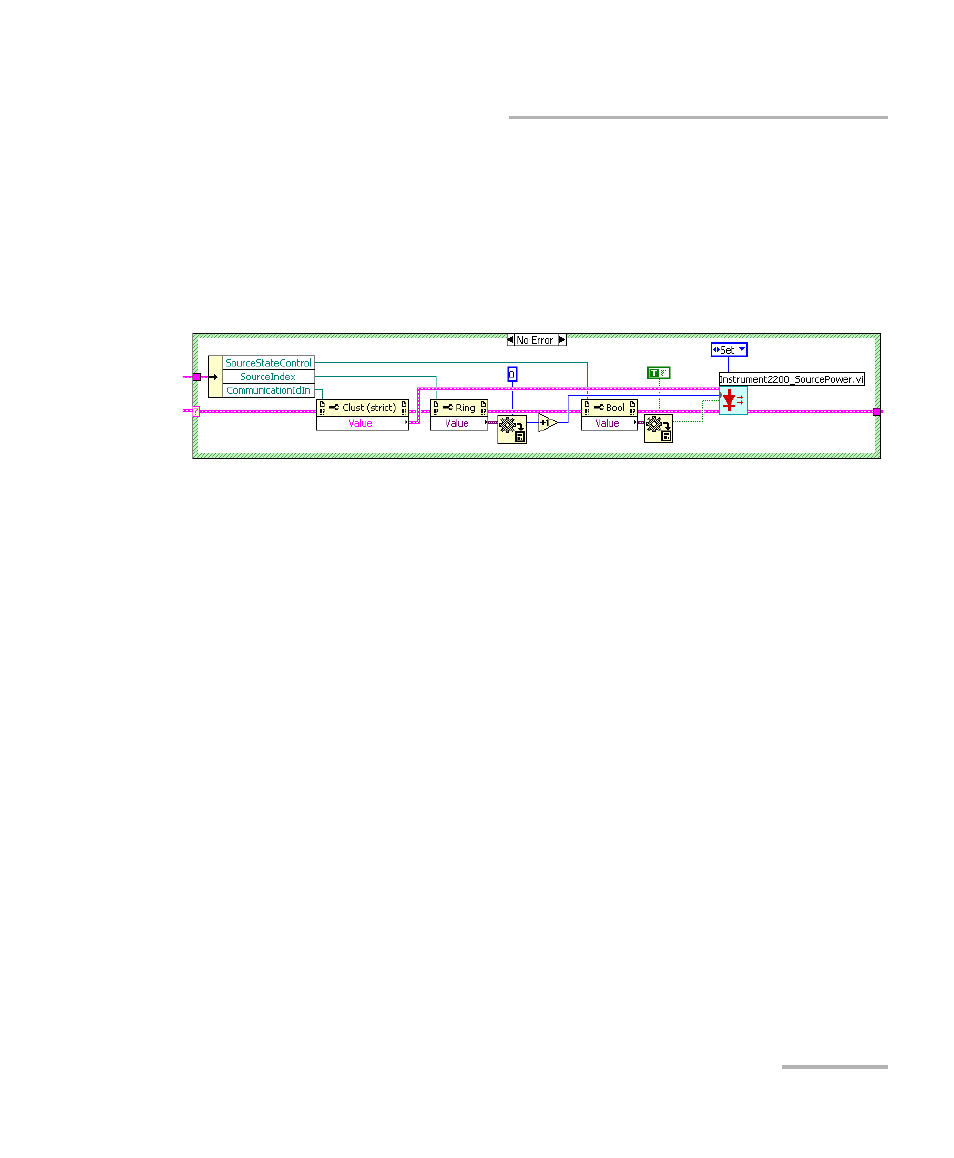

The example below shows how to configure the
SourcePowerState_GSet.vi to turn on the source.In this example, Set
was chosen and the PowerState parameter was set to True.
9. Repeat steps 7 and 8 for each of the functions you want to use.
However, you have to link Communication ID in of the new driver to
Communication ID out of the preceding driver.
Note: If you want to use IEEE 488.2 commands, add the desired driver to your VI
and configure its parameters exactly as you would do with any instrument
function.
