Preparing for Remote Control
Broadband Source 33
Setting Flow Control
Setting Flow Control
The flow control parameter applies only to RS-232 communication. This
parameter allows you to select the type of serial communication used.
You can choose the Soft option if you want the rate of data transmission to
match the rate at which it can be processed by the device. This enables the
computer and the Broadband Source to stop each other from transmitting
by sending a control character (Xoff). They will also be able to restart the
transmission by sending another control character (Xon). This is known as
a “software handshake”.
To set a flow control:
1. Press the Setup button.
2. Use the up/down or left/right arrow keys to select Flow Ctrl. The
current setting is displayed.
Note: If you are in GPIB mode, the Flow Ctrl cell will display “N.A.” You must
change the communication mode to RS-232 before setting the flow control.
3. Press ENTER, then use the up/down arrow keys to select the type of
flow you want. “None” means no flow control. “Soft” allows the unit or
computer controlling it, to turn the data transmission on or off.
4. Press ENTER to confirm.

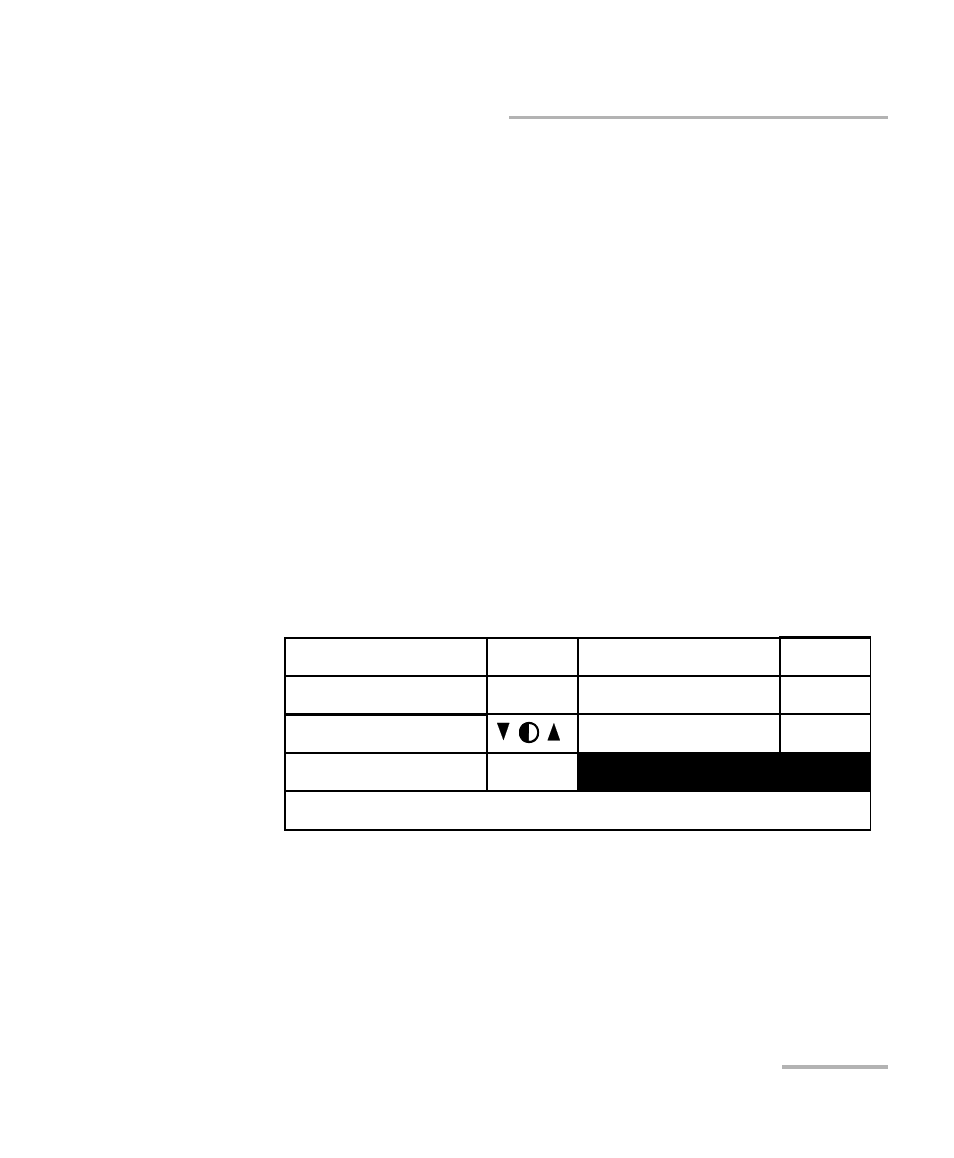

Refresh Rate
Backlight
Contrast
Video Mode
Exit
8 Hz
ON
STD
RS232 / GPIB
GPIB Addr.
Baud Rate
Flow Ctrl
RS232
N.A.
19200
Soft
