EXFO FLS-2200 Broadband Source User Manual
Page 18
Getting Started with Your Broadband Source
10
FLS-2200
To install your FLS-2200 Broadband Source in a rackmount:

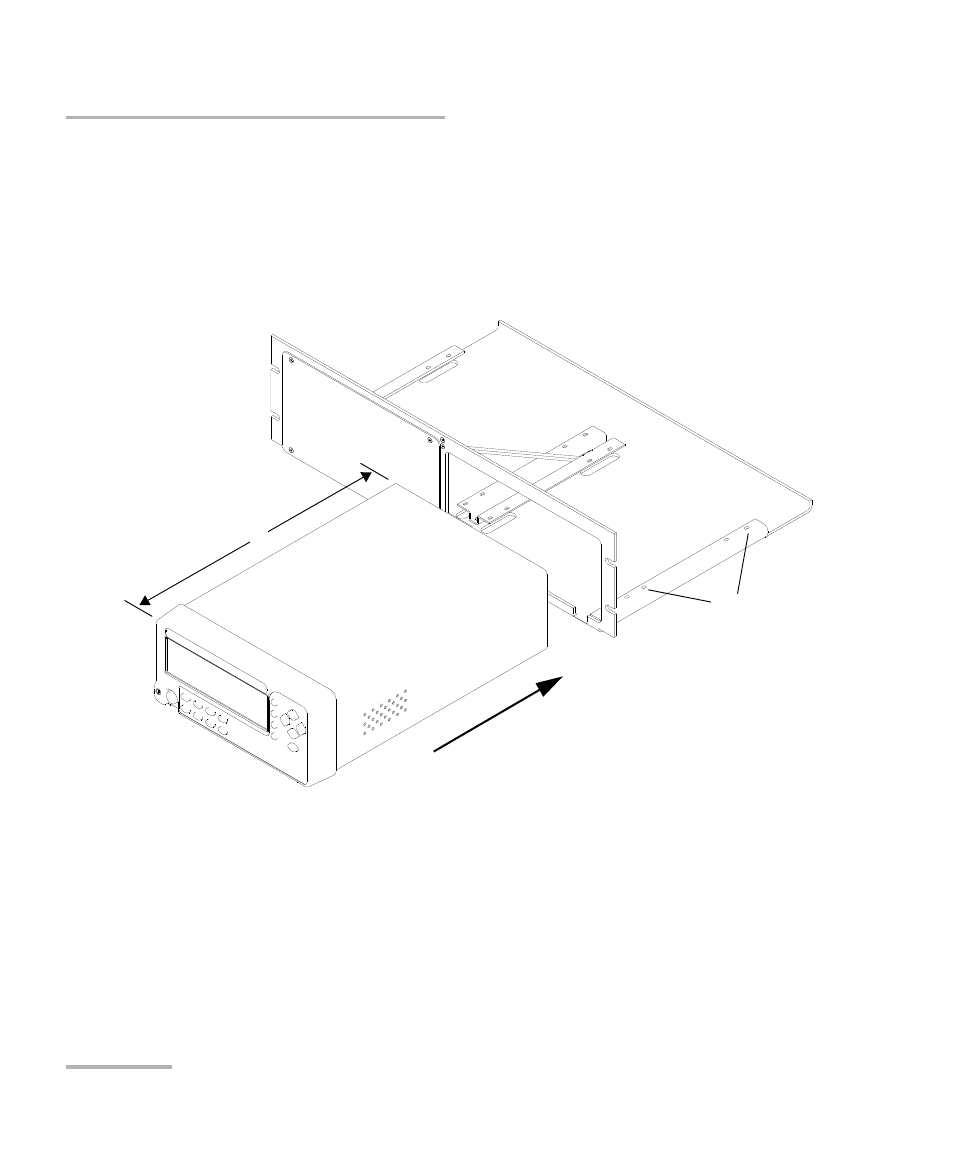

1. Slide the benchtop unit into the rackmount and tighten it from
underneath using the four cover fixing screws.
If measurement X on the illustration exceeds 11.125 in., fix the unit into
the four holes identified as A. Otherwise, use the other four holes.
2. If a second benchtop is to be installed, remove the cover plate and
repeat step 1.
X
A
