Disassembly
Removing the Keyboard 2 - 13
2.Disassembly
6. Carefully lift up the keyboard off the computer ( Figure 9d ).
7. Reverse the process to install a new keyboard.
8. Replace the center cover module as shown ( Figure 9e ).
8
e. d.
8
16

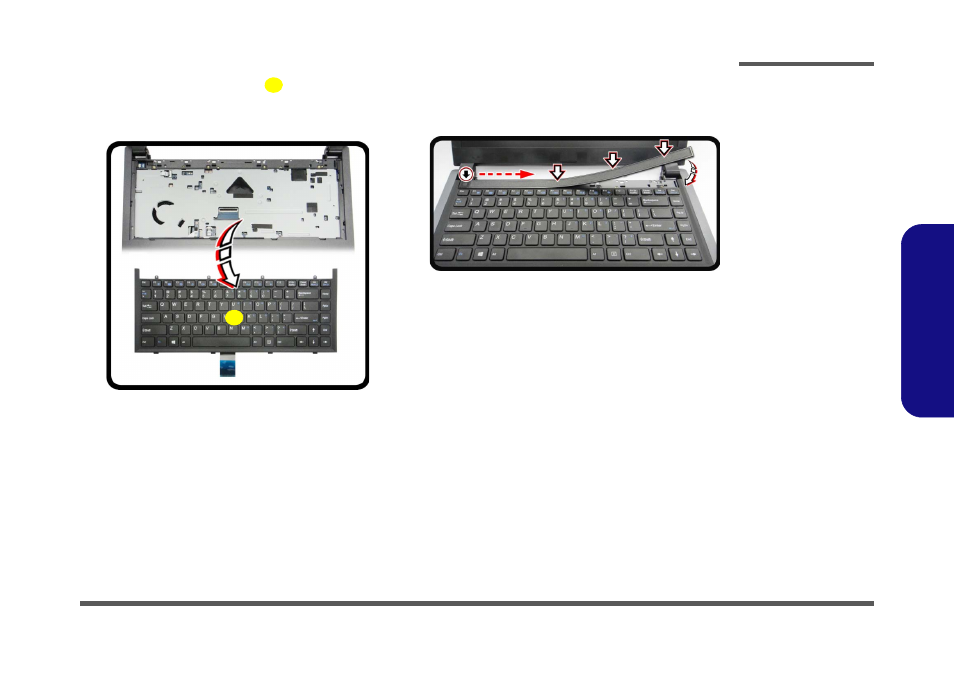

Figure 9
Keyboard Removal
(cont’d.)
d. Remove the keyboard.
e. Remove the keyboard
shielding plate.
