Disassembly
2 - 6 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)

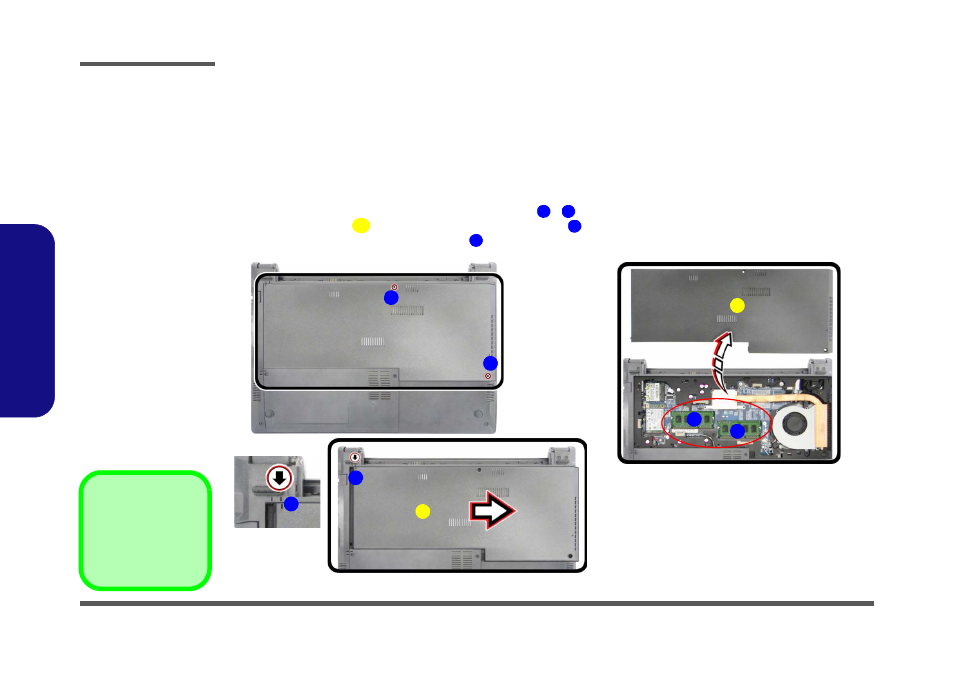

Figure 2
RAM Module
Removal
a. Remove the screws.
b. Slide the component
bay cover out.
c. Remove the compo-
nent bay cover.
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3L Up to 1600 MHz. The SO-DIMM modules supported are 1024MB and 2048MB DDRIII Modules. The total
memory size is automatically detected by the POST routine once you turn on your computer.
Memory Upgrade Process

3. Component Bay Cov-
er
1. Turn off the computer, turn it over, remove the battery ( page 2 - 5 ).
2. Locate the component bay cover and remove screws - ( Figure 2a ) .
3. Slide the bay cover until the cover and case indicators are aligned ( Figure 2b ).
4. The RAM modules will be visible at point on the mainboard ( Figure 2b ) .
1 2
3 4
