Disassembly
2 - 12 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over, remove the battery ( page 2 - 5 ).

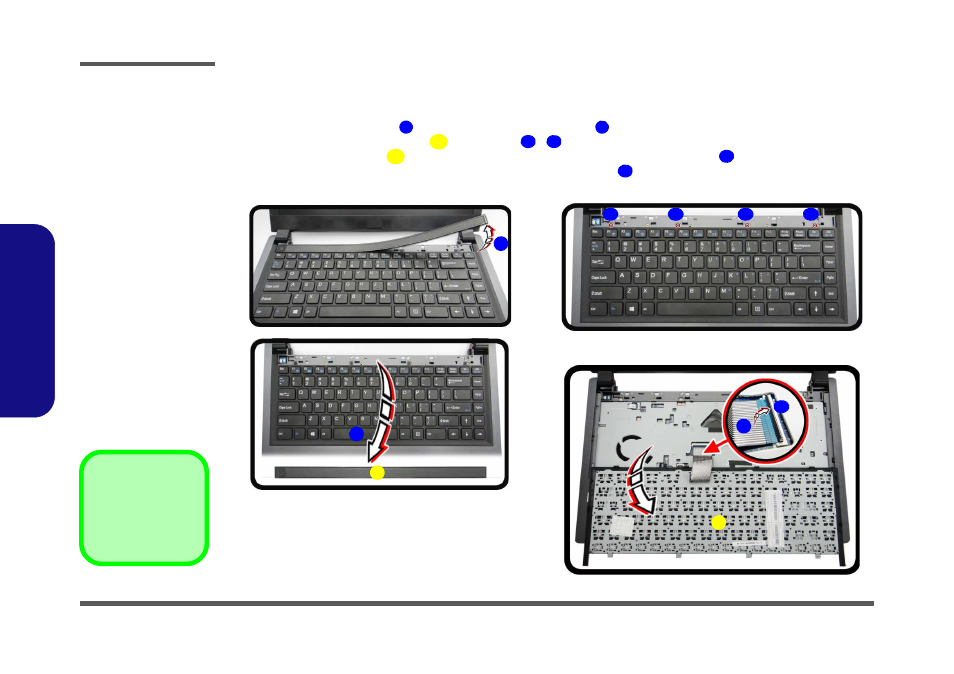

2. Lift the center cover at point toward the direction of the arrow ( Figure 8a ).
3. Remove the center cover module and screws - ( Figure 8b ).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable ( Figure 8c ).
5. Disconnect the keyboard ribbon cable from the locking collar socket ( Figure 8c ).
1 2
3 4 7
8 9
10
c.
6 7
3
1
a.
b.
2
9
10
8
4 5

3.Center Cover Module
8.Keyboard
• 2 Screws
Figure 8
Keyboard Removal
a. Lift the center cover.
b. Remove the center cov-
er and screws.
c. Disconnect the keyboard
ribbon cable from the
locking collar socket.
