Disassembly
Removing the Wireless LAN Module 2 - 11
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery ( page 2 - 5 ) and keyboard ( page 2 - 12 ).
2. The Wireless LAN module will be visible at point on the mainboard ( Figure 7a ).
3. Carefully disconnect the cable & , and then remove the screw ( Figure 7b )
4. The Wireless LAN module ( Figure 7c ) will pop-up, and you can remove it from the computer.
1
2 3 4
5
b. c.
a.
2
3
5
4
1

5.Wireless LAN Module
• 1 Screw

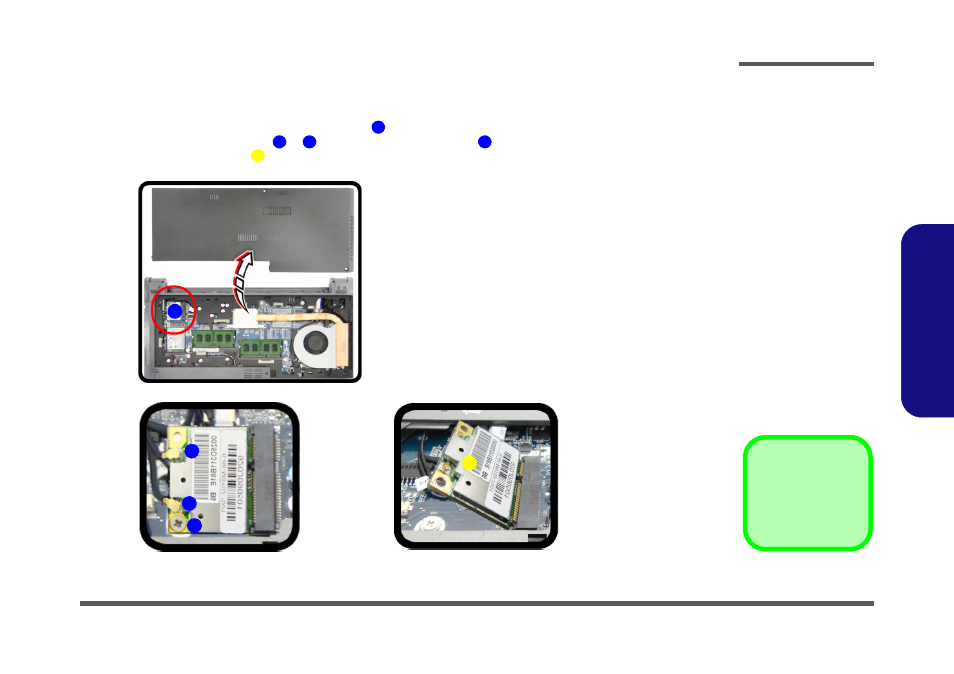

Figure 7
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (
Figure 7b ).
