M ULTI -A PPLIANCE T OUCH P AD
Controls – Installation / Setup / Commissioning
F AULT C ODES A CCESS
The Touch Pad control can recover the last 5 faults that the unit diagnostics has stored. Fault code 1 is
the current registered fault, while 2, 3, 4 & 5 is the fault code history.
1. At the time of the unit stopping and displaying the RESET icon. Press the RESET icon while the
Touch Pad control is in the ON mode before resetting the unit.
2. Recovering the fault log after the unit has been reset. In the OFF mode press and hold the RESET
icon outline till the numeric screen display changes.

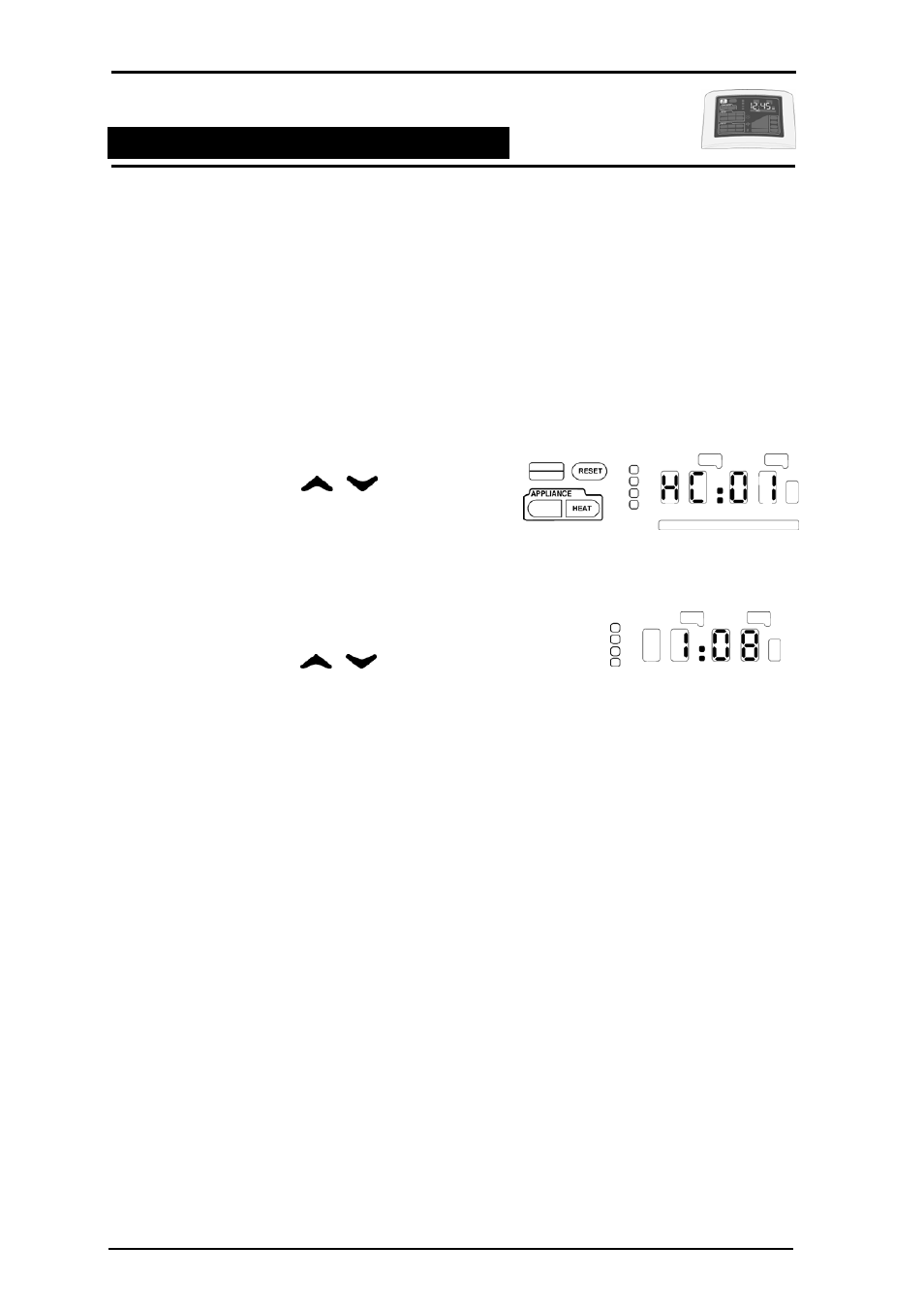

V IEW T HE F AULT C ODE
There are a number of fault codes that can be registered subject to the failure or the product associated.
Step 1 Once the fault code log has been entered tP:
01 will be displayed.
Step 2 Using the arrows select
the unit that displays the APPLIANCE and
reset icon (Reset Icon is not displayed after the
unit has been reset). Press ENTER
.
Step 3 The last fault code number will be displayed
with number 0 and the fault code. Number 0 is
always the most recent fault. See the fault
code table next page.
Step 4 Using the arrows, review
fault codes for 0, 1, 2, 3 & 4. Number 0 will be
the most recent.
Step 5 Press FINISH to exit.
Step 6 If the unit has not been reset, press and hold
RESET icon until a BEEP is heard for the unit
to recommence operation.
