NANO-PV-D510A User Manual
Page 33

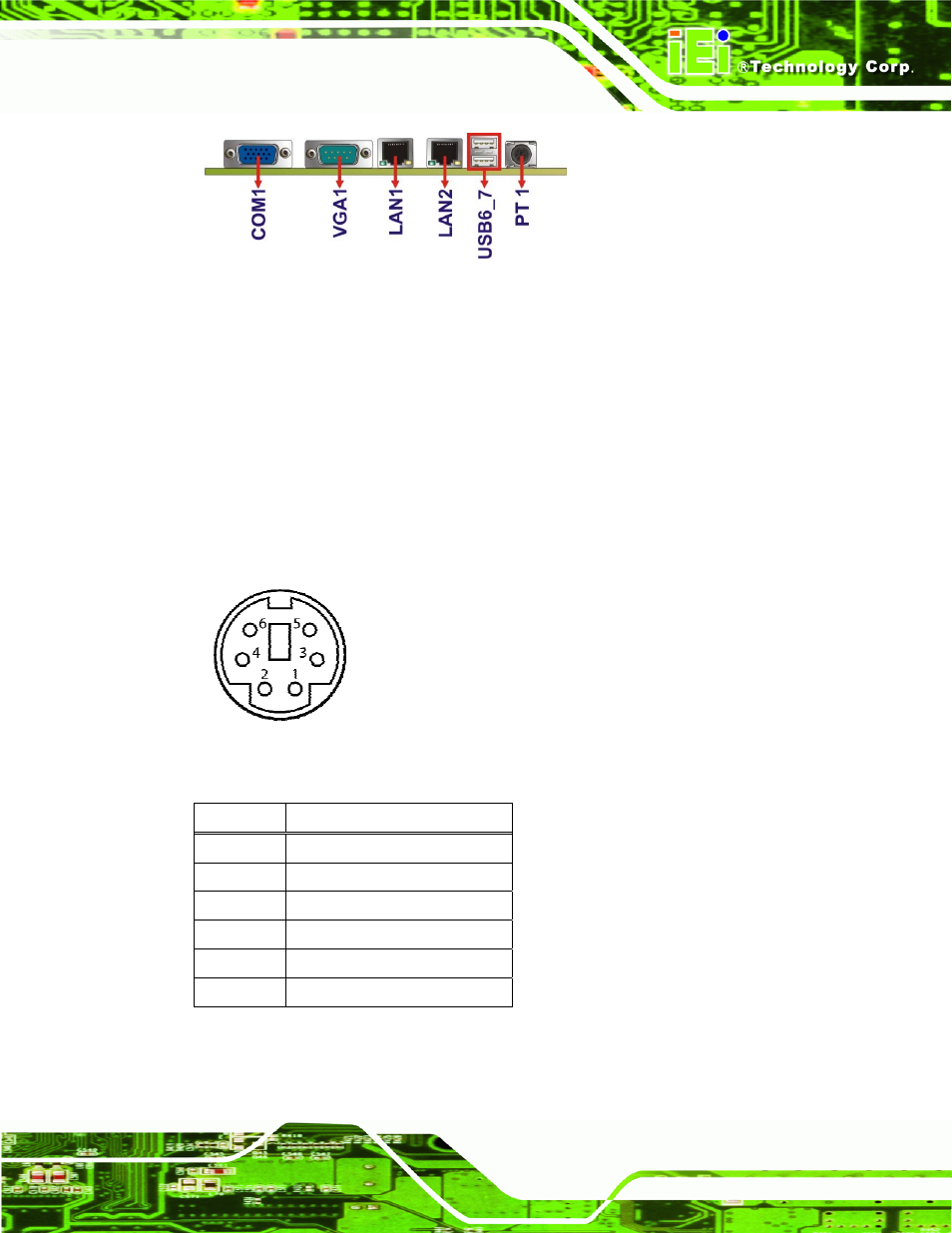

Figure 3-22: External Peripheral Interface Connector
3.3.1 Keyboard/Mouse Connector
CN Label: PT1
CN Type: PS/2
CN Location: See Figure 3-22
CN Pinouts: See Table 3-22
The keyboard and mouse connector is a standard PS/2 connector.
Figure 3-23: PS/2 Pinout and Configuration
Pin Description
1 KB DATA
2 MS DATA
3 GND
4 VCC
5 KB CLOCK
6 MS CLOCK
Table 3-22: Keyboard Connector Pinouts
