NANO-PV-D510A User Manual

Page 20

3.2.6 Fan Connector

CN Label:

CPU_FAN1, SYS_FAN1

CN Type:

3-pin header

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-8

The fan connector attaches to a cooling fan.

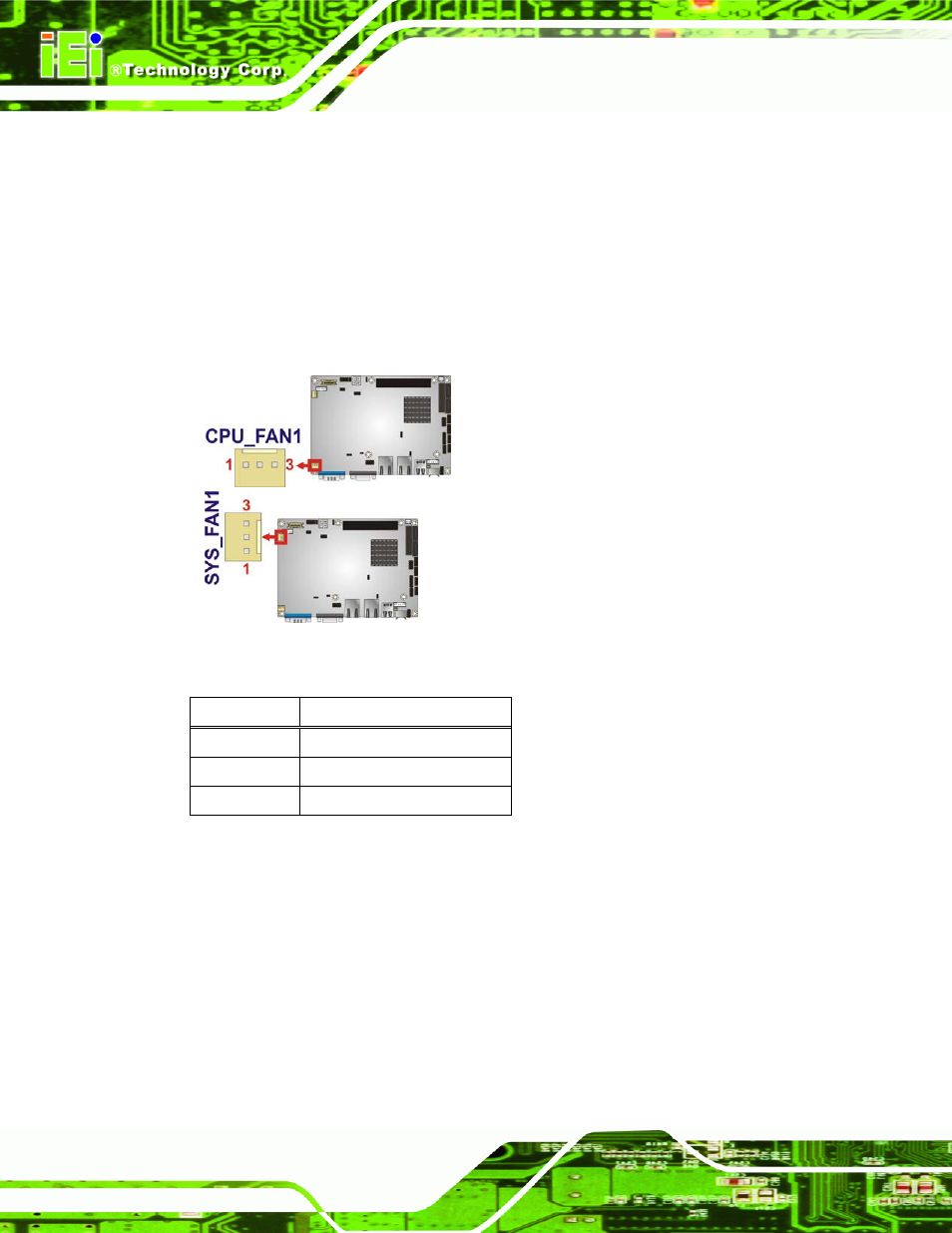

Figure 3-8: Fan Connector Location

Pin Description

1 GND

2 +12V

3 FANIO1

Table 3-8: Fan Connector Pinouts

3.2.7 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-9
