NANO-PV-D510A User Manual

Page 19

Pin Description

Pin Description

23 DATA

2 48 DATA

9

24 N/C

49 DATA

10

25 VCC-IN

CHECK2

50 GROUND

Table 3-6: CompactFlash® Slot Pinouts

3.2.5 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-7

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

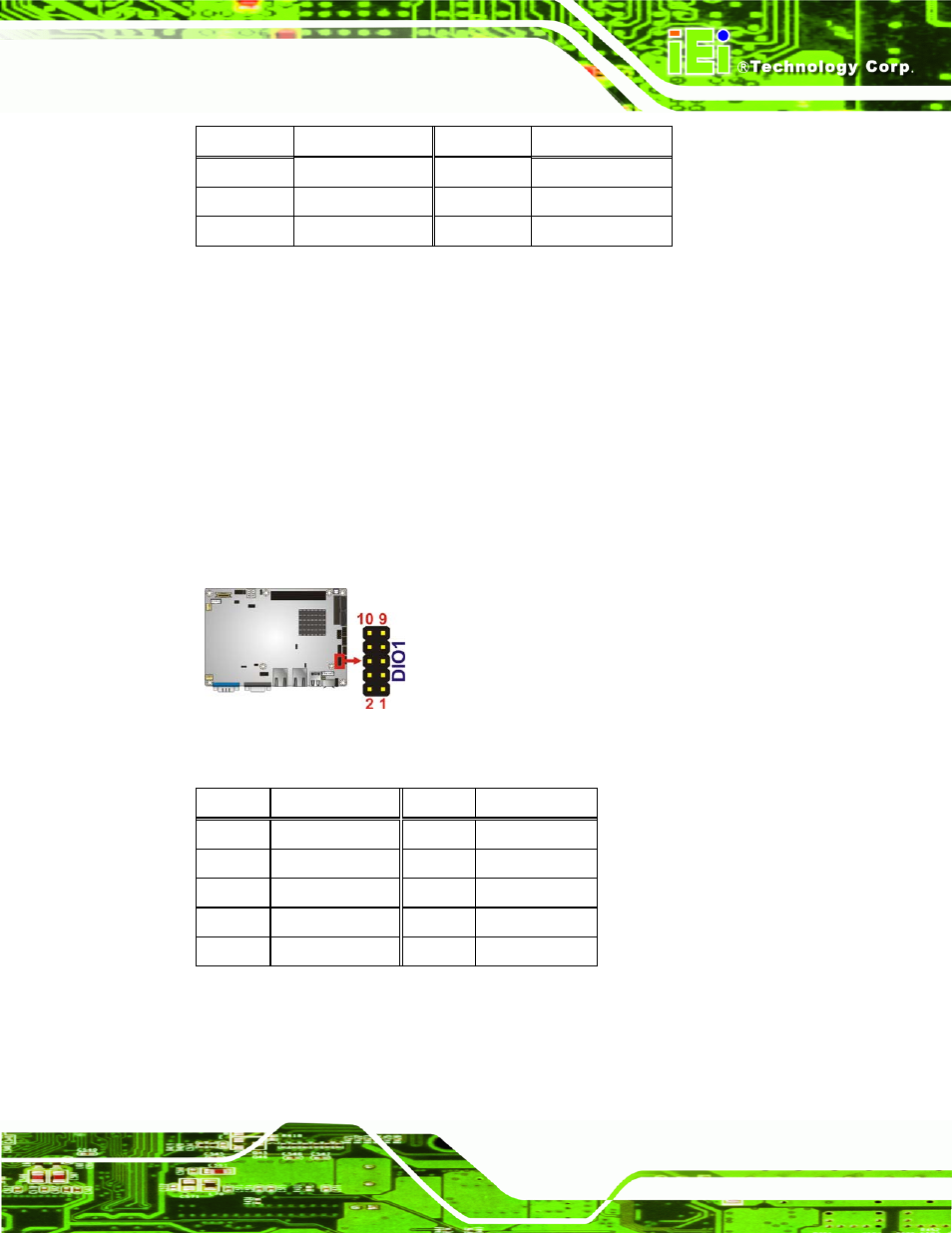

Figure 3-7: Digital I/O Connector Locations

Pin Description Pin Description

1 GND

2 VCC

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-7: Digital I/O Connector Pinouts
