Pin Description

Pin Description

19 GROUND

20 GROUND

21 GROUND

22 GROUND

23 GROUND

24 GROUND

25 GROUND

26 NC

Table 3-13: Parallel Port Connector Pinouts

3.2.12 PCI-104 Connector

CN Label:

PCI104_PLUS1

CN Type:

PCI-104 connector

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-14

The PCI-104 connector is for installing a PCI-104 expansion card.

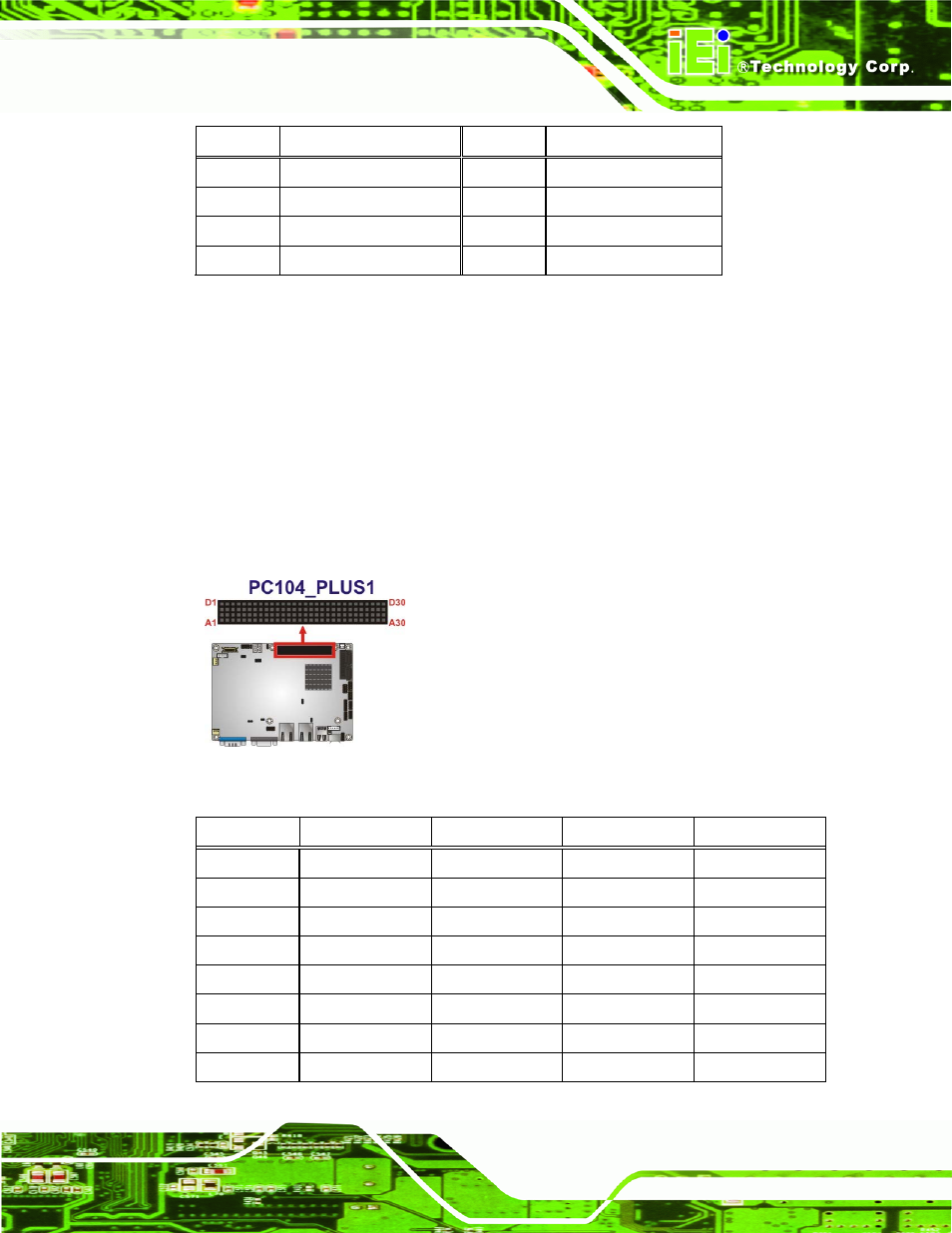

Figure 3-14: PCI-104 Connector Location

Pin

Row A

Row B

Row C

Row D

1

GND/5 V

TBD1

5 V

AD00

2 VI/O1 AD02 AD01 +5

V

3 AD05 GND AD04 AD03

4 C/BE0#

AD07 GND AD06

5 GND AD09 AD08 GND

6 AD11 VI/O2 AD10 M66EN

7 AD14 AD13 GND AD12

8

+3.3 V

C/BE1#

AD15

+3.3 V
