English-6
DOP-B05 Series

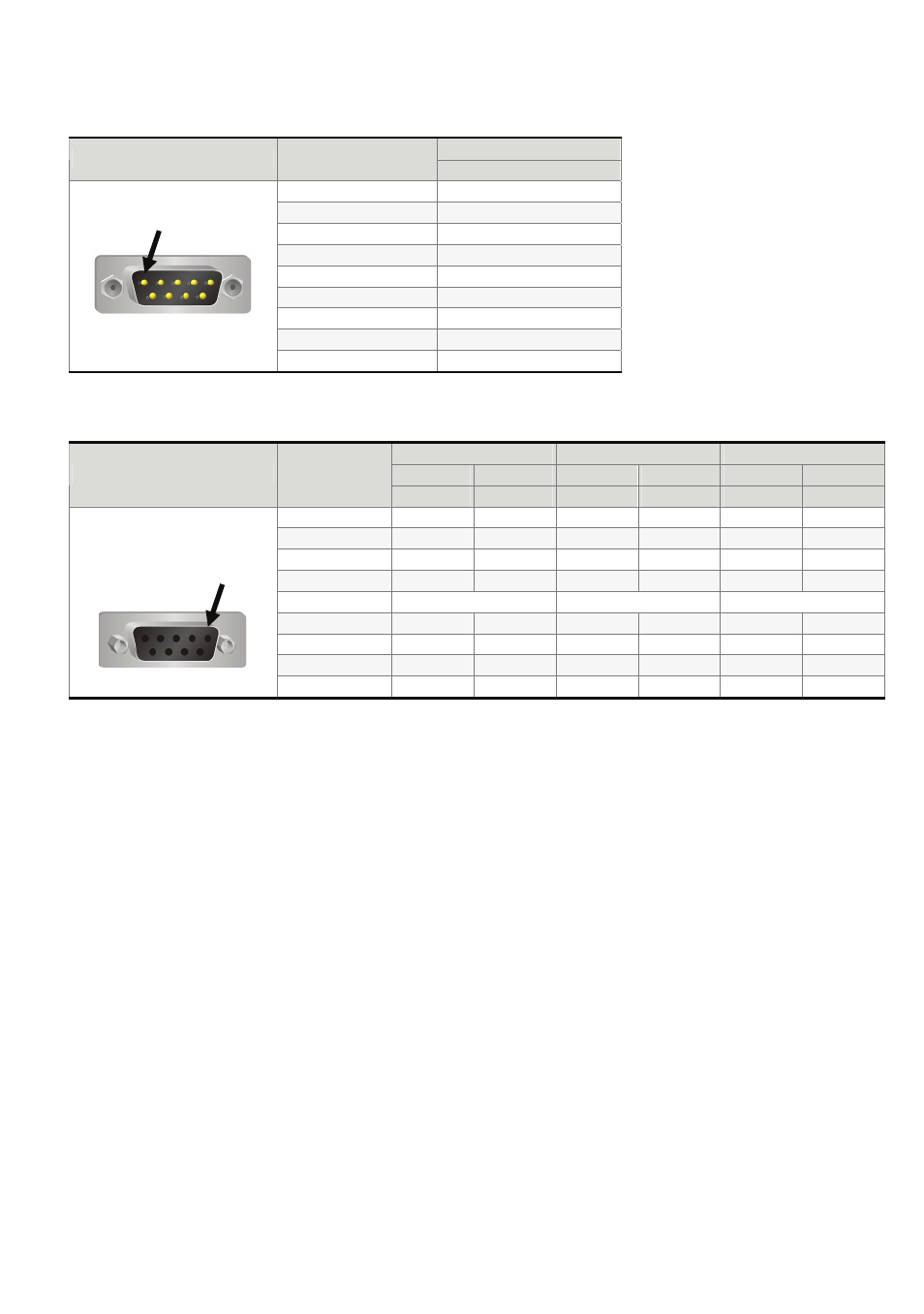

COM1 Port (Supports Flow Control)
Contact
COM Port PIN
RS-232
1
2
RXD
3 TXD
4
5 GND
6
7 RTS
8
CTS
9
Note: Blank = No Connection.
COM2 and COM3 Port
MODE1 MODE2 MODE3
COM2 COM3 COM2 COM3 COM2 COM3 COM Port PIN
RS-232 RS-485 RS-485 RS-485 RS-232 RS-422
1 D+ TXD+
2 RXD RXD
3 TXD TXD
4 D+ D+ RXD+
5 GND GND GND
6
D- TXD-
7
8
9 D- D- RXD-
Note: Blank = No Connection.
PIN1
PIN1
