English-10

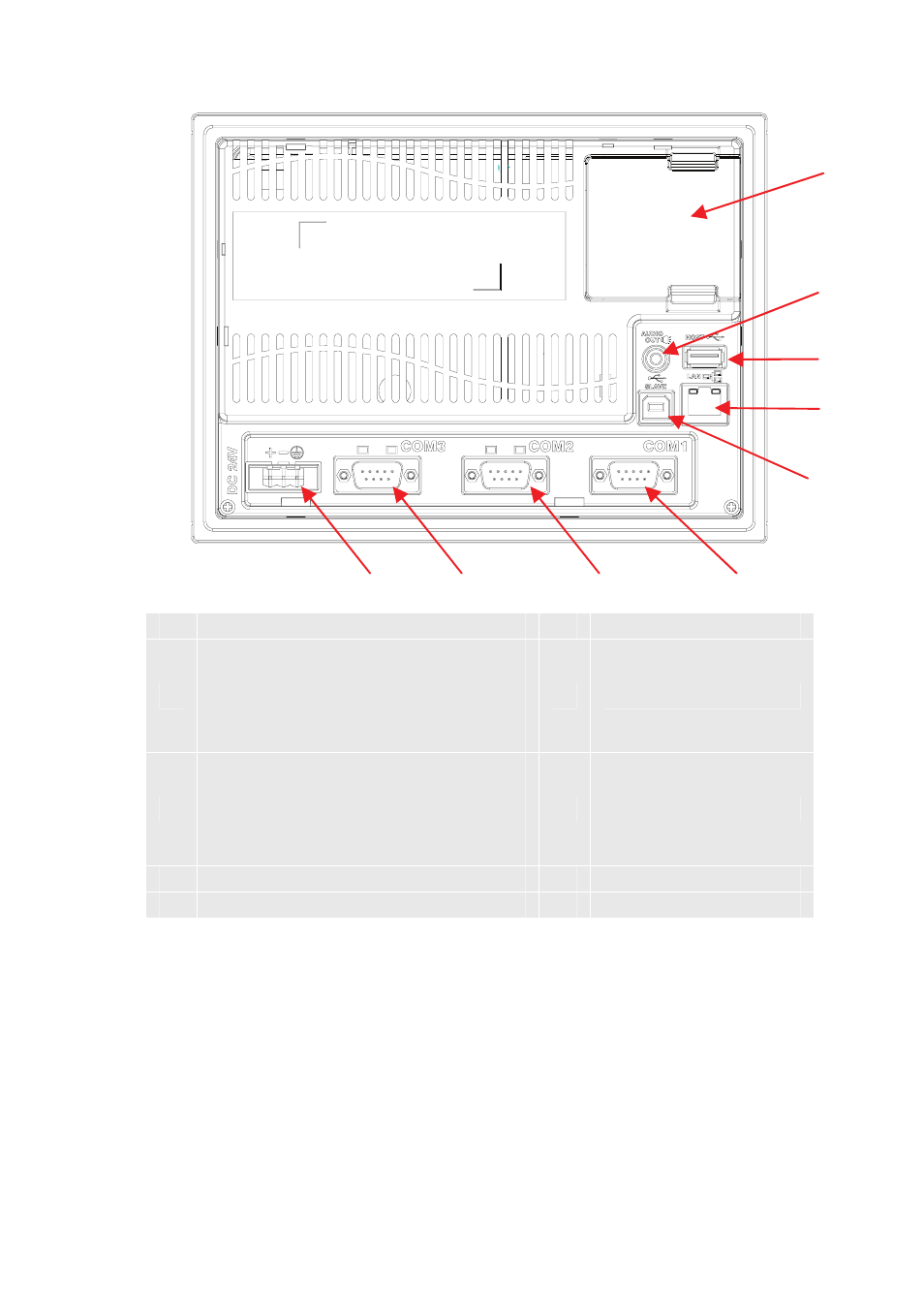

DOP-B07S200 / DOP-B07S201 / DOP-B07S211 / DOP-B07E205 / DOP-B07E215 (Rear View)
A Power Input Terminal F Ethernet Interface (LAN)
B
COM3 (RS-232 / RS-422 / RS-485)
(It is provided with two LED indicators
to indicate that HMI is in Read or Write
status during the communication
process.)
G USB Host
C
COM2 (RS-232 / RS-422 / RS-485)
(It is provided with two LED indicators
to indicate that HMI is in Read or Write
status during the communication
process.)
H Sound Output Interface
D COM1 (RS-232) I Battery / SD Card Cover
E USB Client - -
G
D C B A
I
E
F
H
