D-Link DFE-2600 - Manual (Page 107)

Web-Based Network Management 95

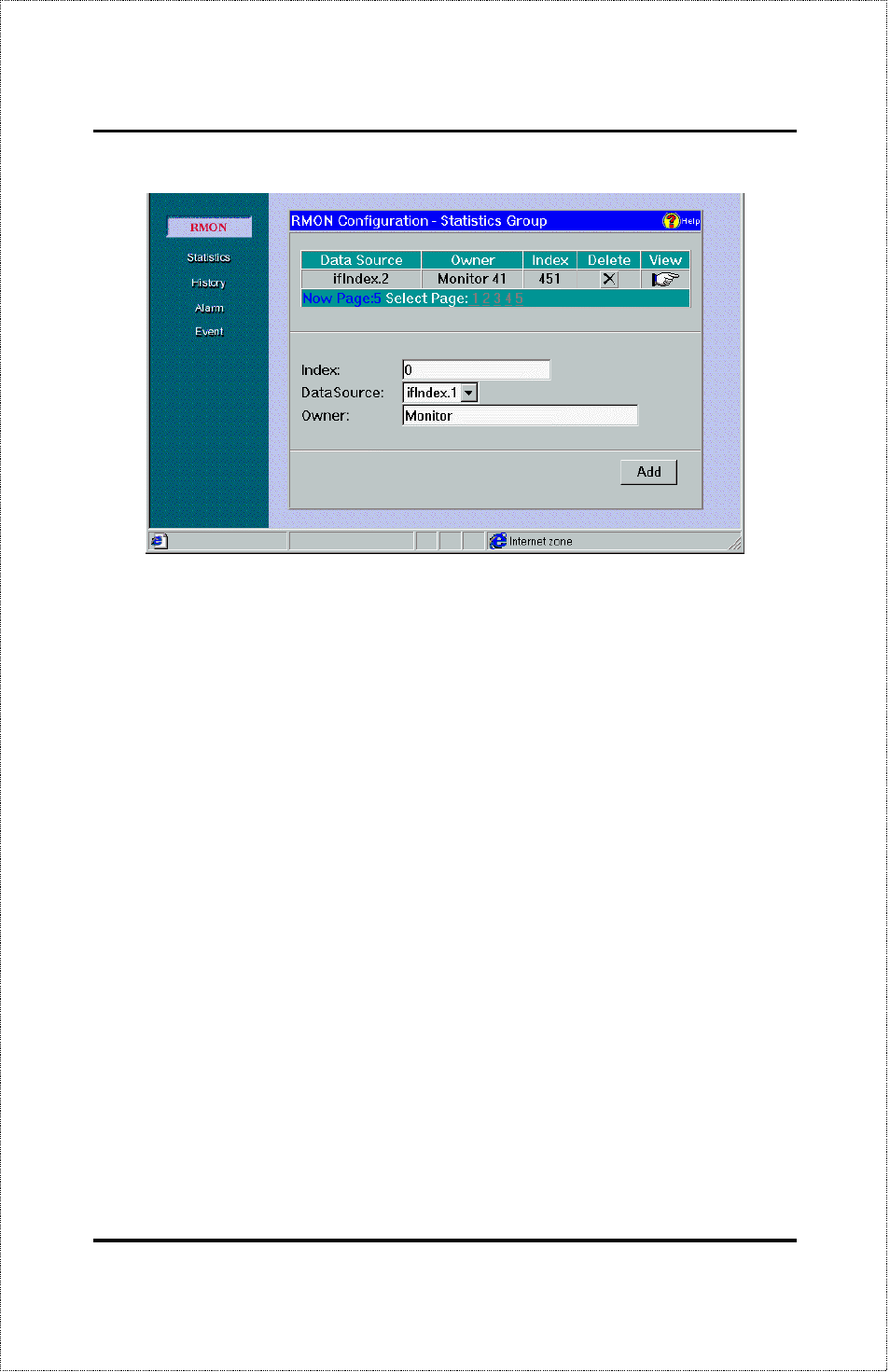

The above Statistics table must contain at least one entry to begin keeping
statistics. To add a new entry into the Statistics group, simply fill in the 3
fields - Index, Data Source and Owner, and then click on the Add button
(see explanations below).
•
Index (1..65535) This value uniquely identifies an entry. Other than
numerical position in the Statistics Table, there is no benefit or disad-
vantage in choosing a specific index value.
•
Data Source ifIndex. This entry identifies the source of the data that
this entry is configured to analyze. This source can be any Ethernet in-
terface on the device.
•
Owner This entry is the entity that initiated the entry and is using the
resources assigned to it.
Other functions of the Control Table are as follows:
◊
Delete To clear an entry, click Delete to remove it.
◊
View To view statistics on an entry, click the View button. Sta-
tistics are organized in a table (shown below).
