CONNECTING THE PROJECTOR
Your projector is equipped with various audio/video inputs and outputs including Computer HDB15-pin (VGA) terminals,
Monitor HDB15-pin (VGA) terminals and S-VHS video ,
CONNECTING THE COMPUTER
CONNECTING TO THE COMPUTER INPUT HDB15-PIN (VGA) TERMINAL
Personal computers can be connected to the HDB15-pin (VGA) terminal on the projector.
• Connect the computer to this terminal using the VGA cable and VGA/MAC adapter (provided).
WARNING: For projectors, the VGA cable provided is designed to reduce RFI (Radio Frequency Interference)
emissions. For regulatory compliance reasons, this cable must be used and must not be replaced by any
other cable.
CONNECTING TO THE MONITOR OUTPUT HDB15-PIN (VGA) TERMINAL
Monitor can be connected to the HDB15-pin (VGA) terminal on the projector.
• Connect the monitor to this terminal using the monitor
cable (not provided).
Pin No./Signal
Pin No./Signai
HDB15-PIN
TERMINAL
1 Red input
9 Non Connect
5 4 3 2 1 ^
2 Green input
10 Ground (Vert, sync.)
O O O O O
/
1 0 9 8 7 6
/
3 Blue input
11 Sense 0
0 O 0 O O /
4 Sense 2
12 Sense 1
0
o
o
o
o /
15 14131211
J
5 Ground (Horiz. sync.)
13 Horiz. sync.
6 Ground (Red)
14 Vert. sync.
7 Ground (Green)
8
Ground (Blue)
15 Reserved
CONNECTING TO THE COMPUTER AUDIO INPUT JACKS
• Connect audio outputs from your computer to these jacks using the audio cable (not provided).
• If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right
and left jacks.
• If the audio input of the audio equipment is monaural, connect it to the left jack.
CONNECTING TO THE MULTI-POLE 12-PIN (CONTROL PORT) CONNECTOR
• If you wish to control the computer by the projector’s remote control unit, you must connect a cable (three type cables
provided) from control port (PS/2, Serial or ADB port) on your computer to this connector.

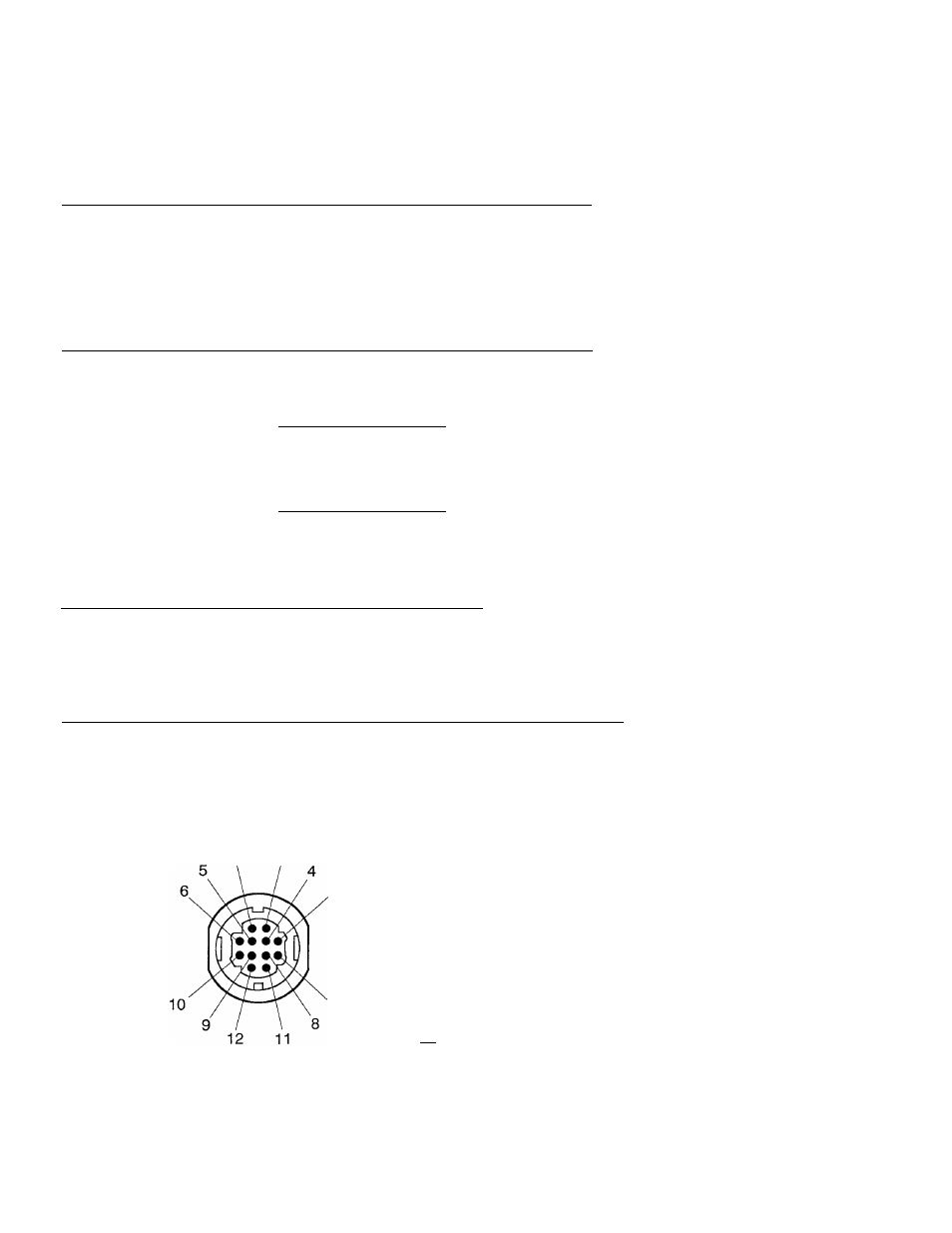

CONTROL PORT
11
12
PS/2 Port
CLK
DATA
GND
Serial Port
TxD
READY
GND
ADB Port
ADB
GND
10 —
