6. AnoUier dtaiog box *PC ADJUSTMENT DISPLAY i* wM appear and the parameter data (or the Mode you
have selected is shown in this dialog box.
7. The parameters will be filled with the data determined by the protector accordir>g to the present signal input.
8. The function of the parameters and their values are summarized in the table as below.
9. Move the arrow to an item that you want to adjust by pressing POINT UP/DOWN button(s).
to. To increase the level, point the arrow to
A
and then press SELECT button. To decrease the level, point the
arrow to
T
and then press SELECT button.
11. H you want to store the settings in the memory, move the arrow to Stored and press SELECT button. When
you have stored the settings. *OK
T
is displayed (or confirmation. Move the arrow to Yes ar>d then press
SELECT button.
12. To recaa the parameter data before setting, move the arrow to Reset and then press SELECT button. When
you have reset the settings. 'OK ?* Is displayed for confirmation. Move the arrow to Yes and then press
SELECT button. You can adjust the settings again if needed.
13. To quit PC Adjustnrrent Menu, move the arrow to and then press SELECT button.
14. If you quit PC Adjustment Menu without storing the settings in the memory, the parameter data you changed
wii not be kept
15. The stored settings are permanently held even if POWER ON/OFF is switched off.
16. Adjust the data such as a *Ctamp*. IHaghr and *Width’ H you needed, move №e arrow by pressing POINT
UP/DOWN button(s) to select T. Press SELECT button.
Continued to the next page.

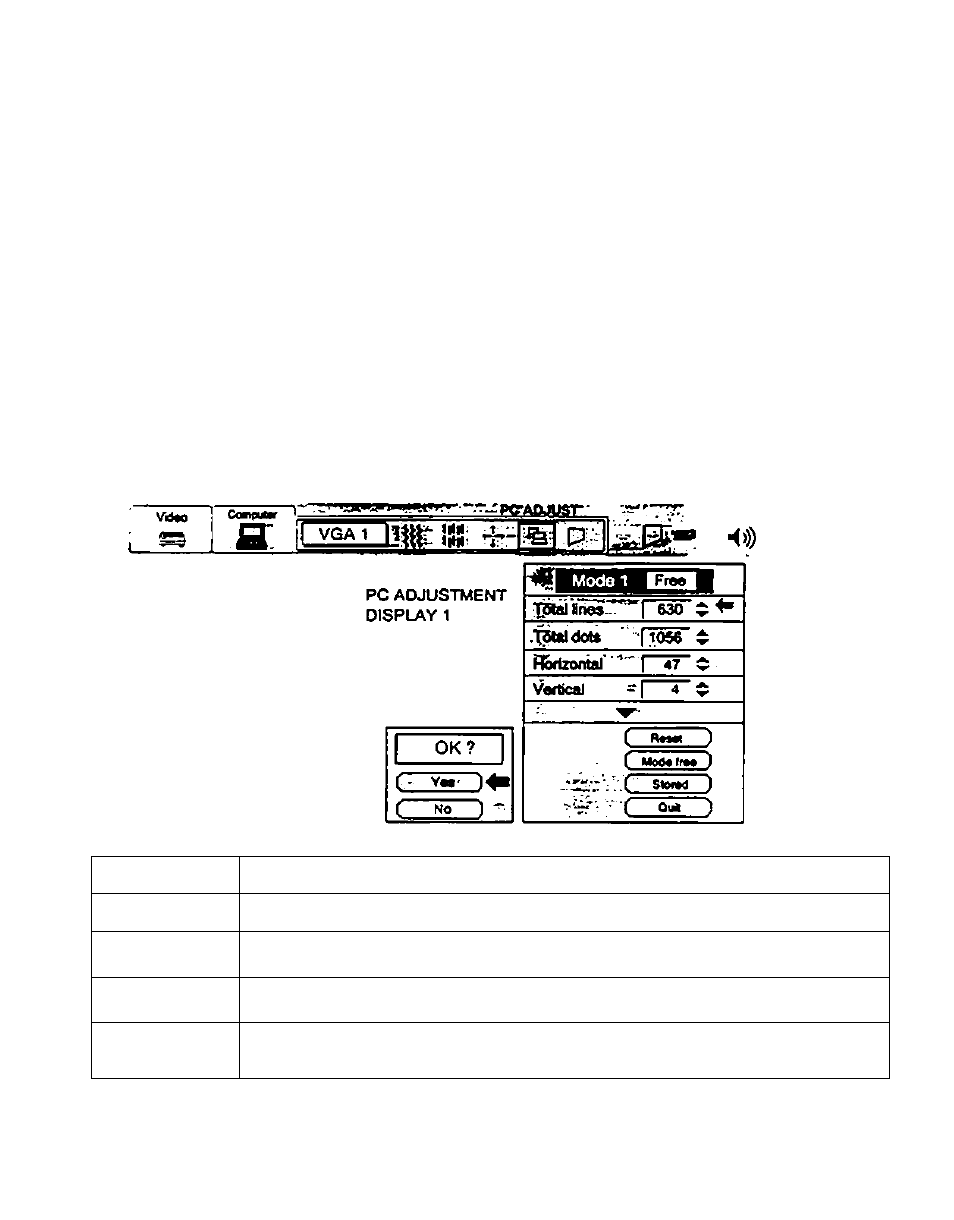

MAIN MENU DISPLAY
1
ITEM
FUNCTION
TOTAL UNES
The number of the total vertical ines. Adjust the number to match your PC image.
TOTAL DOTS
The number of the total dots in one horizontal period. Adjust the number to match your
PC Image.
HORIZONTAL
Adjustment of the horizontal picture position. When the image is not centered on the
screen, adjust this.
VERTICAL
Adjustment of the vertical picture position. When the image is not centered on the screen,
adjust this.
