Appendix 3 — Exploded Views and Parts Lists

QUIETPACT™ 75D Recreational Vehicle Generator

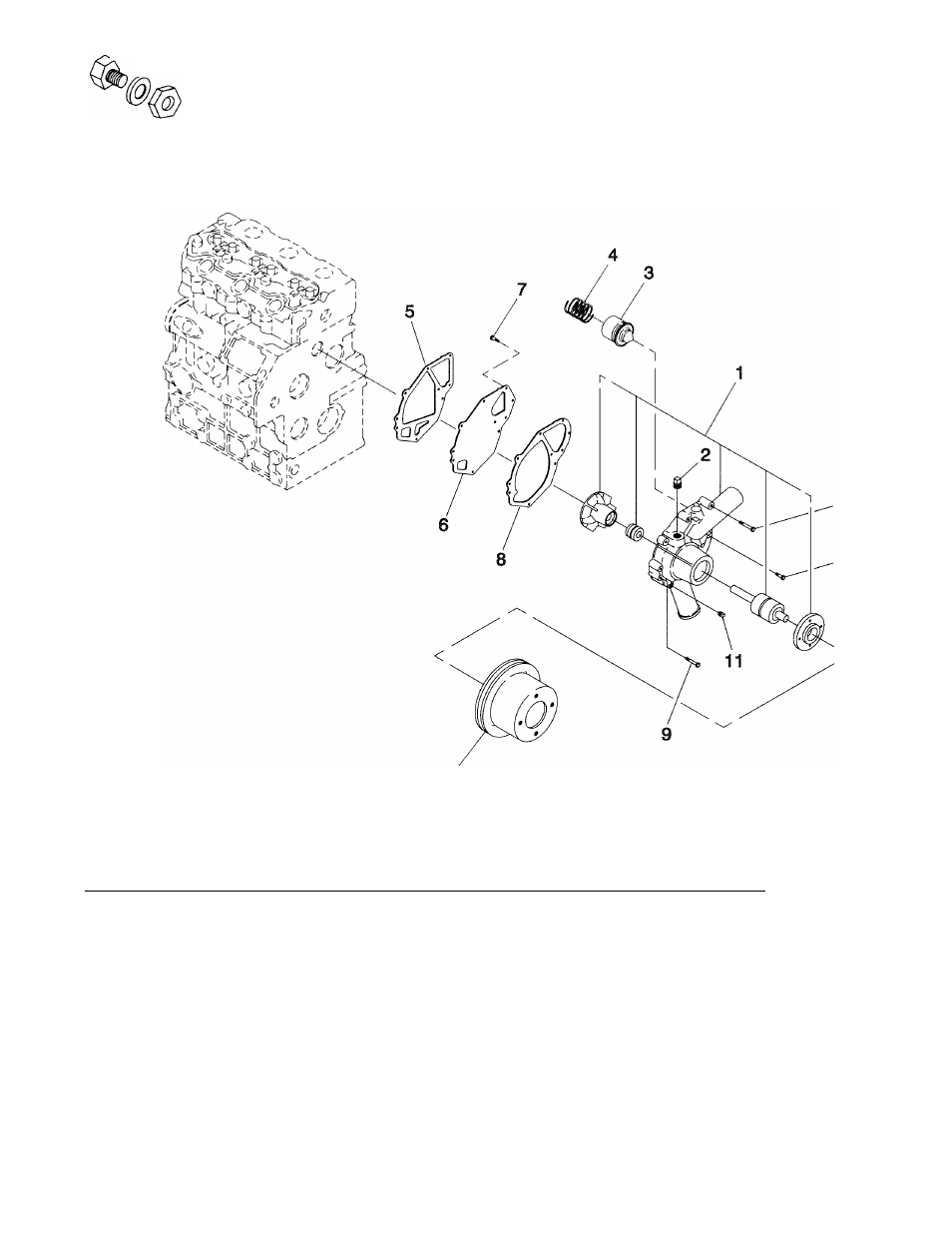

1.0 Liter Diesel Water Pump - Drawing No. 82962

10

15

12

ITEM PART NO.

QTY. DESCRIPTION

ITEM PART NO.

QTY.

DESCRIPTI

1

265-70939

1

WATER PUMP ASSEMBLY

8

272-70939

1

GASKET

2

266-70939

1

PLUG

9

273-70939

1

BOLT

3

267-70939

1

THERMOSTAT

10

274-70939

1

BOLT

4

268-70939

1

SPRING

11

275-70939

1

NUT

5

269-70939

3

GASKET

12

247-70939

1

PULLEY

6

270-70939

1

SET PLATE

15

284-70939

1

BOLT

7

271-70939

1

BOLT

BO Generac* Power Systems, Inc.
