Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

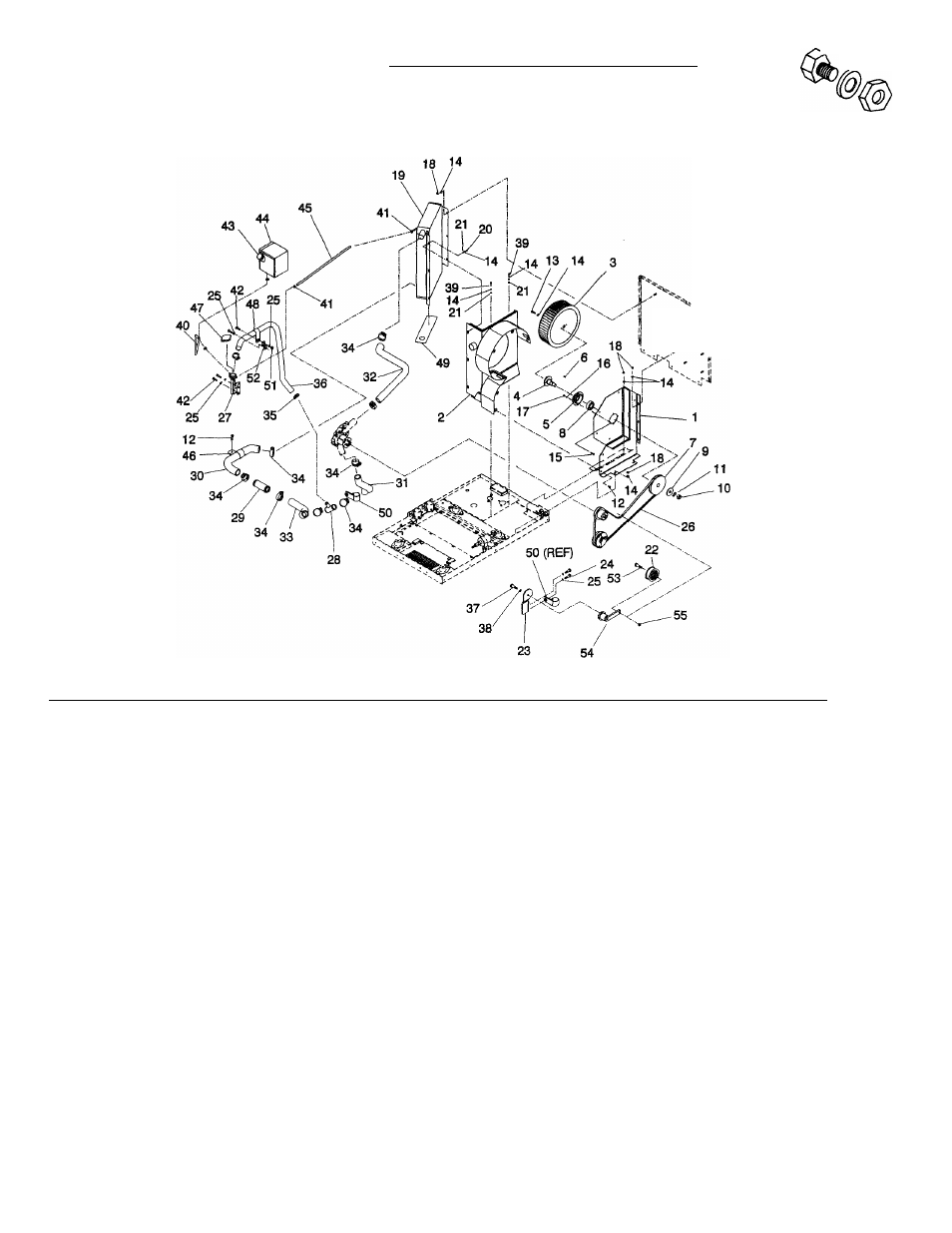

Cooling System - Drawing No. C7654-B
..PARTS
LISTS
i II
ti--' II
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 C4551 1 COVER PLATE, SCROLL WELDMENT 28 C6236 1 HOSE TEE
2 C4550 1 HOUSING, FAN SCROLL 29 C7384 1 COUPLING, HOSE
WELDMENT 30 C5543 1 HOSE, RADIATOR LOWER
3 C4552 1 FAN, SQUIRREL CAGE 31 C4460 1 HOSE, WATER PUMP LOWER
4 C4554 1 SHAFT, FAN 32 C4845 1 HOSE, TOP
5 C4555 1 CARRIER, BEARING 33 C5544 1 HOSE, LOWER INTERMEDIATE
6 C4557 1 KEY, SQUARE 3/16X3/16X1/2 34 86133A 8 HOSE CLAMP HI TRQ 1-3/4 MAX
7 C4556 1 PULLEY, FAN 4 7/8 35 57822 2 HOSE CLAMP #8
8 C4553 1 BEARING 2 ROW BALL 36 50968 720MM HOSE, 3/4 SAE-20R3
9 49869 1 FENDER WASHER M16 37 42911 1 M10-1.5X30MM HHCS
10 81810 1 NUT, HEXM16.0-1.5MM 38 46526 1 M10 LOCKWASHER
11 70265 1 LOCKWASHER M16.0 39 47411 2 HHCS M6-1.00X16MM
12 58443 7 CRIMPTITE, 1/4’’-20 X 5/8” 40 C7997 270MM HOSE, 5/16 SAE-20R4
13 43146 2 HHCS M6-1.00X10MM 41 C7649 4 HOSE CLAMP 7/8 3/8
14 22097 19 WASHER, SPLIT LK 1/4- M6 42 42907 4 HHCS M8-1.25X 16MM
15 49815 4 HHCS M5-0.8X16MM 43 C5605 1 CAP, COOLANT FILL
16 22152 4 WASHER, SPLIT LK #10 44 C6976 1 TANK, COOLANT OVERFLOW
17 51716 4 HEX NUT M5 45 C7997 510MM HOSE 5/16 SAE-20R4
18 49813 12 NUT, HEX M6.0-1.0MM 46 55934K 1 CLAMP, VINYL COATED 1 5/8
19 C4312 1 RADIATOR 1.0LRV 47 C4976 1 CAP, RADIATOR PRESSURE
20 43116 3 HHCS M6-1.00X12MM 48 55934D 1 CLAMP, VINYL COATED 1 1/16
21 22473 5 WASHER y4-M6 49 C7040 1 GASKET, RADIATOR BASE
22 C8643 1 PULLEY, 3” FLAT FLANGED 50 55934V 1 CLAMP, VINYL COATED 1 '/2
23 C8507 1 BRACKET, ROTARY TENSIONER 51 45771 1 NUT HEX M8-1.25
24 39253 2 HHCS M8-1.25X20 52 C5105 1 BRACKET, SUPPORT
25 22129 6 WASHER, SPLIT LK -M8 53 24426 1 1/2”-13X 1-3/4” HHCS
26 C6549A 1 61" GREEN BELT 54 C8643 1 TENSIONER, SE-18-3”
27 C5108 1 FILLER NECK ASSEMBLY,
RADIATOR REMOTE 55 48705 1 1/2"-13 FLANGE NUT
MM = MILLIMETERS
