Appendix 5 — Exploded Views and Parts Lists
^PARTS
LISTS
QUIETPACT™ 75D Recreational Vehicle Generator

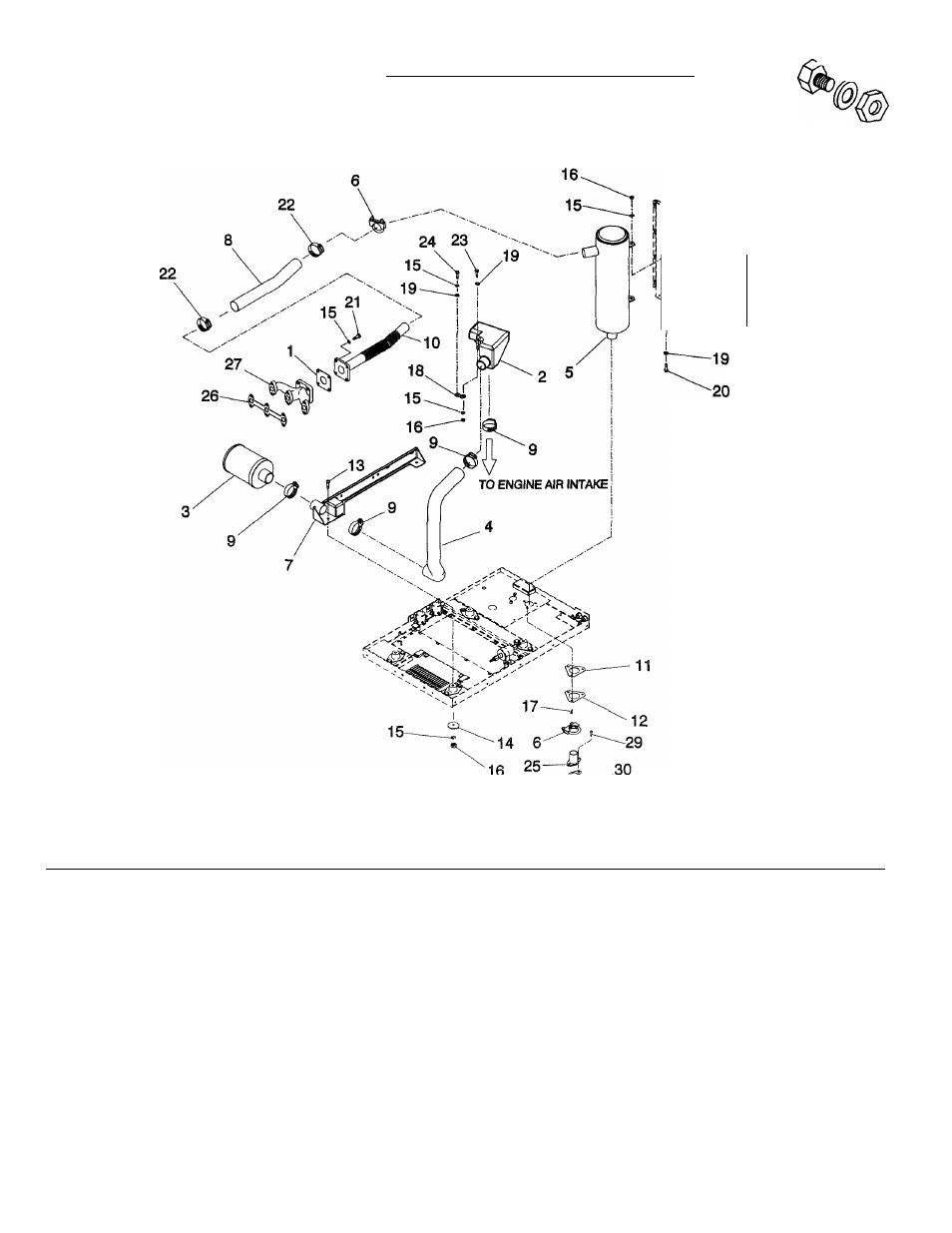

Intake and Exhaust System - Drawing No. C7656-A
J3 s
j d |l
r'
1 ^ i ! '
|l
i
1 j
It
^ ll
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 75674 1 EXHAUST GASKET 18 C5105 1 BRACKET, SUPPORT
2 C4879 1 CHAMBER AIR INTAKE 19 22145 4 WASHER, FLAT - M8
3 C4880 1 AIR FILTER 20 39253 2 HHCS M8-1.25 X 20
4 C5493 1 HOSE, AIR INLET 21 43107 4 HHCS M8-1.25 X 25
5 C4727 1 MUFFLER WELDMENT 22 35586 2 HOSE CLAMP #20
6 25145 2 U BOLT & SADDLE 1.25 23 42909 1 HHCS M8-1.25 X 30
7 C4539 1 RAIL, ENGINE LH, WELDMENT 24 42907 1 HHCS M8-1.25 X 16
8 C5022 1 INSULATION, EXHAUST 25 77642 1 ADAPTOR, EXHAUST FLANGE
9 35685 4 HOSE CLAMP #28 BOTTOM OUT
10 C4878 1 OUTLET, EXHAUST FLEX 26 357-70939 1 MANIFOLD GASKET
11 C6243 1 GASKET, EXHAUST OUTLET 27 75673 1 HORIZONTAL EXHAUST MANIFOLD
12 C6244 1 PLATE, EXHAUST OUTLET 28 A8543 1 ADAPTOR, UNIVERSAL EXHAUST
13 39288 2 HHCS M8-1.25X55 29 68527 2 HHCS M6-1 X 20 W/LOCKWASHER
14 71956 2 WASHER, VIBRATION ISOLATOR 30 22097 2 WASHER, SPLIT LK M6
15 22129 10 WASHER, SPLIT LK -M8 31 49813 2 NUT, HEX M6-1
16 45771 5 NUT, HEX M8-1.25 32 77643 1 GASKET, EXHAUST FLANGE
17 58443 3 CRIMPTITE, y4"-20 X 5/8”
