Appendix 5 — Exploded Views and Parts Lists
^PARTS
LISTS
QUIETPACT™ 75D Recreational Vehicle Generator

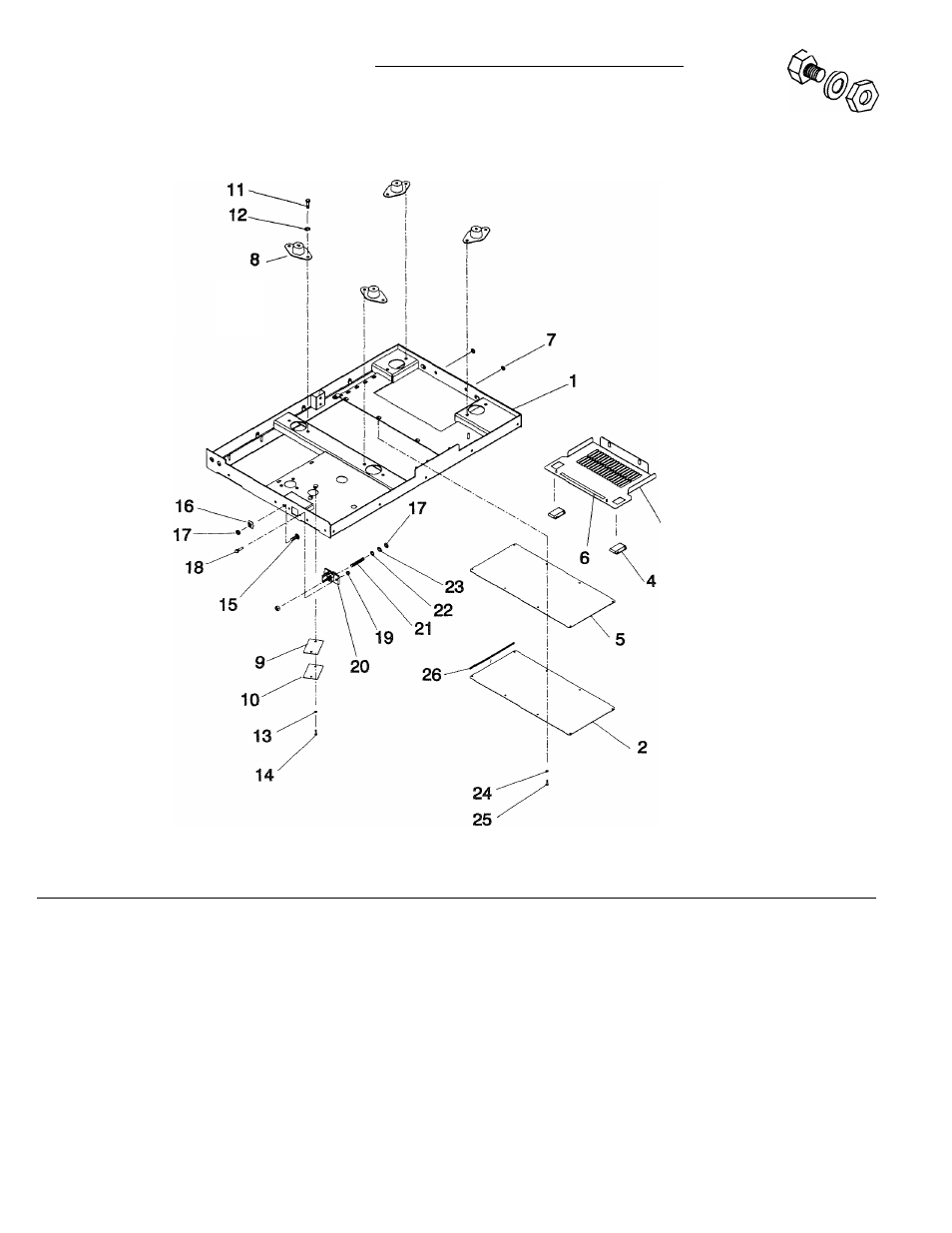

Base Frame - Drawing No. C7652
ITEM PART NO.
QTY. DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
C6950
1
BASE FRAME WELDMENT
16
A4456
1
3/8 SPECIAL LOCK WASHER
2
C5087
1
DOOR, SERVICE REAR
17
76821
2
HEX NUT 3/8-16 BRASS
3
C5088
1
DOOR, SERVICE FRONT
18
47411
2
HHCS M6-1.00 X 16
4
C5644
2
SLIDE LATCH FLUSH
19
52857
2
NUT, LOCKING M6.0 -1
5
C5712
1
GASKET , SERVICE DOOR REAR
20
C5443
1
BLOCK, TERMINAL BATTERY POST
6
29451
220MM
RUBBER TAPE 1/8 X Vz”
21
C7423
1
STUD 3/8-16 X 55MM
7
C7857
2
GROMMET 1/8 X 13/32
22
22131
1
WASHER 3/8 FLAT
8
70936
4
VIBRATION MOUNT
23
22237
1
WASHER SPLIT LK -3/8
9
C6721
1
GASKET, CLEANOUT
24
22264
8
LOCKWASHER #8 -M4
10
C6722
1
PLATE, CLEANOUT
25
51718
8
HHCS M4-0.7X 10
11
42907
8
HHCS M8-1.25X 16
26
56326
2
VINYL TRIM -BLACK 180MM
12
22129
8
WASHER, SPLIT LK- M8
13
22097
1
WASHER, SPLIT LK -1/4-M6
14
43146
2
HHCS M6-1.00 X 10
MM = MILLIMETRES
15
C7561
1
CARRIAGE BOLT 3/8 -16 X 55MM
Generac* Power Systems, Inc. 43
