Appendix 3 — Exploded Views and Parts Lists

^PARTS

LISTS

QUIETPACT™ 75D Recreational Vehicle Generator

1.0

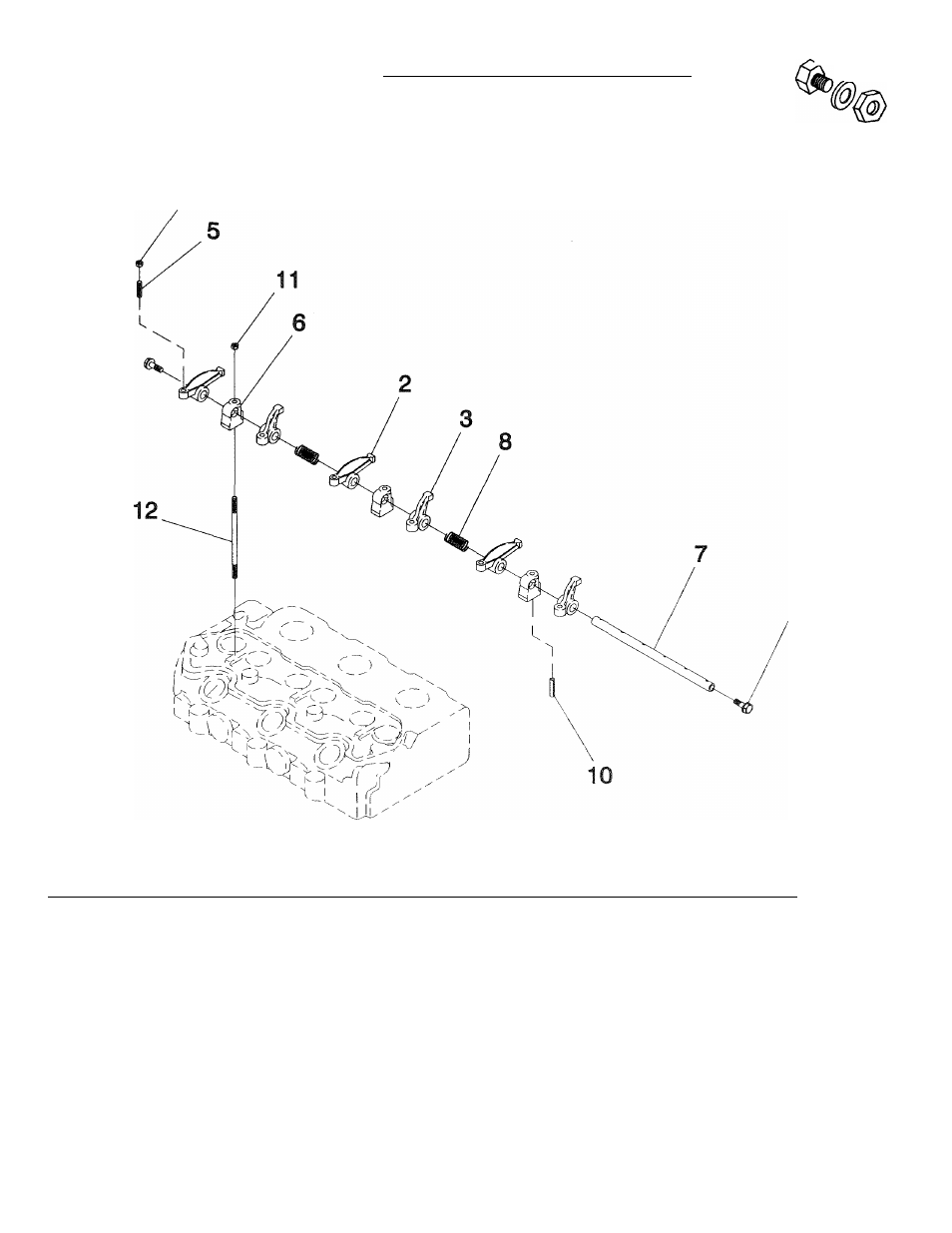

Liter Diesel Rocker Arm Assembly - Drawing No. 75683

ITEM PART NO.

QTY. DESCRIPTION

ITEM PART NO.

QTY.

DESCRIPTION

1

170-70939

1

ROCKER

ARM

ASSEMBLY

7

176-70939

1

ROCKER ARM SHAFT

2

171-70939

3

INTAKE ROCKER ARM

8

177-70939

2

SPRING

3

172-70939

3

EXHAUST ROCKER ARM

9

178-70939

2

SCREW

4

174-70939

6

NUT

10

179-70939

3

SPRING,PIN

5

173-70939

6

STUD

11

180-70939

3

NUT

6

175-70939

3

ROCKER ARM BRACKET

12

181-70939

3

STUD

Generac* Power Systems, Inc. 5S
