Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

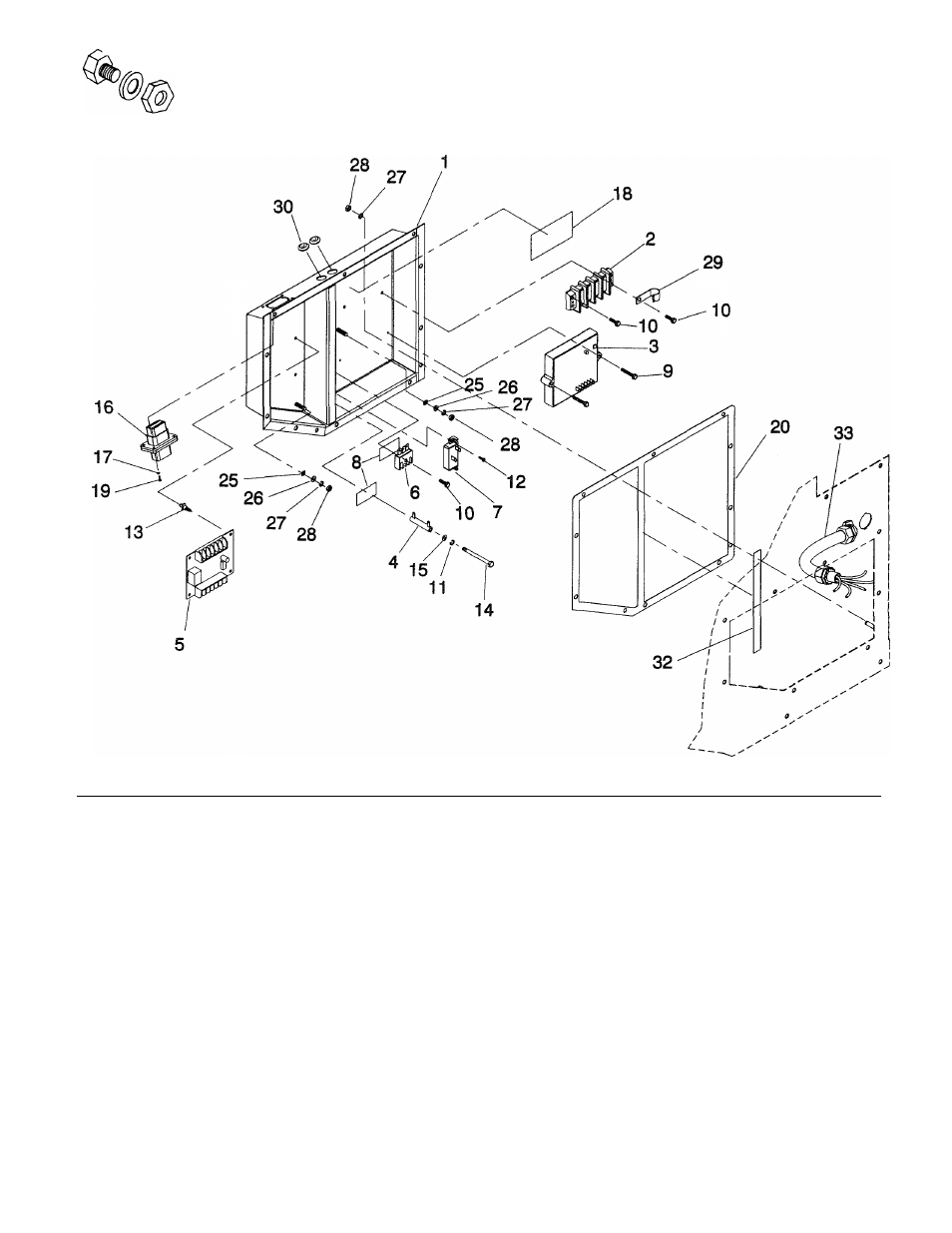

Electrical Enclosure Assembly - Drawing No. C7655-B
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 C6878 1 WELDMENT, ELECTRICAL 19 C3992 4 TAPTITE, SCREW
ENCLOSURE 20 C6359 1 GASKET, ELECTRICAL ENCLOSURE
2 71914 1 TERMINAL BLOCK 4 POSITION 21 C6712G* 1 WIRE ASSEMBLY # 32
3 83048 1 ASSEMBLY, POTTED REGULATOR 22 C6712F* 1 WIRE ASSEMBLY #22
4 C7610 1 RESISTOR 20R 5% 12W 23 C6712D* 1 DIODE ASSEMBLY
5 93642 1 ASSEMBLY MARINE CONTROL 24 C6712E* 1 WIRE ASSEMBLY #162
BOARD 25 A1658 2
'/4 SPECIAL LOCKWASHER
6 65795 1 RECTIFIER, BATTERY CHARGING 26 22473 2 WASHER, FLAT 'A-MQ
7 48512 1 CIRCUIT BREAKER 5 AMP 27 22097 7 WASHER, SPLIT LK '/ 4 -M 6
8 27565 A/R TAPE, GLASS INSULATED 28 49813 7 NUT, HEX M6-1
9 66849C 2 TAPTITE, M5-0.8 X 30 29 82121A 1 CLAMP, OPEN TYPE
10 66849 3 TAPTITE, M5-0.8 X 16 30 22717B 2 GROMMET
11 49226 1 LOCKWASHER M5 32 C7390 1 GASKET, ELECTRICAL ENCLOSURE
12 33134 2 HHMS, #6-32 X 1 / 2 “ DIVIDER
13 40213 4 PCB SUPPORT SNAP -IN 33 C7487 1 HARNESS, AC OUTPUT
14 C8620 1 HHMS, #8-32 X 2.25"
15 51713 1 WASHER, FLAT M5 A/R = AS REQUIRED
16 C6712A 1 HARNESS * NOT SHOWN REFER TO WIRING DIAGRAM C4946
17 22985 4 WAHSER, FLAT #6
18 C7022 1 DECAL, CUSTOMER CONNECTION
