^PARTS
LISTS
Appendix 5 — Exploded Views and Parts Lists
QUIETPACT" 75D Recreational Vehicle Generator

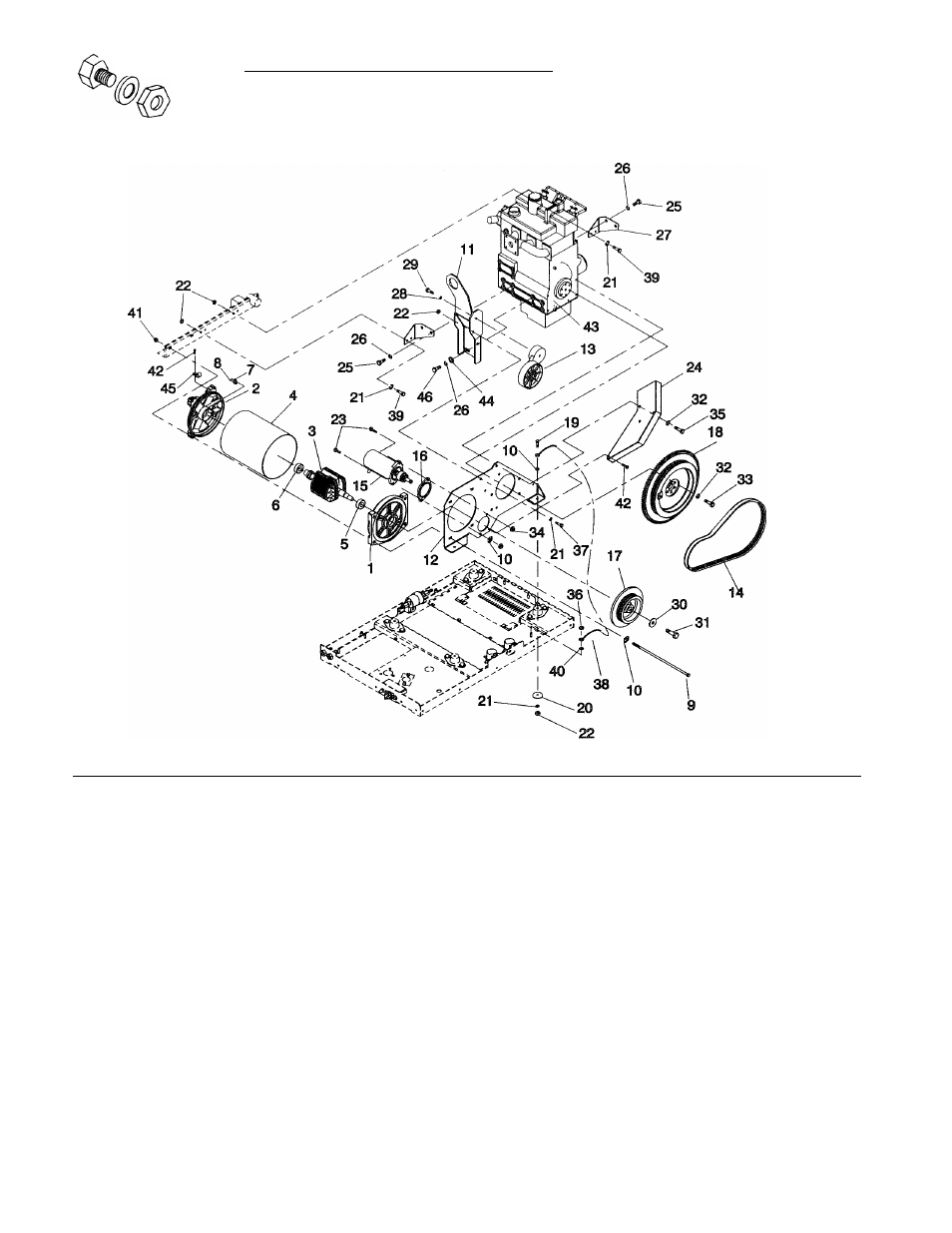

Engine, Alternator Drive and Starter Assembly - Drawing No. C7651
ITEM PART NO.
QTY. DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
C5598
1
BEARING CARRIER, FRONT
24
C7933
1
GUARD, FLYWHEEL
2
72379B
1
BEARING CARRIER, UPPER
25
68485
4
HHCS M12-1.25X20
3
C6055H
1
ROTOR ASSEMBLY
26
51769
6
WASHER, SPLIT LK-M12
4
C6054H
1
STATOR ASSEMBLY
27
C4537
2
ENGINE BRACKET
5
31971
1
BALL BEARING
28
22237
1
WASHER, SPLIT LK -3/8
6
73159
1
BALL BEARING
29
22511
1
HHCS 3/8-16 X 11/2
7
66386
1
BRUSH HOLDER
30
49451
1
FENDER WASHER 7GA
8
66849
2
TAPTITE M5-0.8X 16
31
42633
1
HHCS 3/8-24 X 1 "
9
C6862
4
BOLT , STATOR
32
46526
11
LOCKWASHER MIO
10
C3168
6
5/16 SPECIAL LOCK WASHER
33
52212
6
HHCS M10-1.25X25
11
C5014
1
LUG, LIFT
34
69673J
2
5/16 FLANGE NUT
12
C4538
1
RAIL, ENGINE RH
35
51756
5
HHCSM10-1.25X20
13
C4544
1
ROTARY TENSIONER 4.5“
36
49813
1
M6 HEX NUT
14
C5298
1
BELT, V-RIB
37
43107
2
HHCS M8-1.25 X 25
15
20692
1
STARTER MOTOR
38
21991
1
EARTH STRAP
16
C4841
1
SPACER, STARTER
39
39253
4
HHCS M8-1.25 X 20
17
73106G
1
PULLEY, ALTERNATOR
40
A1658
1
% SPECIAL LOCK WASHER
18
C6363
1
FLYWHEEL ASSEMBLY
41
67989
4
M8 FLANGE NUT
19
39288
2
HHCS M8-1.25X 55
42
Cl 069
3
TAPTITE, M6-1.0X8
20
71956
2
WASHER, VIBRATION ISOLATOR
43
C6609
1
ENGINE, 1.0L DIESEL
21
22129
8
WASHER, SPLIT LK -M8
44
49808
2
WASHER. FLAT Ml2
22
45771
8
NUT, HEX M8-1.25
45
55934M
1
CLAMP, VINYL COATED, Y4
23
40250
2
SHCS 5/16-18 X 11/2
46
A7043
2
HHCSM12-1.25X25
43
