Appendix 3 — Exploded Views and Parts Lists
QUIETPACT” 75D Recreational Vehicle Generator
1.0

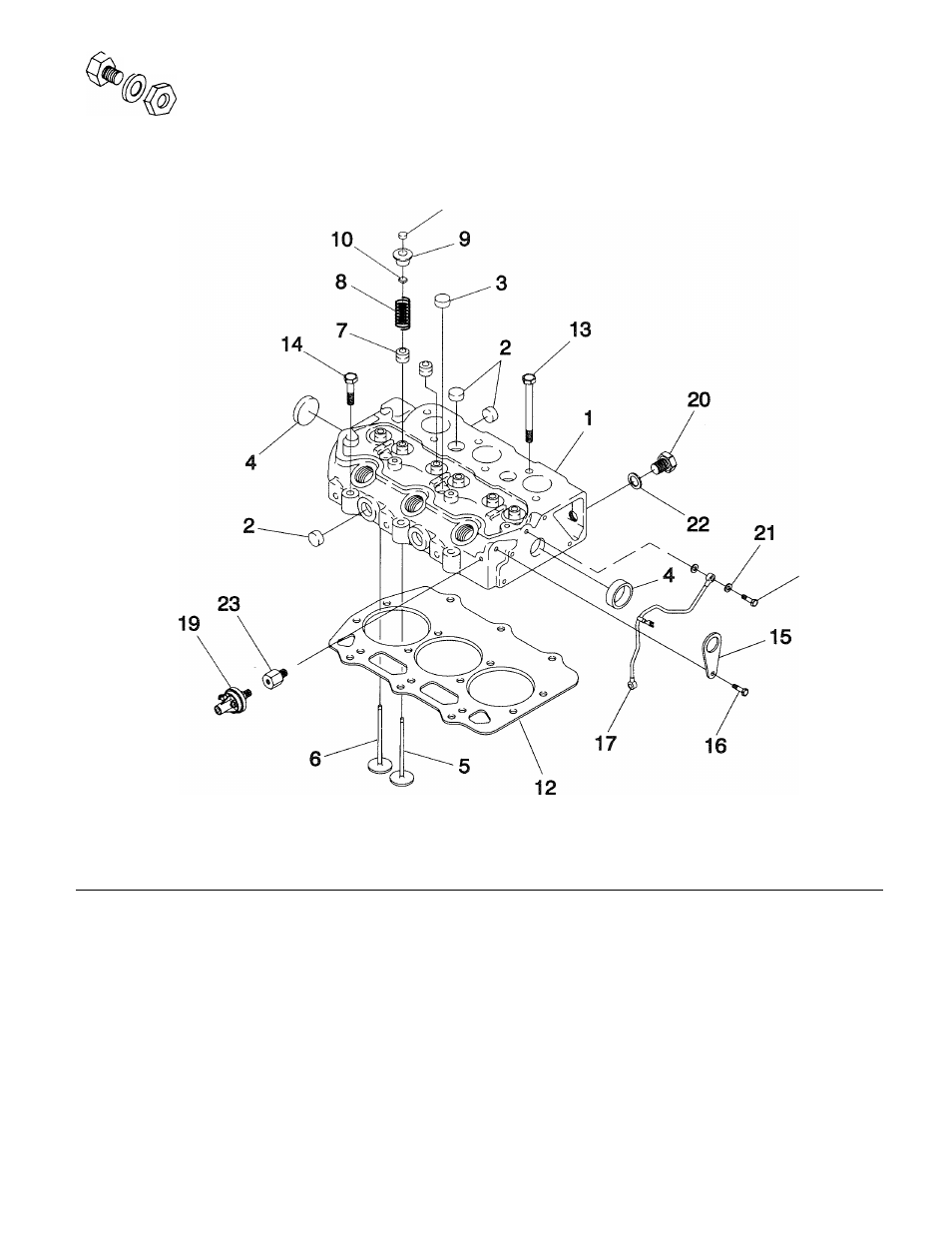

Liter Diesel Cylinder Head - Drawing No. 75678-A
11
18
ITEM PART NO.
QTY.
DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
147-70939
1
CYLINDER HEAD ASSEMBLY
13
160-70939
11
BOLT
2
148-70939
6
EXPANSION PLUG
14
161-70939
3
BOLT
3
447-70939
3
EXPANSION PLUG
15
162-70939
2
LIFTING EYE
4
149-70939
2
EXPANSION PLUG
16
163-70939
2
BOLT
5
150-70939
3
INTAKE VALVE
17
164-70939
1
TUBING
6
151-70939
3
EXHAUST VALVE
18
165-70939
2
BOLT
7
152-70939
3
VALVE GUIDE SEAL (EXHAUST)
19
A8584
1
OIL SWITCH
153-70939
3
VALVE GUIDE SEAL (INTAKE)
20
167-70939
1
THERMO-SWITCH
8
154-70939
6
SPRING
(ALL MODELS EXCEPT 04270)
9
155-70939
6
RETAINER
C8010
1
THERMO-SWITCH
10
156-70939
12
KEY
(MODEL 04270 ONLY )
11
157-70939
6
CAP
21
168-70939
4
GASKET
12
158-70939
1
CYLINDER HEAD GASKET,
22
169-70939
1
WASHER
1.2MM THICK
23
42574
1
ADAPTOR
159-70939
1
CYLINDER HEAD GASKET,
1.3MM THICK
