ELECTRICAL
DATA
Appendix 2 — Electrical Data
QUIETPACF“ 75D Recreational Vehicle Generator

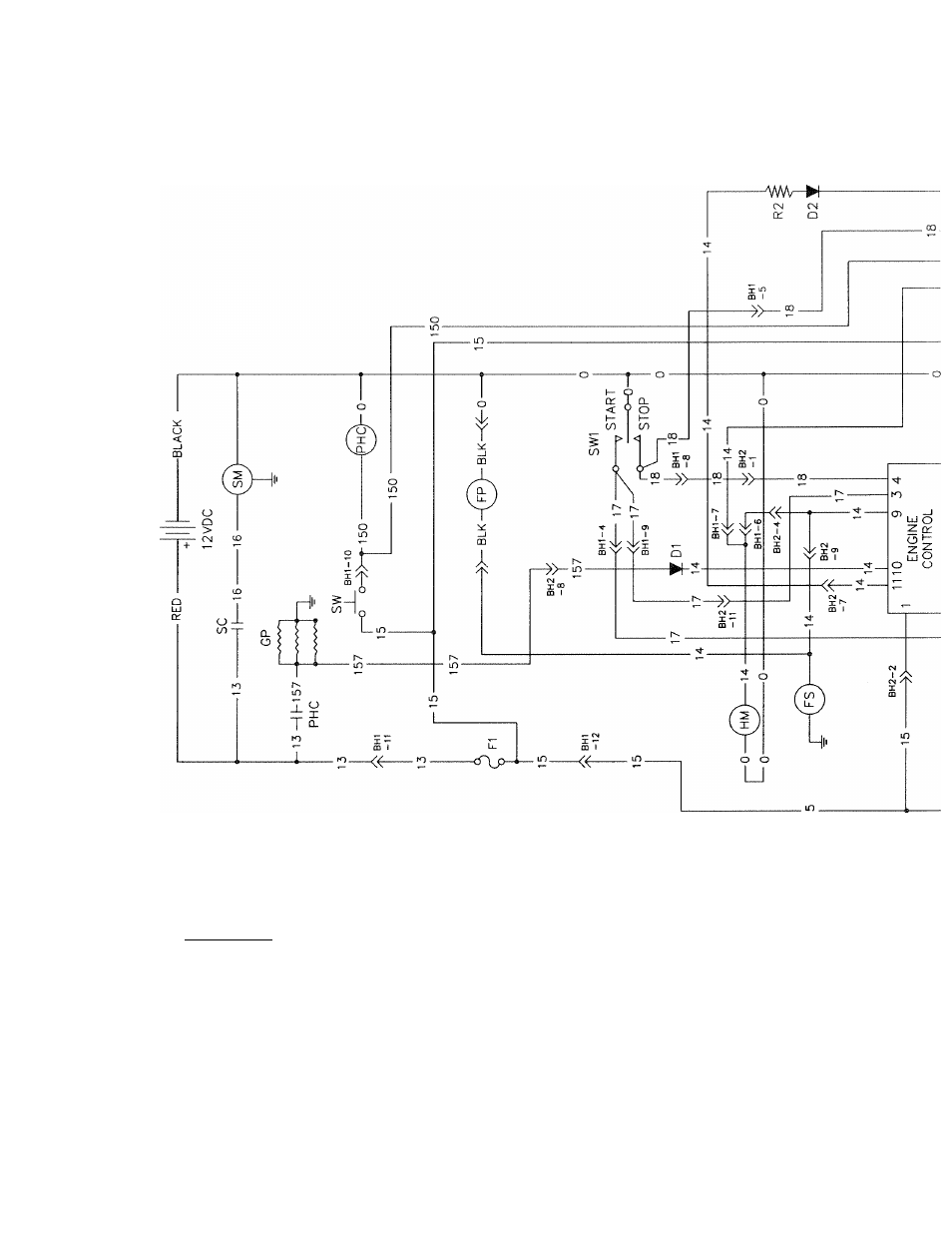

Electrical Schematic - Drawing No. - C4945
LEGEND
AVR -AUTOMATIC VOLTAGE REGULATOR
BCR -BATTERY CHARGE RECTIFIER
BCW -BATTERY CHARGER
CB1 -CIRCUIT BREAKER 35A
CB2 -CIRCUIT BREAKER (4A)
D1 -DIODE 600V, 6AMP
D2 -DIODE 600V, 6AMP
DPE -EXCITATION WINDING
F1 -FUSE 14AMP SFE
FS -FUEL SOLENOID
FP -FUEL PUMP
GP -GLOW PLUGS
HM —HOURMETER
HWT -HIGH WATER TEMP SWITCH
LOS -LOW OIL PRESSURE SWITCH
PHC -PREHEAT CONTACTOR
R1 -RESISTOR, 1 OHM, 25W
R2 -RESISTOR 10 OHM, 5W
S -STARTER
SC -START CONTACTOR
SW -PREHEAT SWITCH
SW1 -SWITCH, START/STOP
40 Generac® Power Syst:ems, Inc.
