ELECTRICAL

DATA

Appendix

—

Electrical Data

QUIETPACT“ 75D Recreational Vehicle Generator

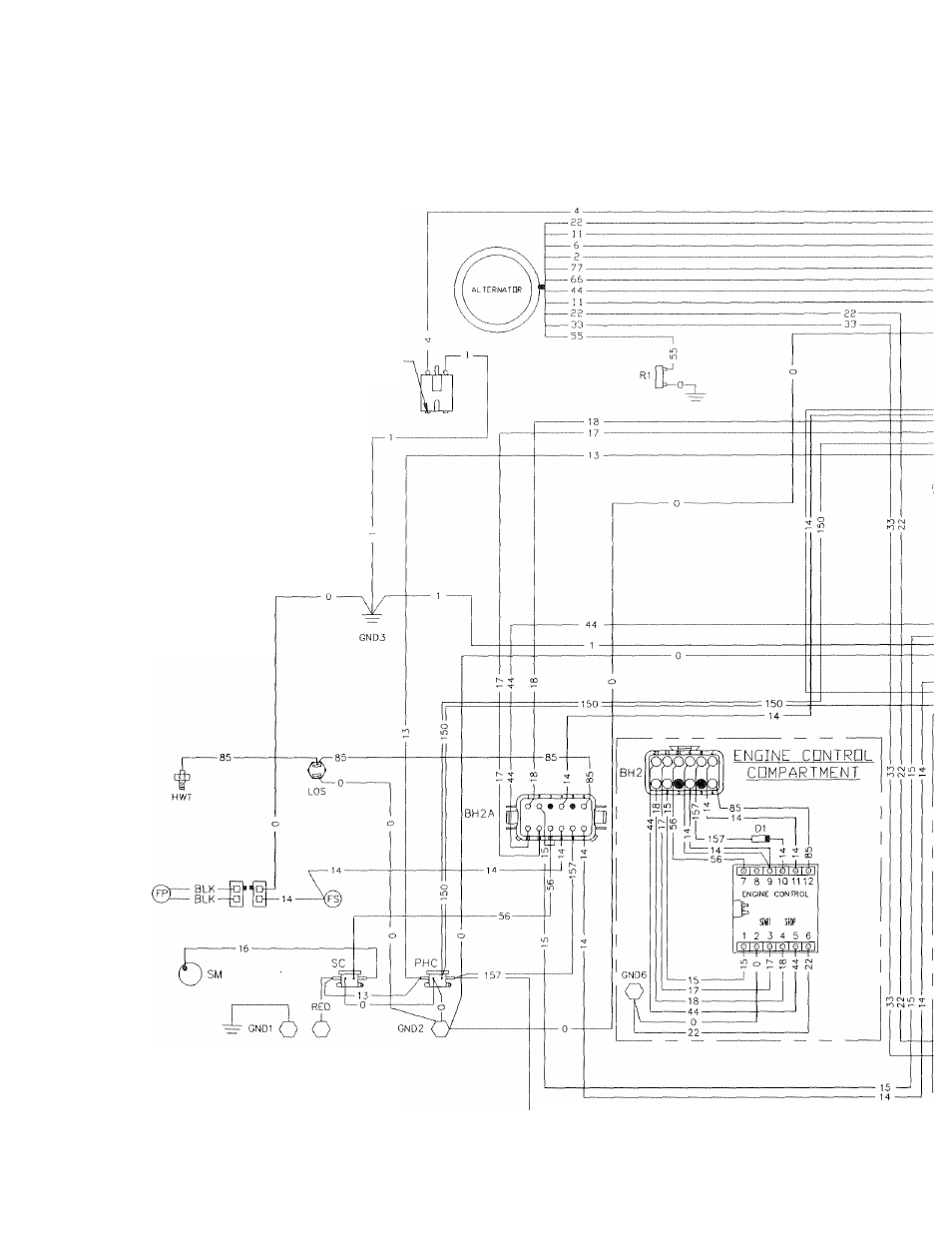

Wiring Diagram - Drawing No. C4946-

_.EGEND

BRUSH WITH RED(4) LEAD

CLOSEST TO BEARING

AVR -
BCR -
BH1 -
BH1A-
BH2 -
BH2A-
CB1 -
CB2 -
C0NN1
D1

n -

GND1-
GND2-
GND3-
GND4-
GND5-
GND6-
HV^

LOS -
PHC -
R1

SW1 --
SW2

IS -

AUTOMATIC VOLTAGE REGULATOR
BATTERY CHARGER RECTIFIER

BULK HEAD CONNECTOR. RECEPTACLE (BLACK)

BULK HEAD CONNECTOR. PLUG (BLACK)
BULK HEAD CONNECTOR, RECEPTACLE (GRAY)

BULK HEAD CONNECTOR. PLUG (GRAY)

CIRCUIT BREAKER 35A

CIRCUIT BREAKER 4A

CUSTOMER REMOTE CONNECTION

DIODE 600V, 6AMP

FUSE I4AMP SFE

FUEL PUMP
FUEL SOLENOID

ENGINE GROUND

frame

STUD

GROUND (BEARING CARRIER)
THRU BOLT (CONTROL PANEL)
GROUND STUD (NON-SEALED COMP)
GROUND STUD (SEALED COMP)
HIGH WATER TEMP SWITCH
HOURMETER

LOW OIL PRESSURE SWITCH

PREHEAT CONTACTOR

RESISTOR, 1 ohm 25W

RESISTOR 10 ohm, 5W
START CONTACTOR

STARTER MOTOR
SWITCH START/STOP

- PREHEAT SWITCH

TERMINAL STRIP
CUSTOMER CONNECTION

12V

BATTERY

CONNECTION

CUSTOMER PROVIDED

O O 0

GLOW PLUGS
