^PARTS
LISTS

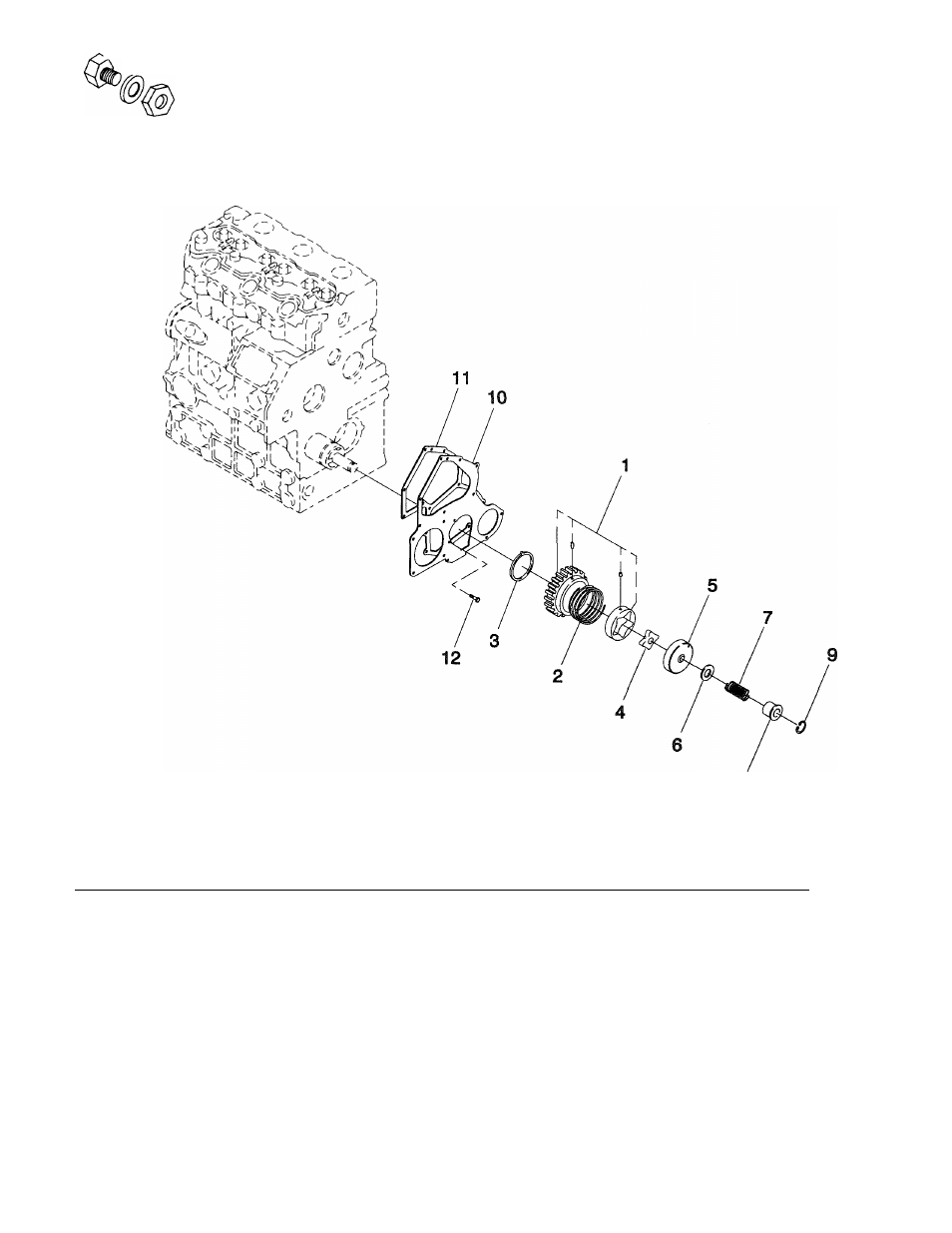

Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator
1.0
Liter Diesel Oil Pump - Drawing No. 75682
8
ITEM PART NO.
QTY.
DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
250-70939
1
IDLER GEAR ASSEMBLY
7
259-70939
1
SPRING
2
252-70939
1
SPRING
8
260-70939
1
COLLAR
3
251-70939
1
THRUST WASHER
9
261-70939
1
SNAP RING
4
253-70939
1
ROTOR
10
262-70939
1
FRONT PLATE
5
254-70939
1
OIL PUMP COVER
11
263-70939
1
GASKET
6
255-70939
AR
0.10MM SHIM
12
264-70939
3
BOLT
532-70939
AR
0.15MM SHIM
533-70939
AR
0.20MM SHIM
258-70939
AR
0.50MM SHIM
AR - AS REQUIRED
