Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

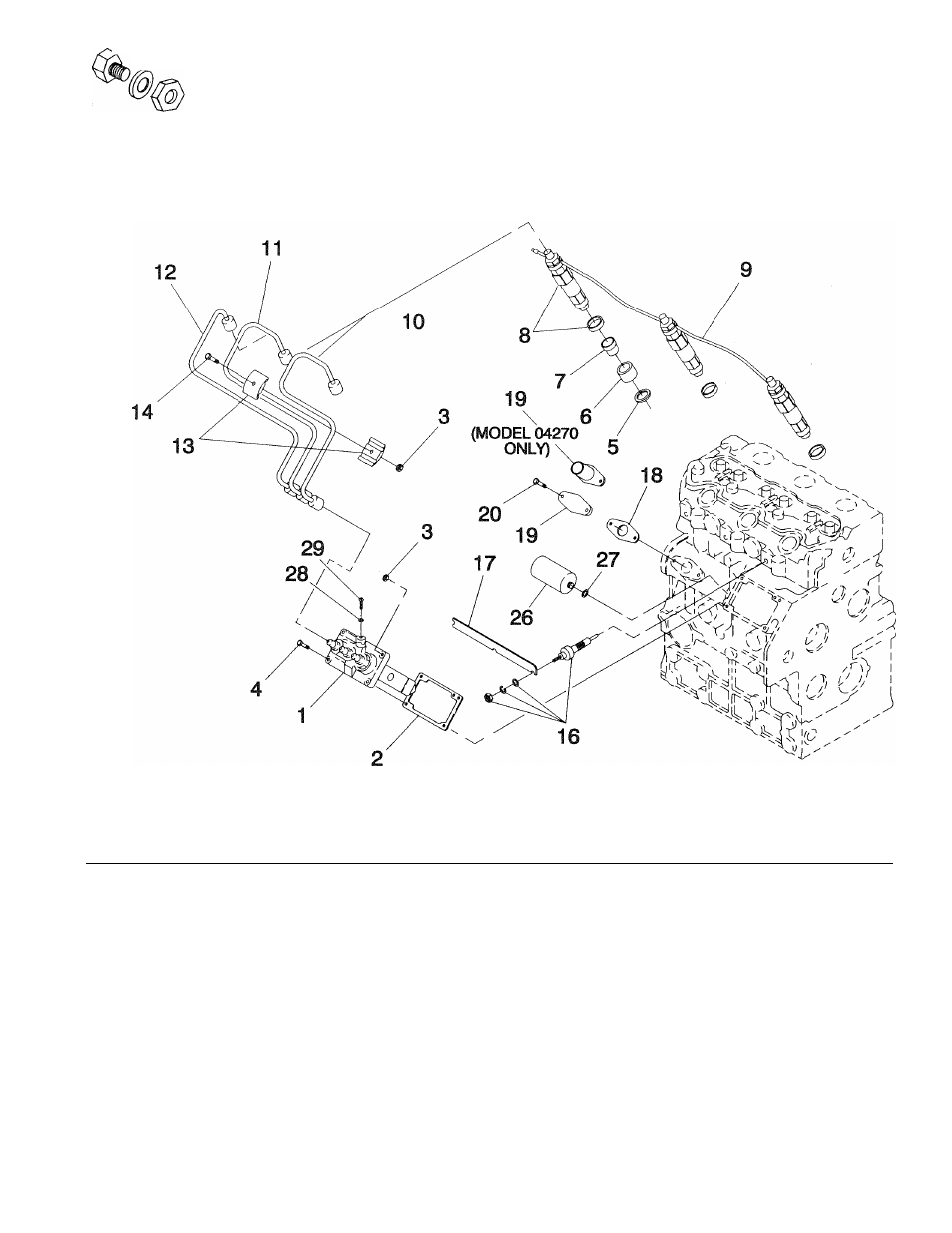

1.0 Liter Diesel Injector Pump - Drawing No. 75686-B
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 316-70939 1 INJECTOR PUMP ASSEMBLY 13 330-70939 1 CLAMP
2 317-70939 AR SHIM-0.2MM 14 331-70939 1 BOLT
318-70939 AR SHIM-0.3MM 16 332-70939 3 GLOW PLUG
319-70939 AR SHIM-0.5MM 17 333-70939 1 CONNECTOR
320-70939 AR SHIM-1.OMM 18 334-70939 1 GASKET
3 298-70939 3 NUT 19 335-70939 1 COVER
4 321-70939 2 BOLT (ALL MODELS EXCEPT 04270)
5 322-70939 3 GASKET C4736 1 TUBE, ENGINE OIL FILL
6 323-70939 3 INSERT (MODEL 04270 ONLY)
7 324-70939 3 CAP 20 264-70939 2 BOLT
8 325-70939 3 INJECTOR 26 341-70939 1 SOLENOID
9 326-70939 1 TUBING 27 342-70939 1 WASHER
10 327-70939 1 TUBING 28 343-70939 1 WASHER
11 328-70939 1 TUBING 29 344-70939 1 SCREW
12 329-70939 1 TUBING
AR ■■ AS REQUIRED
