^PARTS
USTS
Appendix 3 — Exploded Views and Parts Lists
QUIETPACT"
75D Recreational Vehicle Generator

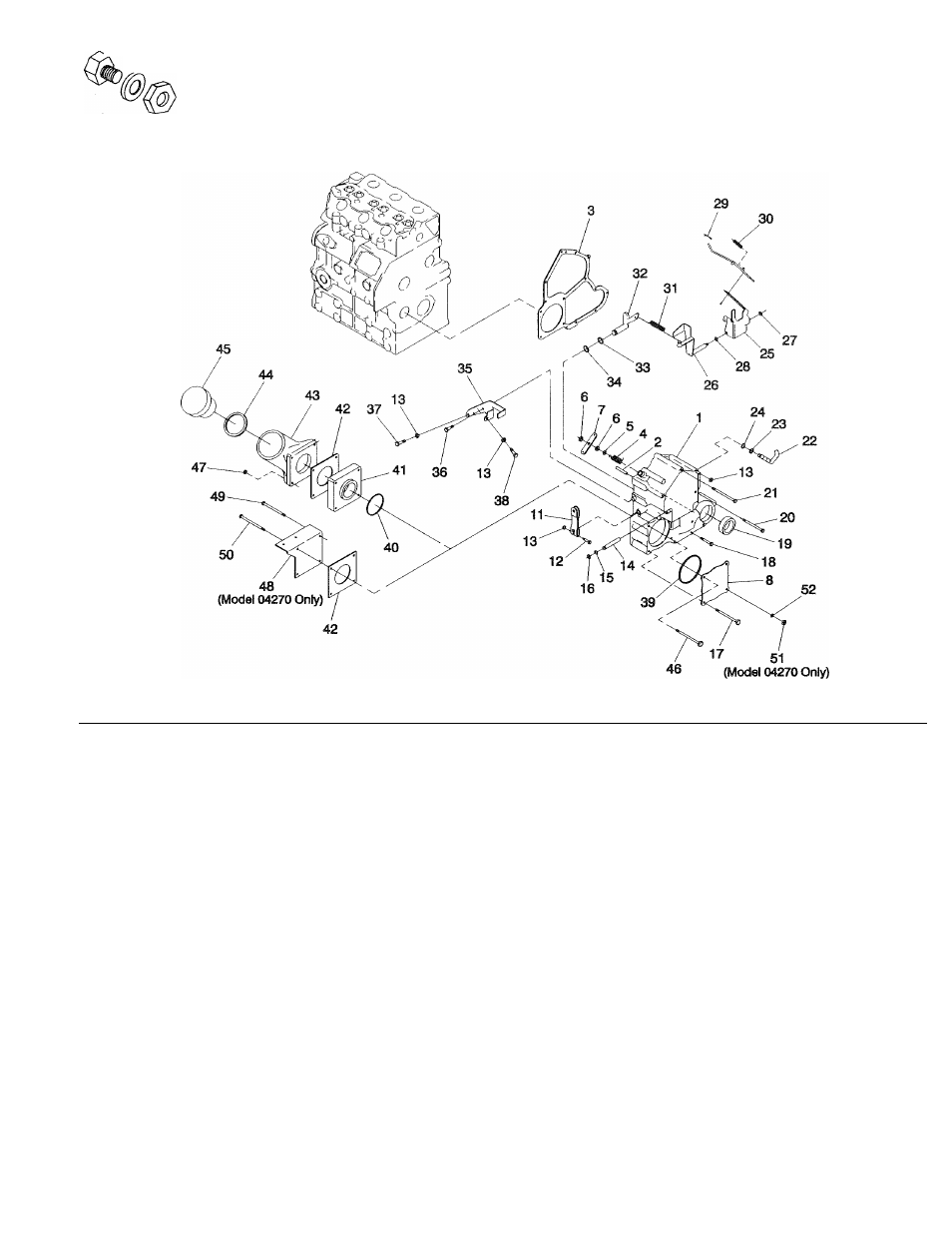

1.0 Liter Diesel Timing and Governor - Drawing No.
82067
ITEM PART NO.
QTY.
DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
285-70939
1
TIMING GEAR HOUSING
30
313-70939
1
SPRING
2
286-70939
1
SPRING PIN
31
293-70939
1
SPRING
3
287-70939
1
GASKET
32
294-70939
1
ARM
4
307-70939
1
SPRING
33
295-70939
1
0-RING
5
308-70939
1
WASHER
34
291-70939
1
SNAP RING
6
309-70939
2
NUT
35
302-70939
1
BRACKET
7
310-70939
1
STOP LEVER
36
271-70939
3
BOLT
8
314-70939
2
COVER
37
303-70939
2
BOLT
11
296-70939
1
GOVERNOR LEVER
38
71944
1
HHCS M6-1.0 X 25MM
12
297-70939
1
BOLT
39
660-70939
1
0-RING
13
298-70939
1
NUT
40
534-70939
1 *
0-RING
14
299-70939
1
SHAFT
41
535-70939
1 *
SPACER
15
300-70939
1
0-RING
42
536-70939
1
GASKET
16
301-70939
1
SNAP RING
43
537-70939
1 *
HOLDER (OIL FILL)
17
540-70939
3 *
BOLT
44
539-70939
1 *
0-RING
18
282-70939
5
BOLT
45
188-70939
1 *
CAP
19
288-70939
1
OIL SEAL
46
541-70939
1 *
BOLT
20
274-70939
4
BOLT
47
538-70939
3 *
NUT
21
311-70939
5
BOLT
48
C4888
1
BRACKET, FUEL FILTER (MODEL
22
304-70939
1
ARM
04270 ONLY)
23
305-70939
1
SNAP RING
49
51730
3
BOLT (MODEL 04270 ONLY)
24
306-70939
1
0-RING
50
52265
1
BOLT (MODEL 04270 ONLY)
25
289-70939
1
GOVERNOR LEVER ASSEMBLY
51
45771
4
NUT (MODEL 04270 ONLY)
26
290-70939
1
TENSION LEVER
52
22129
4
SPLIT LOCK WASHER M8
27
291-70939
1
SNAP RING
(MODEL 04270 ONLY)
28
136-70939
1
WASHER
29
292-70939
1
COTTER PIN
* NOT USED ON MODEL 04270
