Appendix 3 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

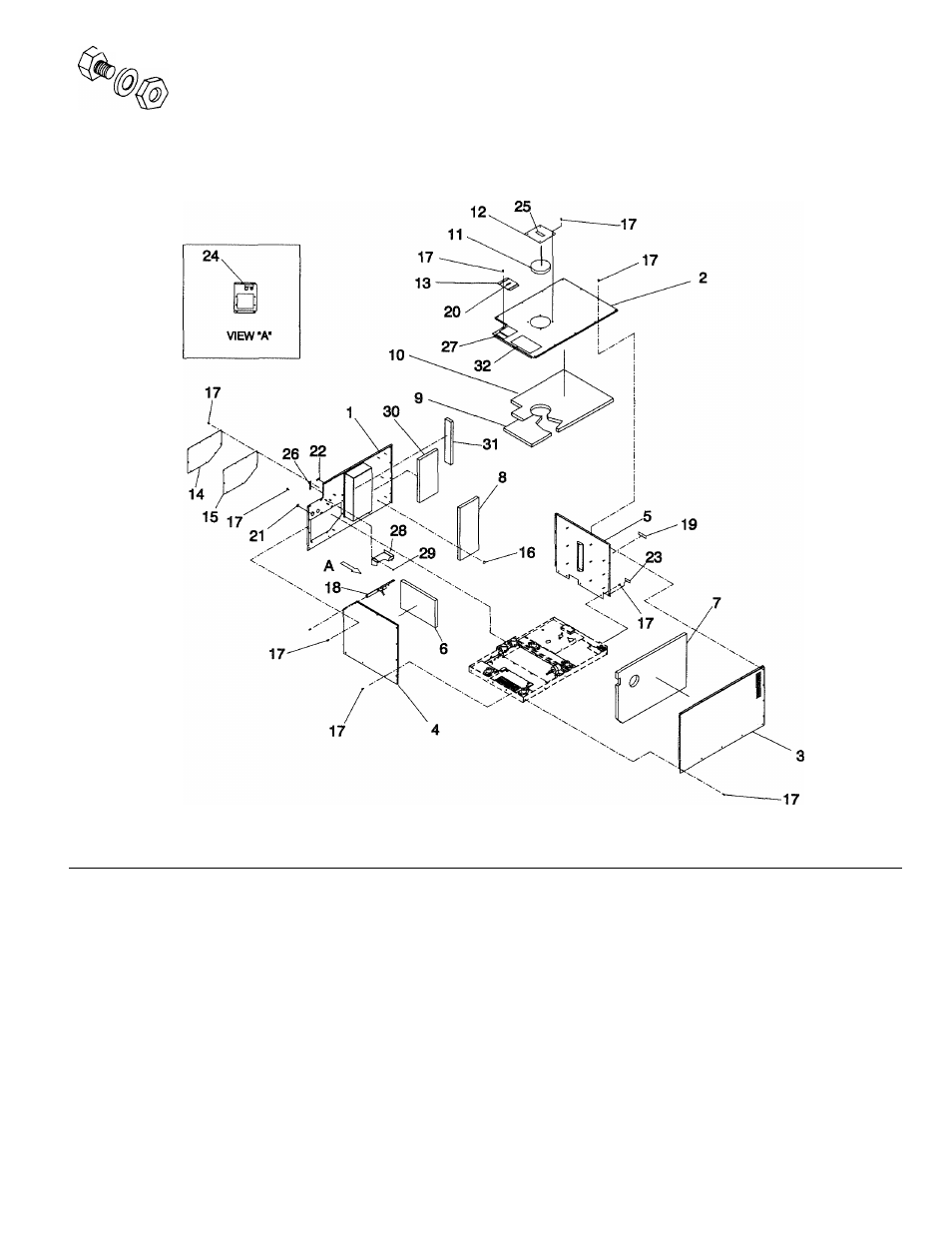

Enclosure - Drawing No. C7653
ITEM PART NO.
QTY. DESCRIPTION
ITEM PART NO.
QTY.
DESCRIPTION
1
C5607
1
ENCLOSURE PANEL RH
18
C5096
1
FRAME CONTROL PANEL -
2
C4534
1
ENCLOSURE PANEL TOP
REFER TO DRAWING C8005
3
C4532
1
ENCLOSURE PANEL LH
19
C7023
1
DECAL, BATTERY
+/-
4
C4535
1
ENCLOSURE PANEL FRONT
20
C7024
1
DECAL, RADIATOR CAP
5
C4536
1
ENCLOSURE REAR PANEL
21
C7025
1
DECAL, REMOTE
6
C5525
1
INSULATION, FRONT PANEL
22
C7026
1
DECAL, COOLANT
7
C5527
1
INSULATION, LH SIDE PANEL
23
C7027
1
DECAL, FUEL RETURN/SUPPLY
8
C5528
1
INSULATION, RH SIDE PANEL
24
C7028
1
DECAL, OIL FILL/LEVEL
9
C5529
1
INSULATION, TOP FRONT PANEL
25
C7029
1
DECAL, LIFTING LUG
10
C5530
1
INSULATION, TOP REAR PANEL
26
C7030
1
DECAL, MAX HOT / MIN COOLANT
11
C5531
1
INSULATION, LIFTING LUG COVER
27
C2340
1
DECAL, WARNING RV
12
C4986
1
COVER, ACCES LIFT
28
C6425
1
SUPPORT, COOLANT TANK
13
C4987
1
COVER, RADIATOR FILL
29
52857
3
NUT, LOCKING M6-1
14
C5091
1
COVER, ACCESS ELECTRICAL
30
C7047A
1
FOAM, AIR DUCT FACE
15
C6362
1
GASKET, ELECTRICAL ACCESS
31
C7047B
1
FOAM, AIR DUCT SIDE
16
78115
33
WASHER, SELF LOCK DOME
32
C4816
1
DECAL, UNIT
17
A7215
58
'A
-20 X 5/8 W/WASHER
