^PARTS
LISTS
Appendix 3 — Exploded Views and Parts Lists
QUIETPACF“ 75D Recreational Vehicle Generator

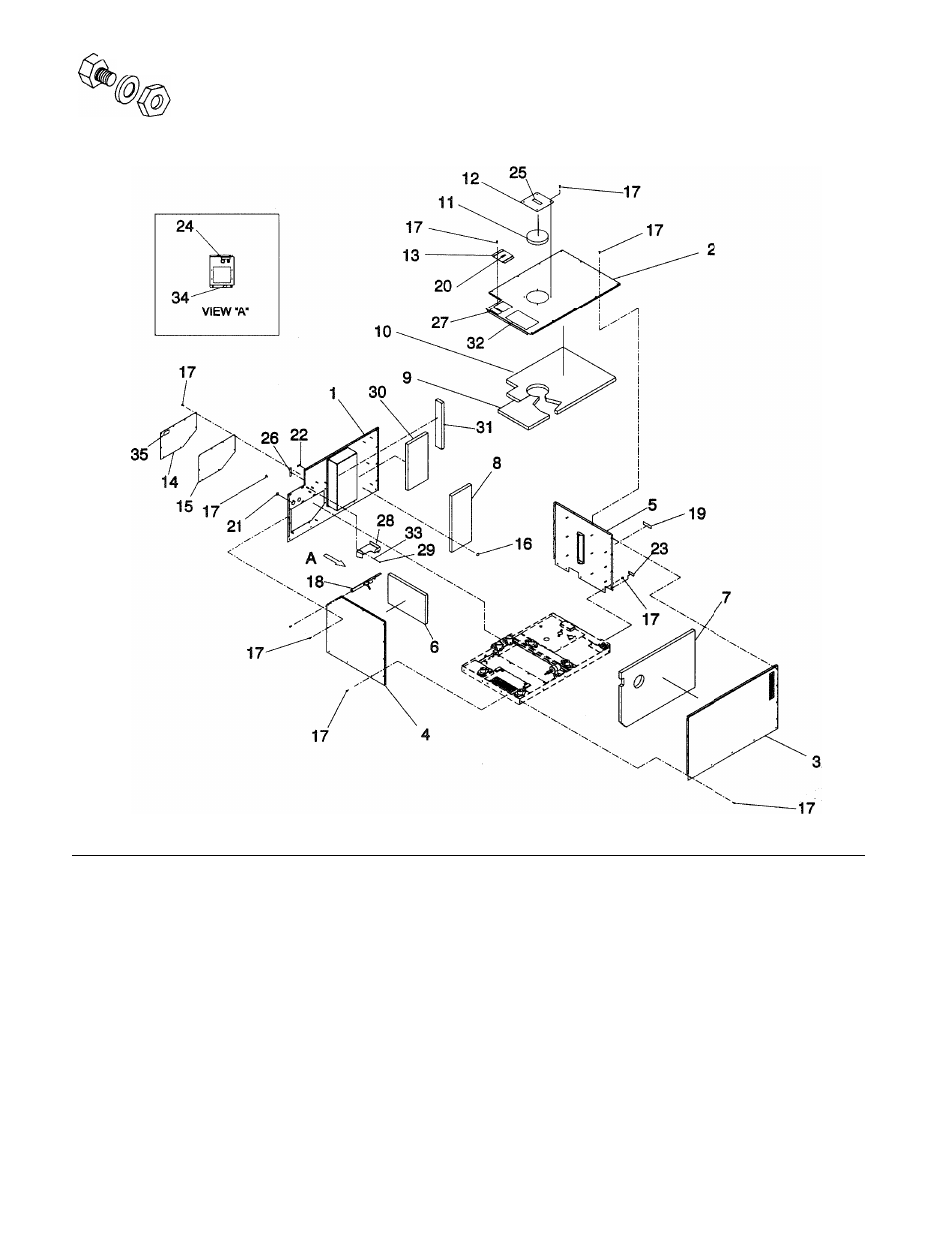

Enclosure - Drawing No. C7653-A
ITEM PART NO.
QTY. DESCRIPTION
ITEM
PART NO.
QTY. DESCRIPTION
1
C5607
1
ENCLOSURE PANEL RH
19
C7023
1
DECAL, BATTERY
2
C4534
1
ENCLOSURE PANEL TOP
20
C7024
1
DECAL, RADIATOR CAP
3
C4532
1
ENCLOSURE PANEL LH
21
C7025
1
DECAL, REMOTE
4
C4535
1
ENCLOSURE PANEL FRONT
22
C7026
1
DECAL, COOLANT
5
C4536
1
ENCLOSURE REAR PANEL
23
C7027
1
DECAL, FUEL RETURN/SUPPLY
6
C5525
1
INSULATION, FRONT PANEL
24
C7028
1
DECAL, OIL FILL/LEVEL
7
C5527
1
INSULATION, LH SIDE PANEL
25
C7029
1
DECAL, LIFTING LUG
8
C5528
1
INSULATION, RH SIDE PANEL
26
C7030
1
DECAL, MAX HOT / MIN COOLANT
9
C5529
1
INSULATION, TOP FRONT PANEL
27
C2340
1
DECAL, WARNING RV
10
C5530
1
INSULATION, TOP REAR PANEL
28
C6425
1
SUPPORT, COOLANT TANK
11
C5531
1
INSULATION, LIFTING LUG COVER
29
49813
3
NUT, HEX M6-1.0
12
C4986
1
COVER, ACCESS LIFT
30
C7047A
1
FOAM, AIR DUCT FACE
13
C4987
1
COVER. RADIATOR FILL
31
C7047B
1
FOAM, AIR DUCT SIDE
14
C5091
1
COVER, ACCESS ELECTRICAL
32
C4816
1
DECAL, UNIT
15
C6362
1
GASKET, ELECTRICAL ACCESS
33
22097
3
WASHER, SPLIT LOCK 'A" - M6
16
78115
33
WASHER, SELF LOCK DOME
34
98761
1
DECAL, ENGINE DATA
17
A7215
58
’A -20 X 5/8 W/WASHER
35
42755
1
DECAL, CSA APPROVAL
18
C5096
1
FRAME CONTROL PANEL -
REFER TO DRAWING C8005
46
