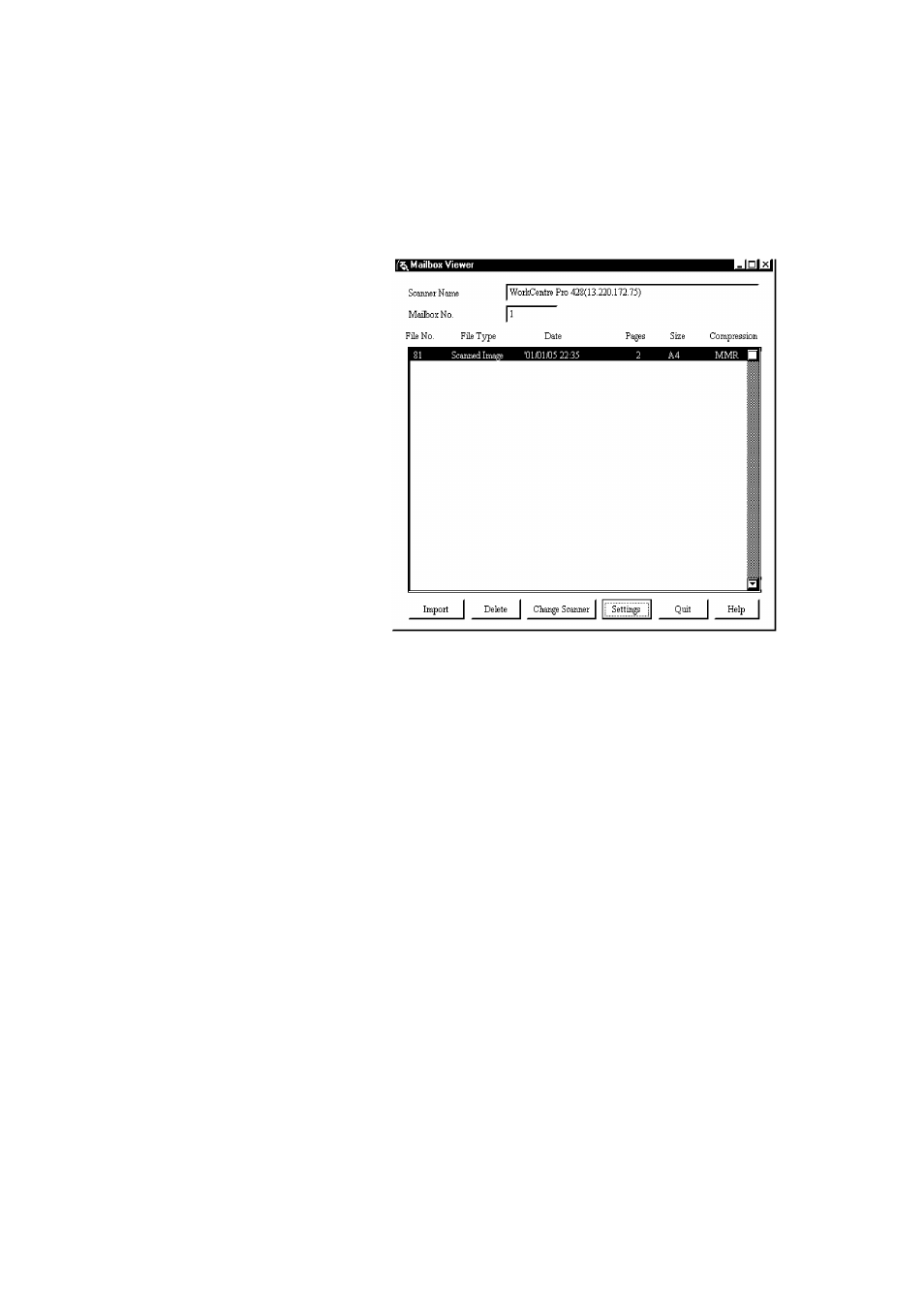

Importing the Document Stored in the Mailbox
If you have clicked the Importali existing documents checkboxon the
Setting dialog box, the Update button as shown in the figure below is
changed to the Import button.
See “Setting Up the Properties” on page 4-10 for the setting up of
importing document property.
When clicking the Import button, all the stored documents will be
imported, and saved into the specified directory (the default directory is
c: \temp) as the TIFF format.
At this time, the file name is as follows:
IP address - Mailbox No. - File No. - Date - Time.tif
Example : 123045123045-003-0013-0101111937.tif
Setting Up the Properties
You can specify the operation of the Mailbox Viewer and the importing
feature.
To setthe properties, click Setting on the MailboxViewerdialog box
(see Step 5 on 3.2.1).
Page 4-10
XEROX WorkCentre Pro 423/428 Scanner User Guide
