Improvement Package
Kit Na 529012 for
S-8 Gear Tractor

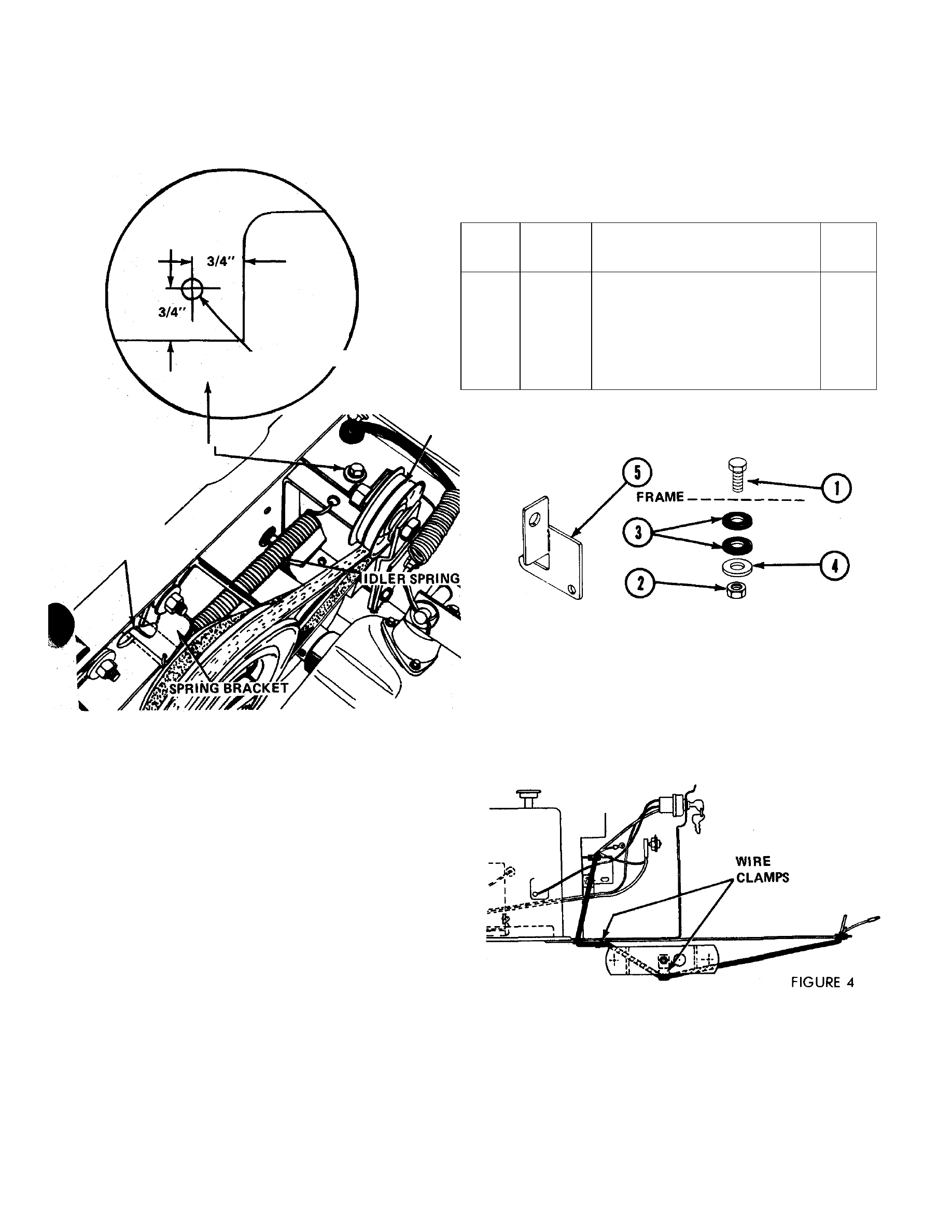

FIGURE 1
LOCATE AND DRIL
HOLE AS SHOWN
INSERT ITEMS
1, 2, 3 and 4.
INSERT TAB THRU
EXISTING HOLE
DRILL 21/64" DIAMETER HOLE
IDLER
REF.
N0.
PART
NO.
DESCRIPTION N0.
REQ'D
1 059069 CAPSCREW, 5/16-18x1-1/4 1
2 065042 LOCKNUT, 5/16" 1
3 075026 GROMMET 2
4 064007 WASHER, 1/4" 1
5 029263 SPRING BRACKET 1
»
FIGURE 2
GENERAL
The up-grade kit No. 529012 is designed to im­
prove the action of the belt idler in all S8 Gear Drive
tractors. It consists of an improved spring anchor and
an idler stop.
INSTALLATION
1. Tip up the seat for access to the idler and
spring. Remove the idler spring from its anchor and
remove the anchor which consists of a cap screw
(59144), a lockwasher (63006) and two locknuts
(65021).
2. The new spring anchor is installed on one of
the belt finger bolts, with a tab projecting through a
hole in the side frame. See Figure 2. Remove the nut,
lockwasher and flat washer from the belt finger;
Discard the flat washer; Install the spring anchor as
shown in Figure 2; and replace the lockwasher and
nut.
3. Hook up the idler spring to the new anchor.
4. To intall the idler stop, a hole must be drilled
in the frame next to the idler. Locate the hole as
shown in Figure 1. Drill a 21/64 diameter hole.
FIGURE 3
5. The idler stop consists of a cap screw, two
grommets, a washer and a hex nut. Assemble in the
hole as shown in Figure 3 with the cap screw on top of
the frame and both grommets under frame.
6. After assembly is completed, check and adjust
the belt as described in the Owner's Manual.
7. Check along the belts to be sure there is no
interference between belts and wire clamps on the
wiring harness. Orient the wire clamps as shown in
Figure 4 for proper clearance.
8. Check the engine sheave (29105). If runout or
wobble seems to be a problem, replace the sheave.
