CUTTING HEIGHT
ADJUSTMENT LEVER
HIGHEST
IMPLEMENT POWER CLUTCH
CUTTING
POSITIO
LOWEST
CUTTING
POSITION
FRONT SUPPORT BAR
ATTACHING PIN^TRACfOR LIFT ARMS
AND HAIR PINv " ^
COTTER^"— FIGURE 7
ASSEMBLE MOWER
1. Remove shipping straps from front support bar
and belt idler.

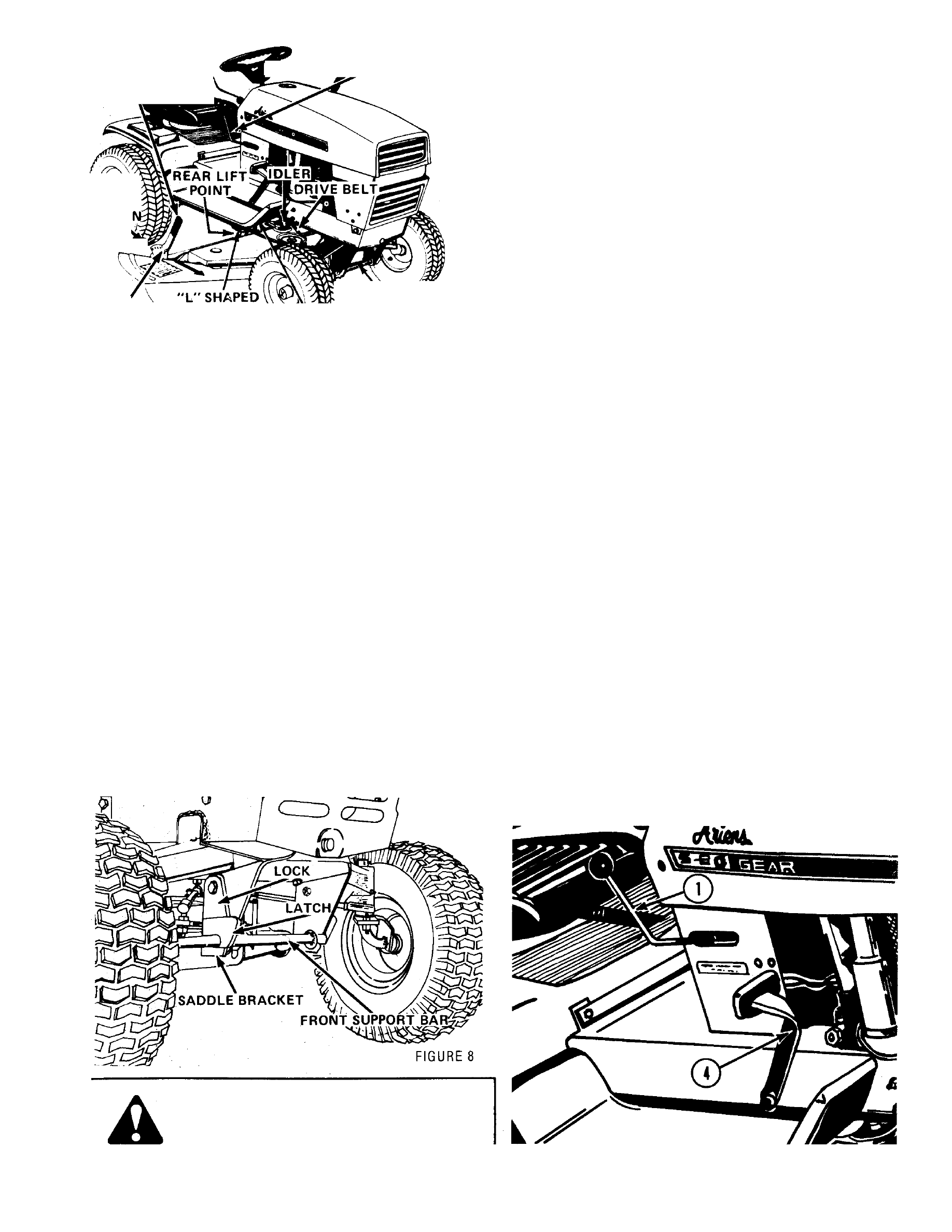

ATTACH MOWER TO THE TRACTOR
Use the following procedure to attach the mower
to the tractor:
1. Remove ignition key. Place implement power
clutch lever in the disengaged position and engage the
tractor brake lock.
2. Raise the tractor attachment lift lever.
3.
Place cutting height adjustment lever in the
second lowest cutting position as shown in Figure 7.
4. Roise front support bar to clear the front tractor
tire and slide the mower under the tractor from the right
side.
5. Place the drive belt over the rear lift point and
lower the attachment lift lever. Align ball joint of rear
lift point to tractor lift arms and secure with the "L"
shape attaching pin and hairpin cotter provided. See
Figure 7,
6. Position drive belt over the drive and driven
sheaves and place idler to the inside of the belt as
shown in Figure 7.
7. Position front support bar in the tractor saddle
brackets and secure with the locks and latches as
shown in Figure 8.
DELIVERY
Using the Owner's Manual as a guide, instruct the
customer as follows:
1. Instruct the customer on the operation of the
tractor. Emphasize safety and discuss the safety infor­
mation in the Owner's Manual.
2. Advise customer to change oil in the engine
crankcase after the first five hours of operation.
3. Advise customer to change the transmission oil
filter after the first five hours of operation.
4. Explain how to perform the recommended
lubrication and periodic service.
5. Explain maintenance and adjustment instruc­
tions.
6. Demonstrate how to mount and dismount at­
tachments.
7. Make certain the customer has his Owner's
Manual.
8. Explain Ariens Warranty Policy. Fill out and re­
turn Ariens Warranty Registration Card.
CONTROLS
©
IMPLEMENT POWER CLUTCH — Figure 1
Thè implement power clutch is used to operate
the mower or snow thrower. Push the lever
forward to engage the clutch and drive the attachment.
Pull the lever rearward to disengage the clutch and stop
the attachment. The lever must be in the rear (disen­
gaged) position to start the engine. THIS IS A SAFETY
FEATURE. The engine will not start until the lever has
been placed in the disengaged position.
ADJUST BLADE LEVEL AND PITCH
IM P O R T A N T : A D J U S T M O W E R B L A D E L E V E L
A N D P IT C H A S O U T L IN E D IN T H E O W N E R 'S
M A N U A L .
Figure 1
PAGE 52
