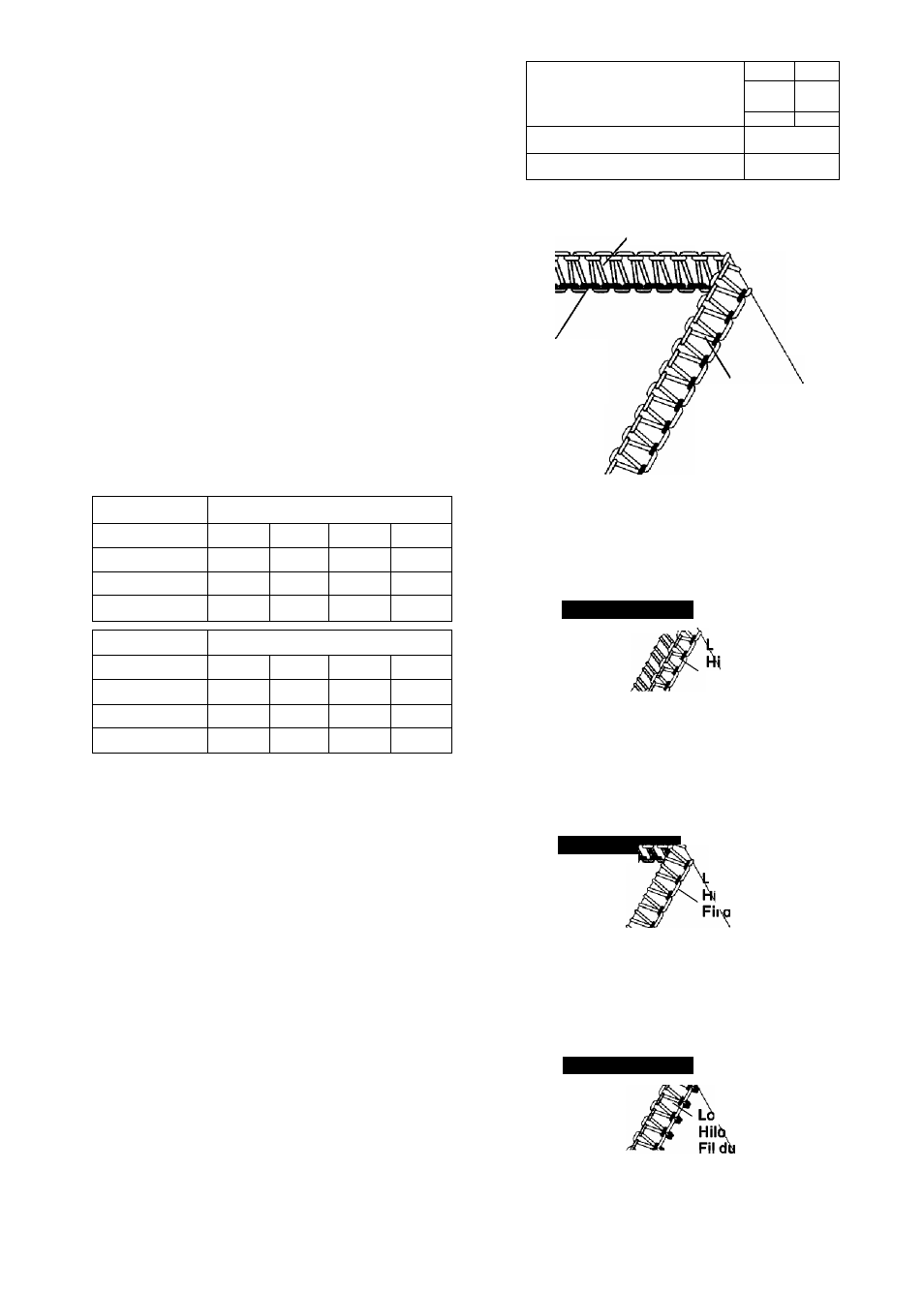

21. SUGGESTED TENSION SETTING
1 ) 3-thread Overlook
Note: * These are suggested tension settings oniy.
* Tension settings are effected by;
1) Type and thickness of fabric
2) Needie size
3) Size, type and fiber content of thread
For 3-thread uitra-stretch safety,set differential feed
between 0.7 & 1.0.(see page 49)
Correct Balance
Set Each Tension Diai to Settings Shown at Right
and Test Sew on a Sample of Your Fabric
Fabric
Tension Dial
Blue
Green
Orange
Yellow
Light weight
2.5
3.0
3.0
Medium weight
3.0
3.0
3.0
Heavy weight
3.5
3.0
3.0
Fabric
Tension Dial
Blue
Green
Orange
Yellow
Light weight
2.5
3.0
3.0
Medium weight
3.0
3.0
3.0
Heavy weight
3.5
3.0
3.0
How to Balance
When the upper looper thread lies on the underside
of the fabric;
- Turn the upper looper thread tension dial (orange)
to a higher number.
- Or, turn the lower looper thread tension dial (yellow)
to a lower number.
When the lower looper thread appears on the top
of fabric;
-Turn the lower looper thread tension dial (yellow)
toward a higher number.
- Or, turn the upper looper thread tension dial
(orange) to a lower number.
When the needle thread is too loose, turn the
needle tension dial (blue or green) to a higher
number.
NEEDLE POSITION
• O
0 9
SEAM WIDTH FINGER KNOB
s
STITCH LENGTH
2 ~ 4
upper looper thread
Hilo ojo-guía Superior
.Fil de boudeur supérieur
Needie thread
Hilo de aguja
Fil d'aiguille
Topside
Lado superior
Endroit
Lower looper thread
Hilo del ojo-gufa inferió
Fil du boudeur inférieur
Undersid
(504)
Lado inferiore
Envers
Upper looper thread
Hilo ojo-guía Superior
Fil du boudeur supérieur
Needle thread
Hilo de aguja
Fil d'aiguille
Topside
Lado superior
Endroit
ower looper thread
lo del ojo-guía inferió
Fihdu boudeur inférieur
Undersid
Lado interiore
Envers
Upper looper thread
Hilo ojo-guía Superior
Fil du boudeur supérieur
Needle thread
Hilo de aguja
Fil d’aiguille
Topside
Lado superior
Endroit
ower looper thread
■ Jodel ojo-guía inferió
^u boudeur inférieur
Undersid
Lado inferiore
Envers
Upper looper thread
Hilo ojo-guía Superior
. Fil du boudeur supérieur
/
Needle thread
Hilo de aguja
Fil d'aiguille
Topside
Lado superior
Endroit
i^er looper thread
del ojo-guía inferió
boudeur inférieur
Undersid
Lado inferiore
Envers
