la
1b

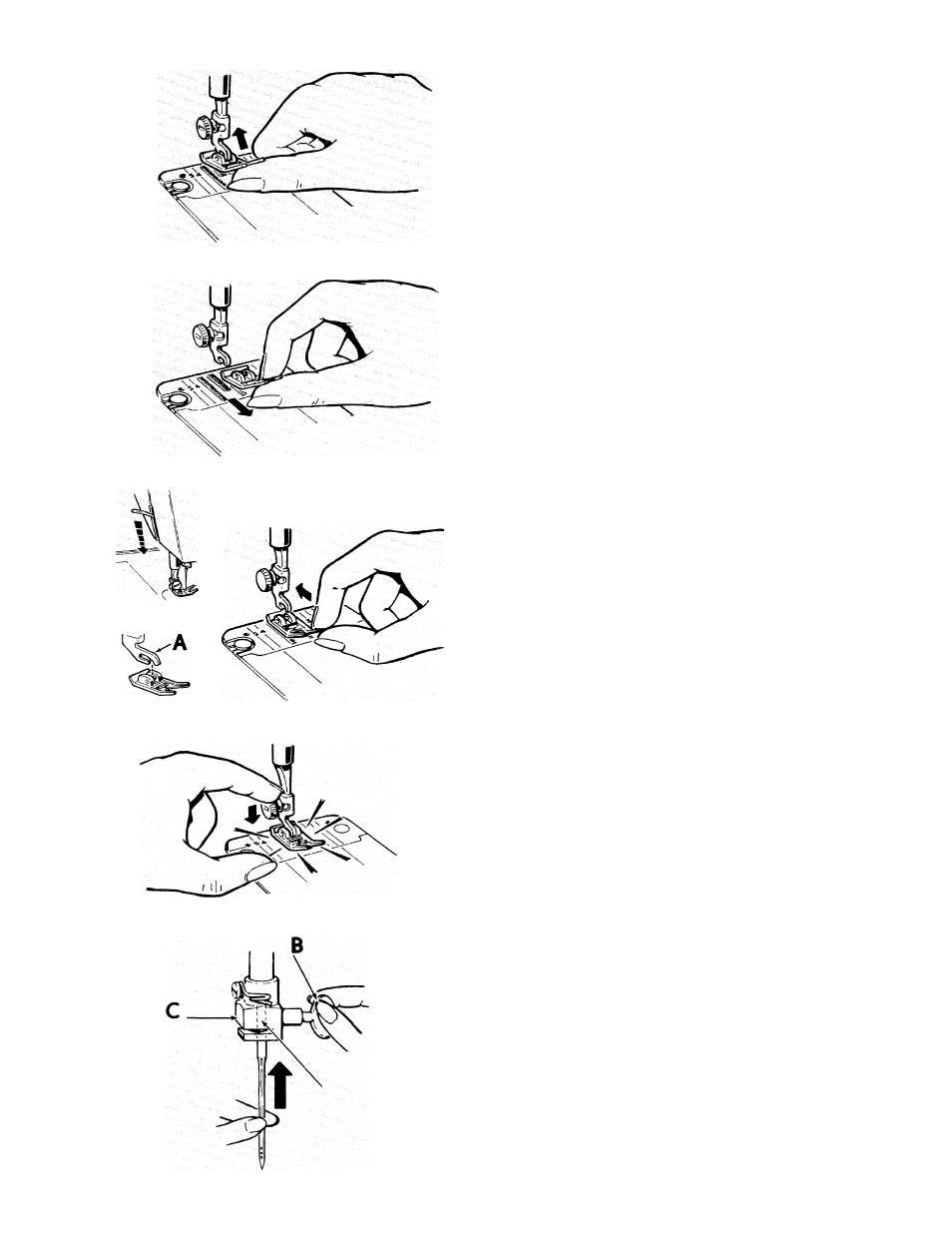

CHANGING PRESSER FEET
Snap-on Presser Feet
The presser feet furnished with your machine
snap on and off a common shank.
Raise needle to highest position by turning the
hand wheel toward you. Raise presser foot.
To Remove and Replace Foot
1 a. Press toe of presser foot upward as far as
it will go.
1 b. Then snap down to remove.
2.
Centre the new presser foot under the
shank A and lower the presser foot lifter so
that the shank fits the presser foot pin.
3. Press presser toot screw down firmly until
foot snaps into place.
CHANGING THE NEEDLE
• Raise needle to its highest point by turning
the hand wheel toward you. Loosen needle
clamp screw B and remove the needle.
• Insert new needle up into clamp C as far as
it will go. with the flat side of the needle to
the back.
•
• Tighten needle clamp screw.
