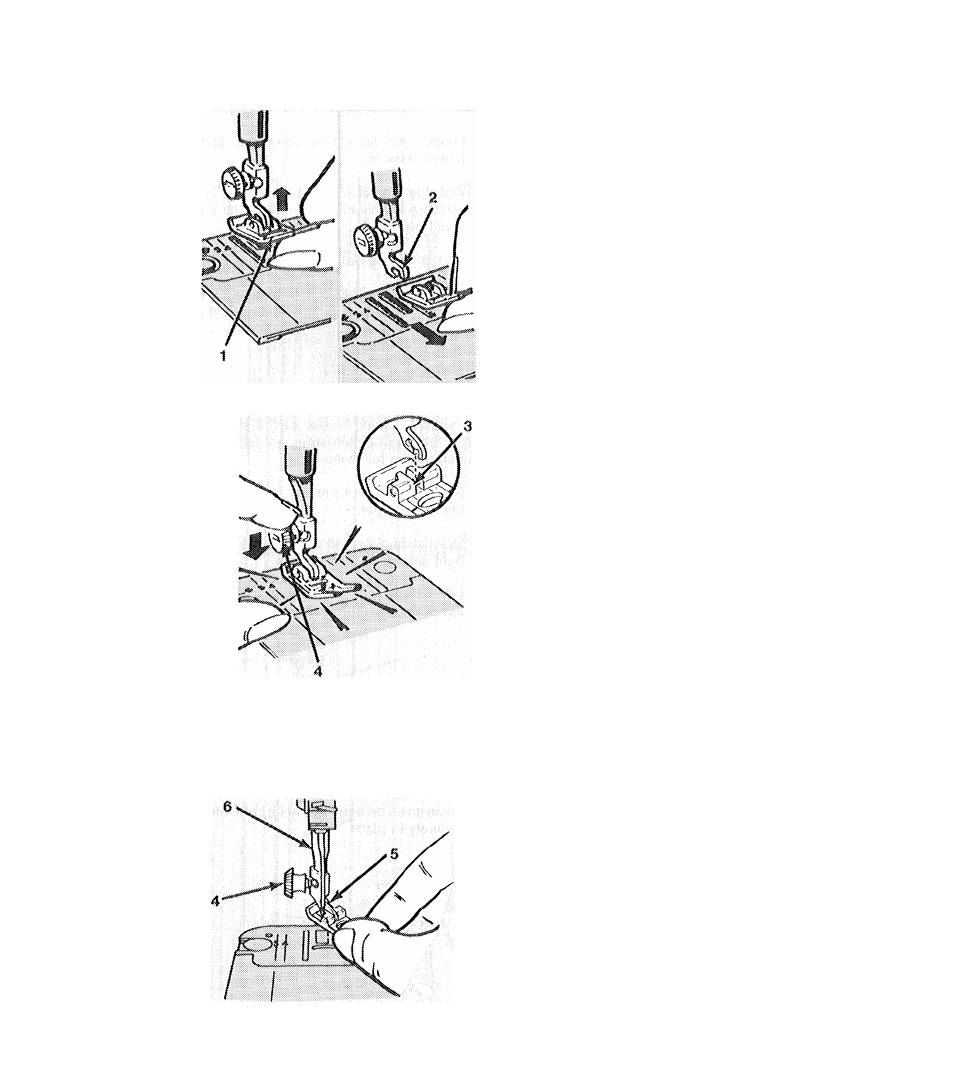

Changing Snap-on Presser Feet
The accessory feet supplied with the
machine fit onto a common shank and are
attached easily as follows:
« Raise needle to highest point by turning
the handwheel towards the operator.
^ Raise presser foot using lever on rear of
machine.
♦ Fusil up on toe of presser foot (1) until it
snaps off shank (2) and remove foot.
Place new foot on needle plate with pin
(3) under center of shank.
Using presser foot lifter, lov/er siiank on
to pin (3) and push down firmly on presser
foot screw (4) until foot snaps into place
onto shank.
Changing Screw-on Presser Feet
Special feet which have built-in shanks are
replaced as follows:
• {3aise needle and presser foot.
« l,oo$efi presser foot screw (4) with a coin
and remove presser foot with shank (5)
guiding it towards the operator and to the
right.
*
* To replace foot, fiook It around presser bar
(6) and screw (4). Tighten screw with a
coin.
