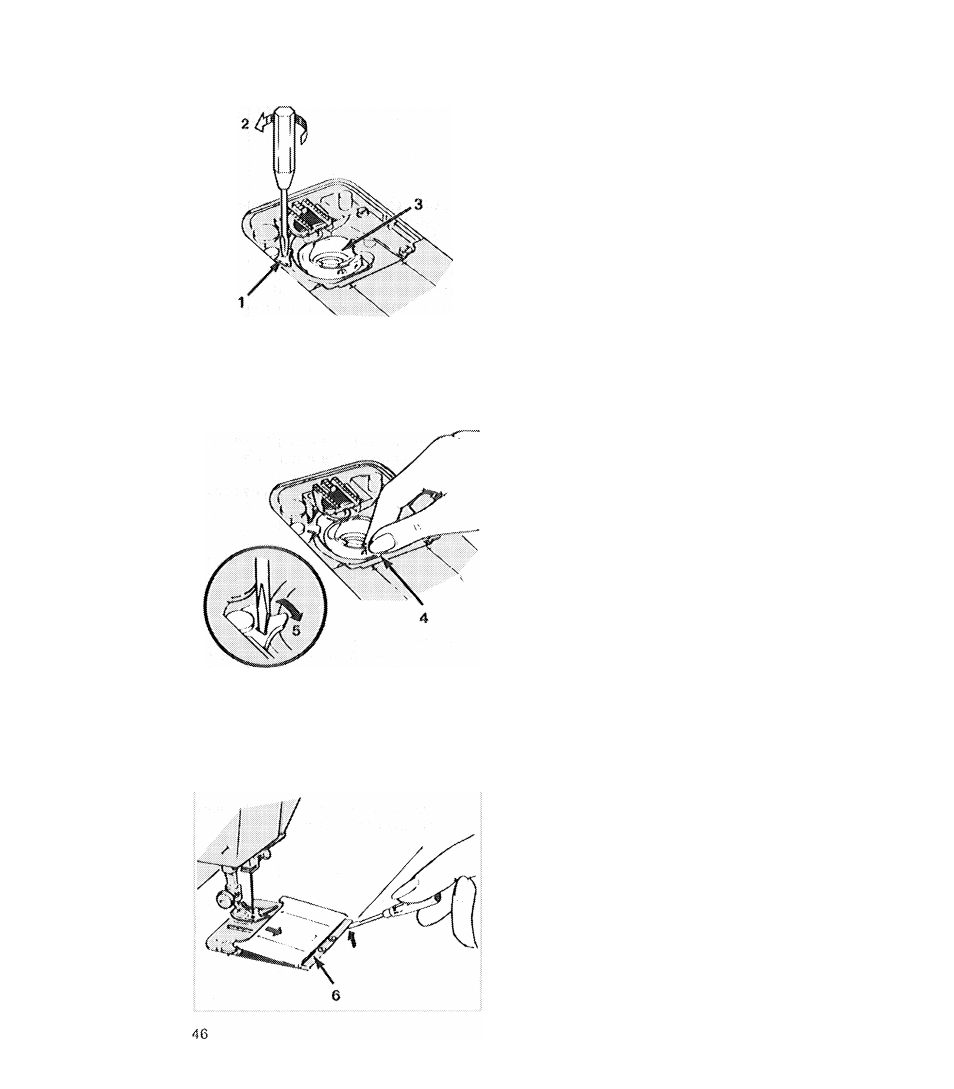

♦ Remove neecHe and needle plate.
• Open slide plate and lift out bobbin.
* Using small screwdriver, turn bobbin case
retainer (1) in direction of arrov/ (2) as far
as it will go,
♦ Lift out bobbin case (3).
Using soft brush, brush lint from case and
other mechanical parts in the bobbin area.
♦ Insert case with a back and forth motion
so front of case lies under position plate
(4).
♦ With small screwdriver, turn bobbin case
retainer in direction of arrow (5) to lock
case in place.
♦ Iteinsert needle, needle plate, and bobbin
and close slide plate.
Replacing Slide Plate
Should slide plate become detached, replace
as follows:
• Place slide plate in slide way with the
front edge close to, but not covering, the
reiainifig spring (6).
• With a screwdriver, lift each end of spring
into the side grooves on the underside of
the plate,
•
•
Diavj
plate gently towards you to engage
spring, Then, close plate.
