5. CLEANING YOUR MACHINE
To ensure reliability, regularly clean and lubricate machine. Periodic check-ups
by an authorized service center are recommended depending upon frequency of
use.
Removing Face Plate
Cleaning the Machine
CAUTION: Before attempting any procedures
in this chapter, disconnect power!Ine plug
from electrical outlet!
Only remove the face plate of the machine
for cleaning, lubricating, and light bulb
replacement. Keep securely fastened at all
other times.

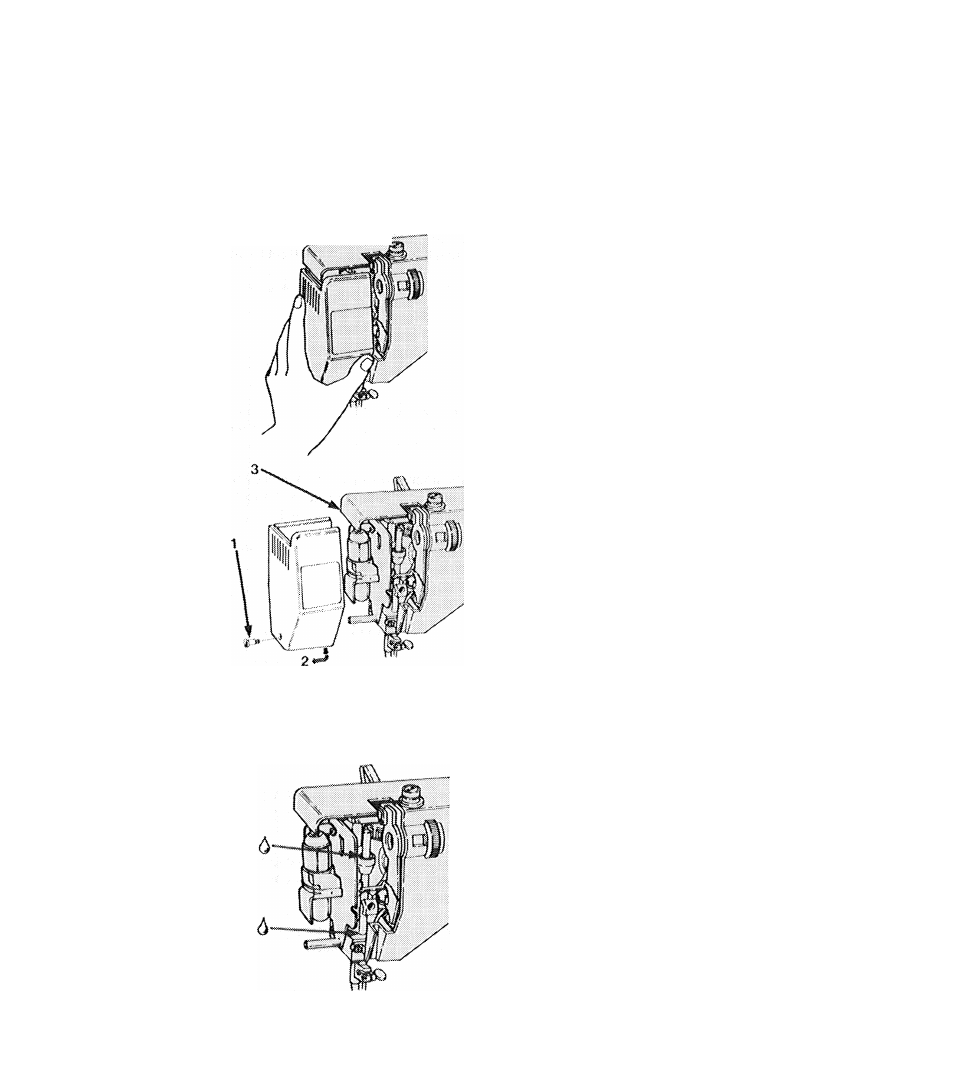

« Loosen and remove screw (1).
♦ Remove face plate by drawing it slightly
towards the operator and to the left (2),
• Replace face plate by sliding it to the right
under top
edge
of arm top cover (3).
« When snugly seated, replace and tighten
screw (1).
^ For normal external cleaning, use a soft
dry cloth. Stubborn stains may be re
moved with a mild soap and v^ater solu
tion.
♦ Using a soft brush, remove all lint froin
exposed mechanical parts under face
plate as well as thread path and needle,
feed, and bobbin areas.
*
* Periodically, apply a drop of oil to areas
shown. DO NOT over oil!
45
