69
VT76xxX Integration – Graphical User Interface (GUI) Objects
The following objects should be typically used in a GUI:
 Room Temperature (Numeric);
 Occupied and Unoccupied Heat Setpoints (Numeric);
 Occupied and Unoccupied Cool Setpoints (Numeric);
 Outdoor Temperature (Numeric);
 Supply Temperature (Numeric) (If available);
 Occupancy Command (Enum);
 Effective Occupancy (Enum);
 System Mode RTU (Enum) or System Mode HPU (Enum);
 G Fan (Boolean);
 Y1 Cool (Boolean);
 Y2 Cool (Boolean);
 W1 Heat (Boolean);
 W2 Heat (Boolean) or Reversing Valve (Boolean);
 Economizer Output (Numeric) (if available);
 Aux (Boolean);
 DI 1 Status (Boolean);
 DI 2 Status (Boolean);
 Frost Alarm (Boolean) (if available);
 Filter Alarm (Boolean) (if available);
 Service Alarm (Boolean) (if available);
 Fan Lock Alarm (Boolean) (if available);
(BI 38)
(AV22)
(BI 25)
(BI 26)
(BI 27)
(BI 28)
(BI 29)
(MV 12)
(MV 14)
(BI 24)
(BI 31)
(BI 32)
(BI 36)
(BI 39)
(AI 16)
(AV 42)
(AV 43)
(AV 44)
(AV 45)
(AV 45)
(AV 45)

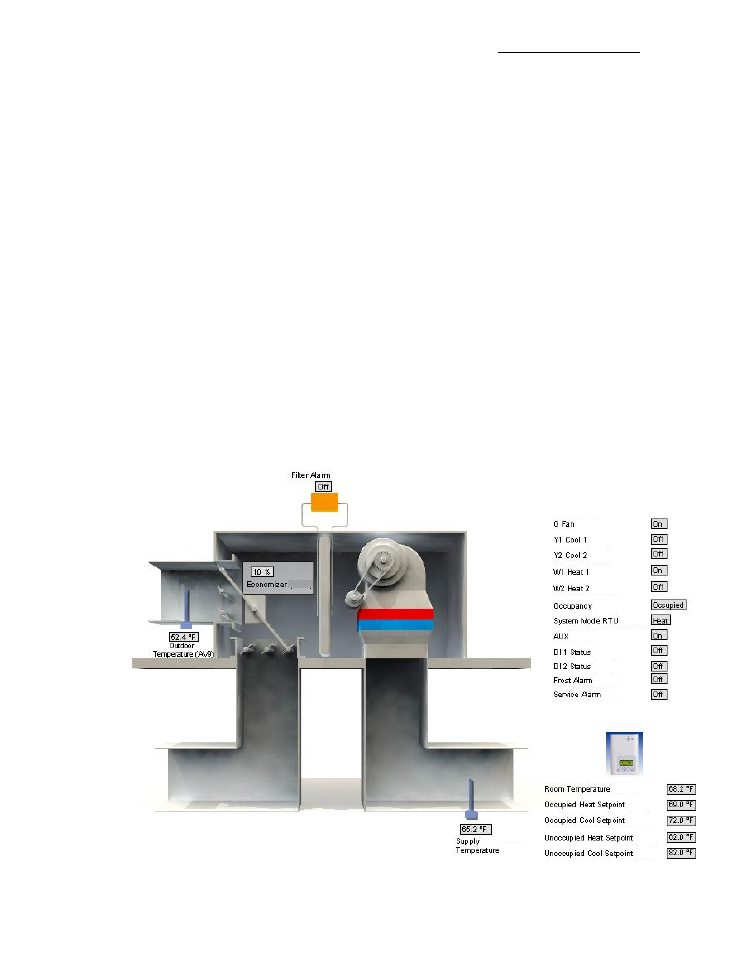

Typical GUI for a VT7605B5000W with Economizer control
