VTR8300 Series

User Interface Guide

Viconics Technologies Inc.

I Small Building Systems I 9245 Langelier Blvd. Saint-Leonard, Quebec, Canada, H1P 3K9 I +1 514 321 5660 I www.viconics.com

028-6045-01

April 2014

4 V

s T

s. A

ll r

s r

Change Value

( see note )

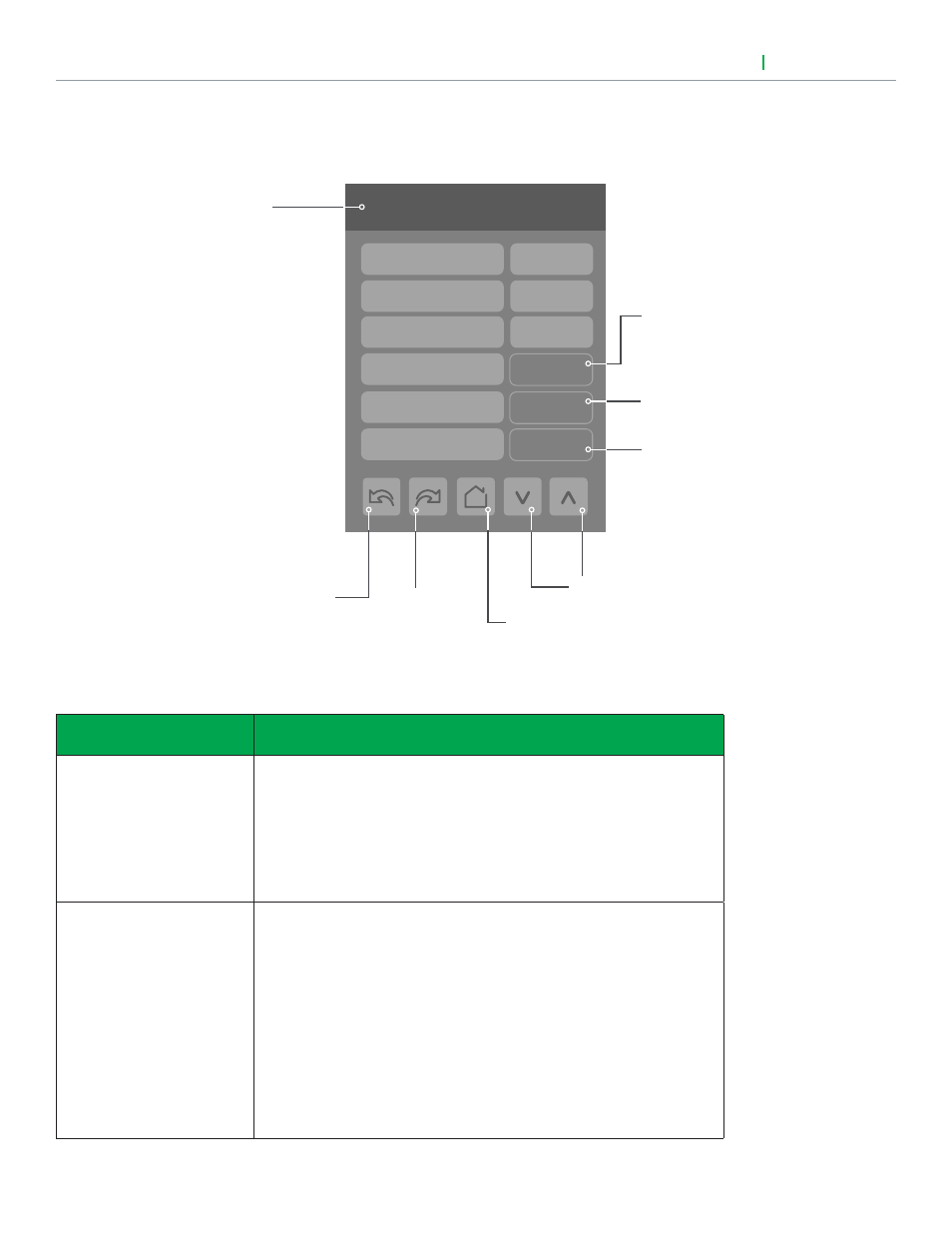

NETWORK SETTINGS

ZIGBEE NETWORK SETTINGS

(IF ZIGBEE NETWORK CARD IS INSTALLED)

Page

Back to

Setup Page

Note: To change the value of
a parameter, simply press on
the parameter name or value
and then use the arrow keys
to change the value.

PARAMETER DETAILS

Configuration parameters
default value

Significance and adjustments

COM address
Terminal Equipment
Controller networking address
Default value = 254
Range is: 0 to 254

For wireless models, the use of the COM address is not mandatory. The

extended IEEE ZigBee

node address is used to identify the device on the

network.

The COM address is an optional useful way to identify a device on the

network.

ZigBee

Pan ID

Personal Area Network
Identification
Default value = 0
Range is: 0 to 1000

This parameter (PAN ID) is used to link specific Terminal Equipment
Controllers to specific ZigBee

coordinators. For every Terminal Equipment

Controller reporting to a coordinator, be sure you set the SAME channel
value both on the coordinator and the Terminal Equipment Controller(s).

The default value of 0 is NOT a valid PAN ID.
The valid range of available PAN ID is from 1 to 1000.

Range 1 to 500 for centralized networked applications using a ZigBee

Coordinator.

Range 501 to 1000 is for stand-alone applications where there is no
ZigBee

Coordinator.

Page 1 of 2

Status of controller
detecting a ZigBee

network. Will display
Online when connected
successfully to network.

1/2 Zigbee network

Zigbee channel

Zigbee Pan ID

COM address

254

Zigbee short

0x0000

IEEE address

0x0000

Zigbee status

Not Det

ZigBee

Pro short address.

The address is generated
once the device joins a
ZigBee

network.

Only the last 4 digits in HEX
are showed
