SERVICE VIEWS
Firmware revision
of the controller
Changeover temperature
Outdoor temperature
Room temperature
Supply temperature
Room Humidity
Effective occupancy
PI heating demand
Heating demand limit
PI cooling demand
Cooling demand limit

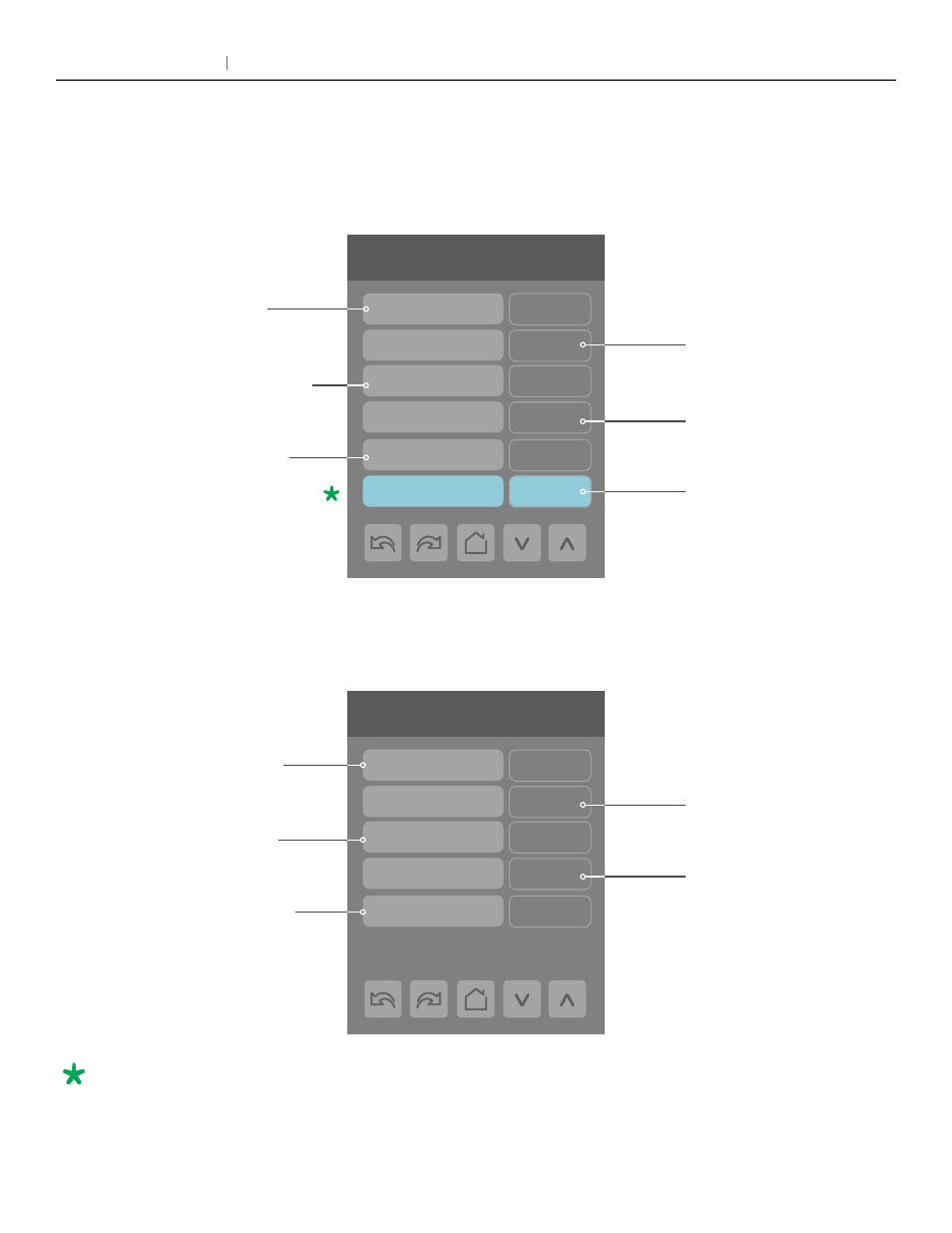

The service view screens show the current status of certain points locally at the
controller. These points can also be viewed through the network.
1/6 Service view
Room temp. xx.x °C
Room humidity
Firmware rev. 1.0
xx.x °C UI20 RS temp.
xx.x °C UI19ChgOver
xx.x °C Outdoor temp.
xx.x %RH
2/5 Service view
PI heat. dem. 0%
0% PI cool. dem.
Heat dem. limit 0.0%
0.0% Cool. dem. limit
Effective occ. Occupied
Parameter only displayed on
models with built in humidity
sensor.
