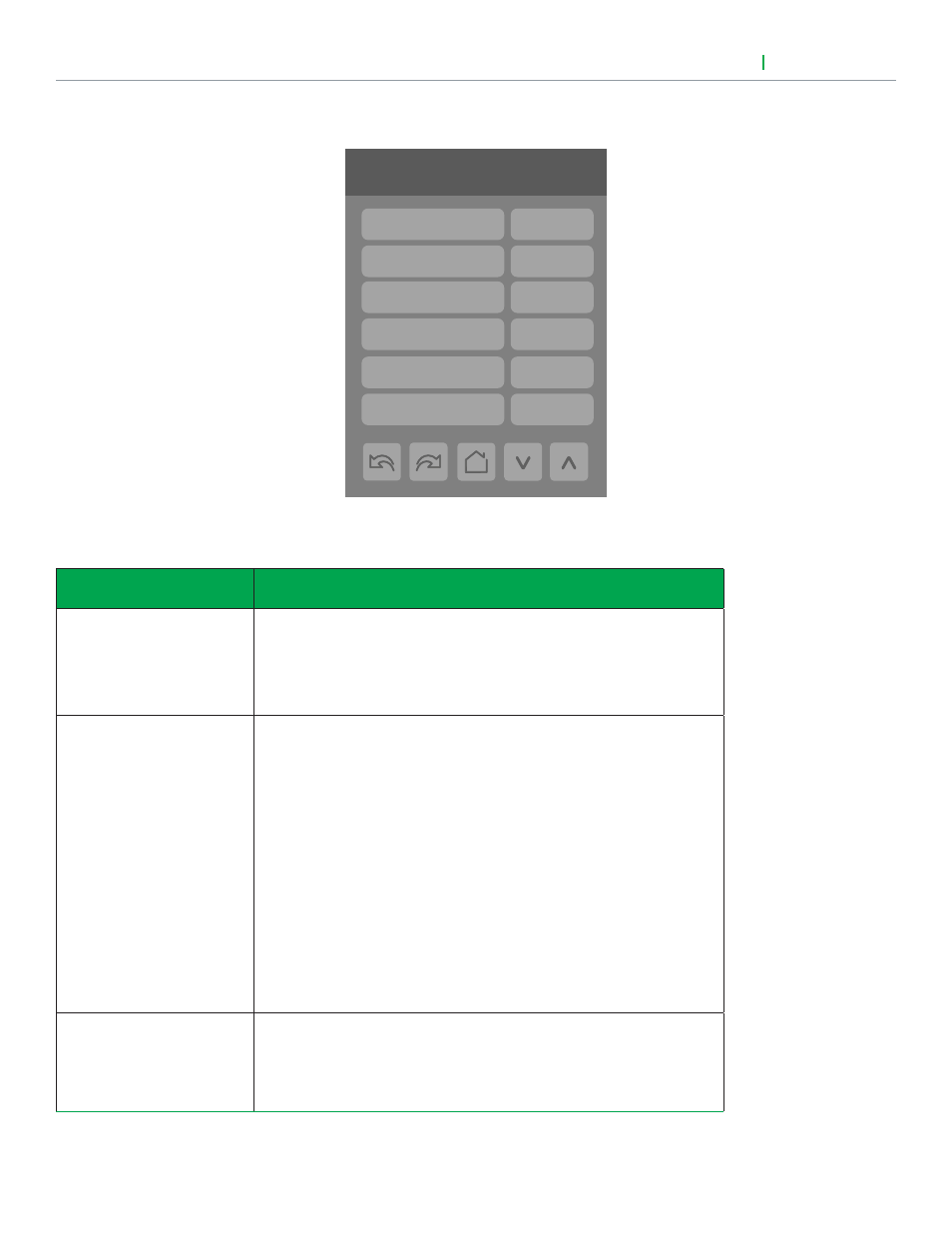

CONFIGURATION PARAMETERS (CONT'D)
Auto mode Enabled
2/7 Configuration
Fan menu On-Auto
Auto fan func. AS
Fan cont. heat On
Standby diff. 2.0 °C
Standby mode Abs
Configuration parameters
default value
Significance and adjustments
Auto mode
Enables Auto menu
for Mode button
Default value = On
Enables Auto function for the mode button
For sequences 2, 4 & 5 only
On = Auto active (Off-Cool-Heat-Auto)
Off = auto not active (Off-Cool-Heat)
Fan menu
Mode button menu
configuration
Default is: On-Auto
Menu presented are dependent on model used and sequence of operation
selected.
(L-M-H): 3 Speed configuration using 3 fan relays.
(L-H): 2 Speed configuration using 2 fan relays.
(L-M-H-A): 3 Speed configuration with Auto fan speed mode using 3 fan
relays.
(Auto Mode operation is dependent on Auto Fan parameter).
(L-H-A): 2 Speed configuration with Auto fan speed mode using 2 fan
relays.
(Auto Mode operation is dependent on Auto Fan parameter).
(On-Auto): Single Speed configuration. Auto is for Fan on demand / On is
On all the time.
Auto fan func.
Auto Fan Function
Default value: AS Auto Speed Fan Mode operation for Fan Menu (L-M-H-A) or (L-H-A).
(AS): Auto Speed during occupied periods. Fan is always on during
occupied periods.
(AS AD): Auto Speed / Auto Demand during occupied periods.
