VTR8300 Series 3 User Interface Guide
Viconics Technologies Inc. I Small Building Systems I 9245 Langelier Blvd. Saint-Leonard, Quebec, Canada, H1P 3K9 I +1 514 321 5660 I www.viconics.com
028-6045-01 April 2014
© 2
01
4 V
ic
on
ic
s T
ec
hn
ol
og
ie
s. A
ll r
ig
ht
s r
es
er
ve
d
.

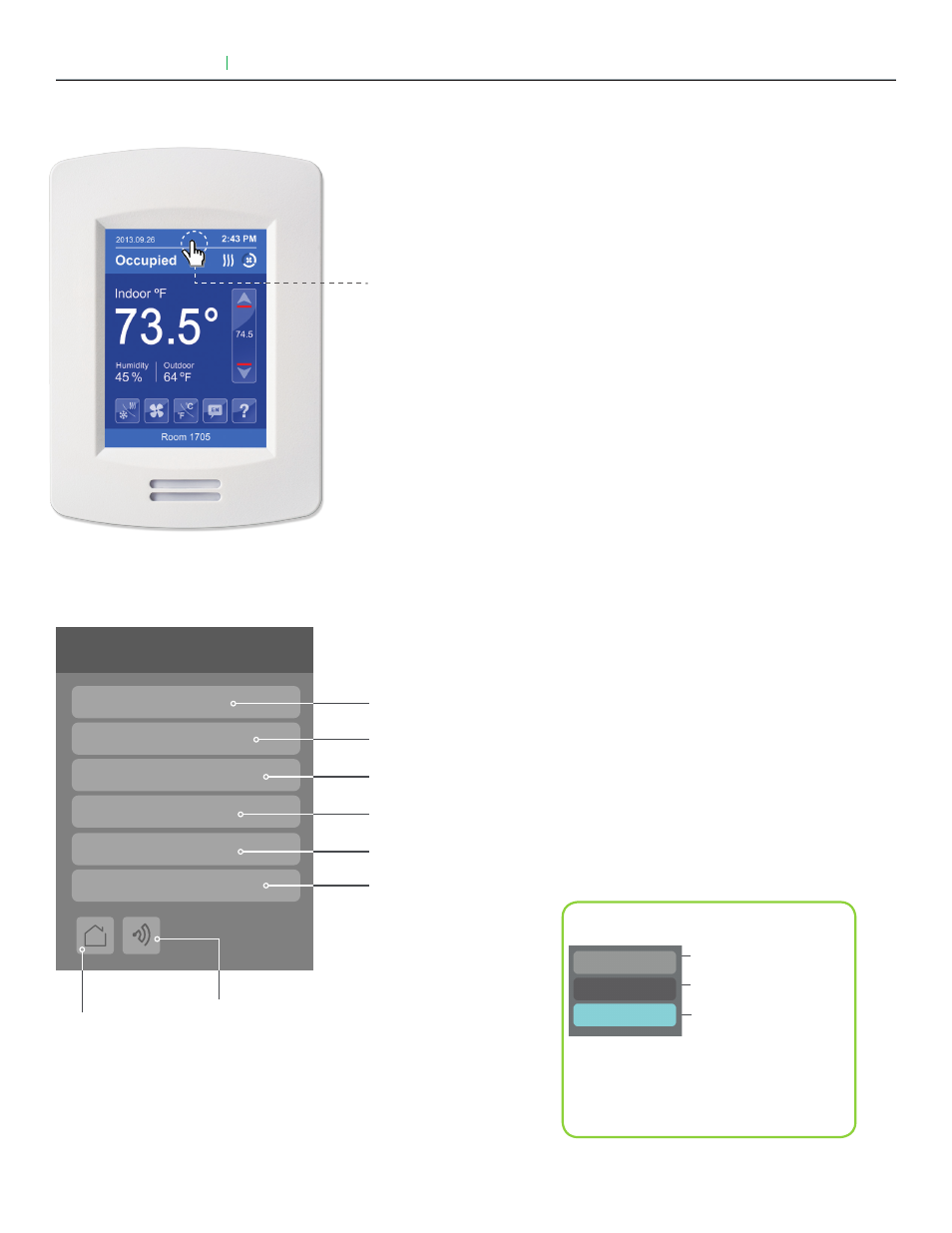

HOW TO ENTER SETUP SCREEN
SETUP SCREEN DISPLAY
Return to
home screen
Discover Mode The Controller will
become discoverable on the wireless
ZigBee
® network for 1 minute (this
button is hidden if ZigBee ® settings are
not configured)
Enter BACnet ® & ZigBee ® network settings
Enter parameter configuration menu
Enter setpoint & display settings
Enter output testing mode
Enter status and service view
Note: The "Network" button will not be displayed if
no BACnet
® or ZigBee ® card is installed.
Setup
Network
Configuration
Setpoints - Display
Service view
Test outputs
Language selection
Touch and hold this point
for 3 seconds to enter setup mode
Note: If a configuration / installer
password is activated to prevent
unauthorised access to the
configuration menu parameters, a
password entry prompt will appear
to prevent access to the device
configuration components.
General Note:
Adjustable parameter
Nonadjustable parameter
Indicates invisible conditional
field. Appears based only
on model or presence of a
ZigBee ® card
Enable selected language(s)*
*only available in recent versions of firmware
