Configuration parameters
default value
Significance and adjustments
Cool CPH
Default value = 4 C.P.H. Cooling output cycles per hour. Will set the maximum number cycles per
hour under normal control operation. It represents the maximum number
of cycles that the equipment will turn ON and OFF in one hour.
Note that a higher C.P.H will represent a higher accuracy of control at the
expense of wearing mechanical components faster.
Range is: 3, 4, 5, 6,7 & 8 C.P.H.
Heat CPH
Default value = 4 C.P.H. Heating output cycles per hour. Will set the maximum number cycles per
hour under normal control operation. It represents the maximum number
of cycles that the equipment will turn ON and OFF in one hour.
Note that a higher C.P.H will represent a higher accuracy of control at the
expense of wearing mechanical components faster.
Range is: 3, 4, 5, 6,7 & 8 C.P.H.
Cooling valve
Default value = NC Set’s the type of valve used for cooling
NC = Valve is normally closed when no power is present.
NO = Valve is normally opened when no power is present.
Heating valve
Default value = NC Set’s the type of valve used for heating.
NC = Valve is normally closed when no power is present.
NO = Valve is normally opened when no power is present.

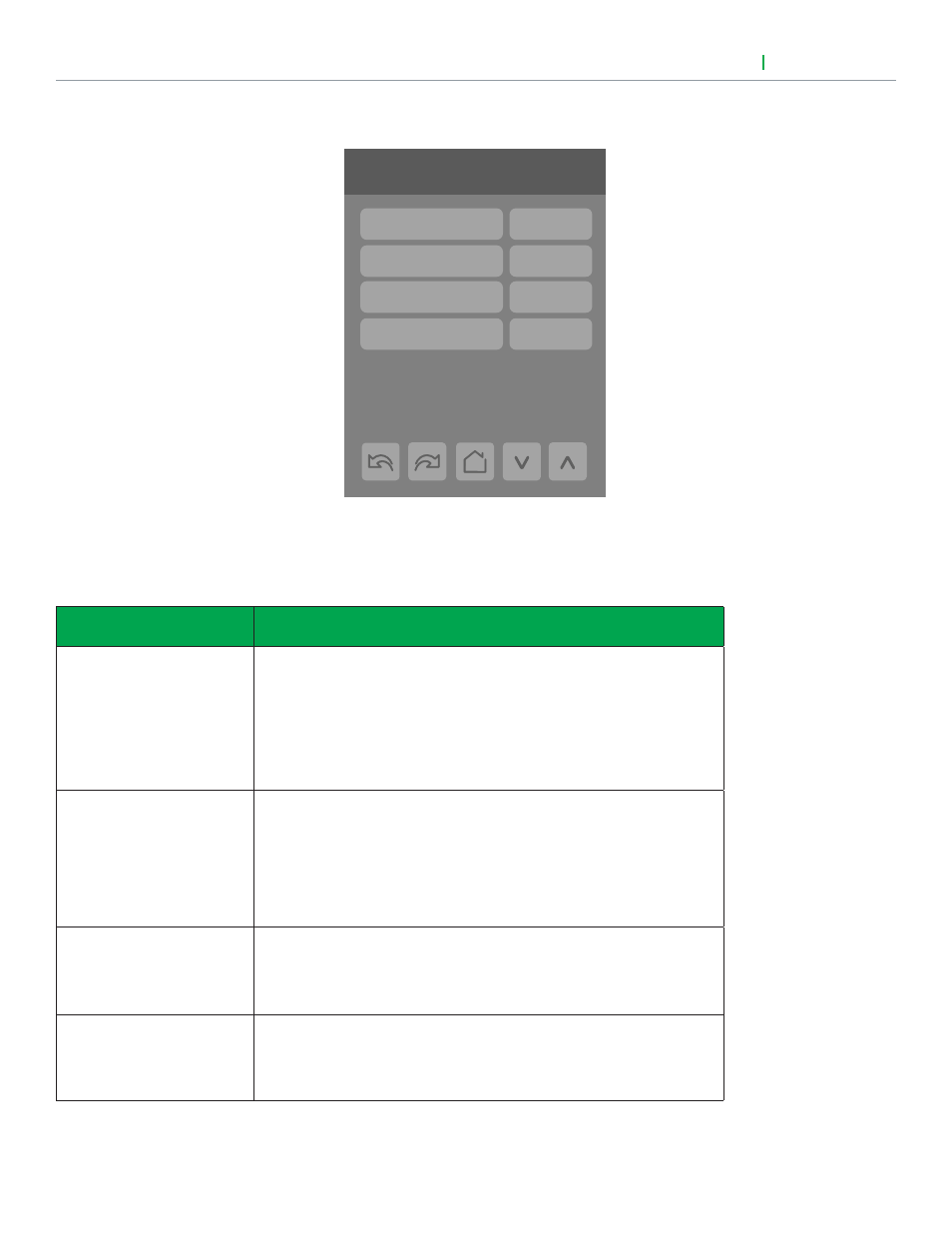

PARAMETER DETAILS
CONFIGURATION PARAMETERS (CONT'D)
Heating valve
Cooling valve
Heat CPH
Cool CPH
NC
NC
4
4
4/7 Configuration
