Figure 4 – Tuffy Security 295 User Manual
Page 3
Page 3 of 3 – 7/26/2012 – Rev 7/26/12
5. Make final adjustments for proper Hood Lock function. Move the #3.2 OEM hood latch as far to the left as possible.
While holding the #3.2 hood latch in position, adjust the #1 Hood Lock to the right. Position the #1 Hood Lock as far
right as possible WHILE STILL ALLOWING THE LOCK TO CYCLE FREELY WITHOUT RUBBING THE #3.2 HOOD
LATCH. Tighten the (3) #3.3 OEM hood latch bolts to factory specifications. Finally, test the lock operation to verify
the lock and cam can cycle freely without rubbing. With the lock in the unlocked position (turn key counter clockwise),
close the hood. Lock the hood lock (turn key clockwise). Push the #3.2 hood latch lever to the left until it stops
against the #1 Hood Lock cam and VERIFY THAT THE HOOD CANNOT BE OPENED. If the hood cannot be
opened you have successfully adjusted the Hood Lock for proper function.

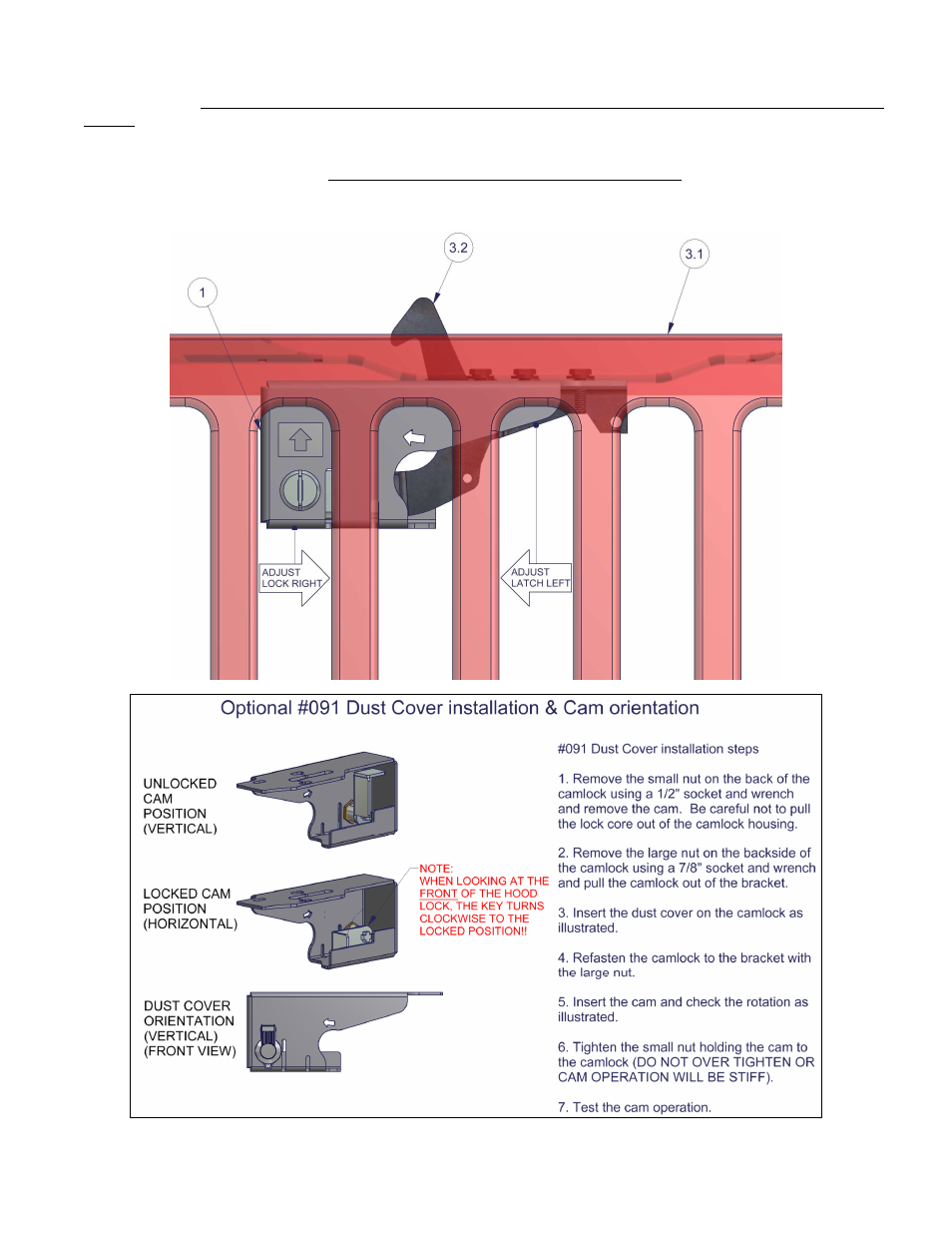

FIGURE 4
Call (970)564-1762 for Technical Support
