92

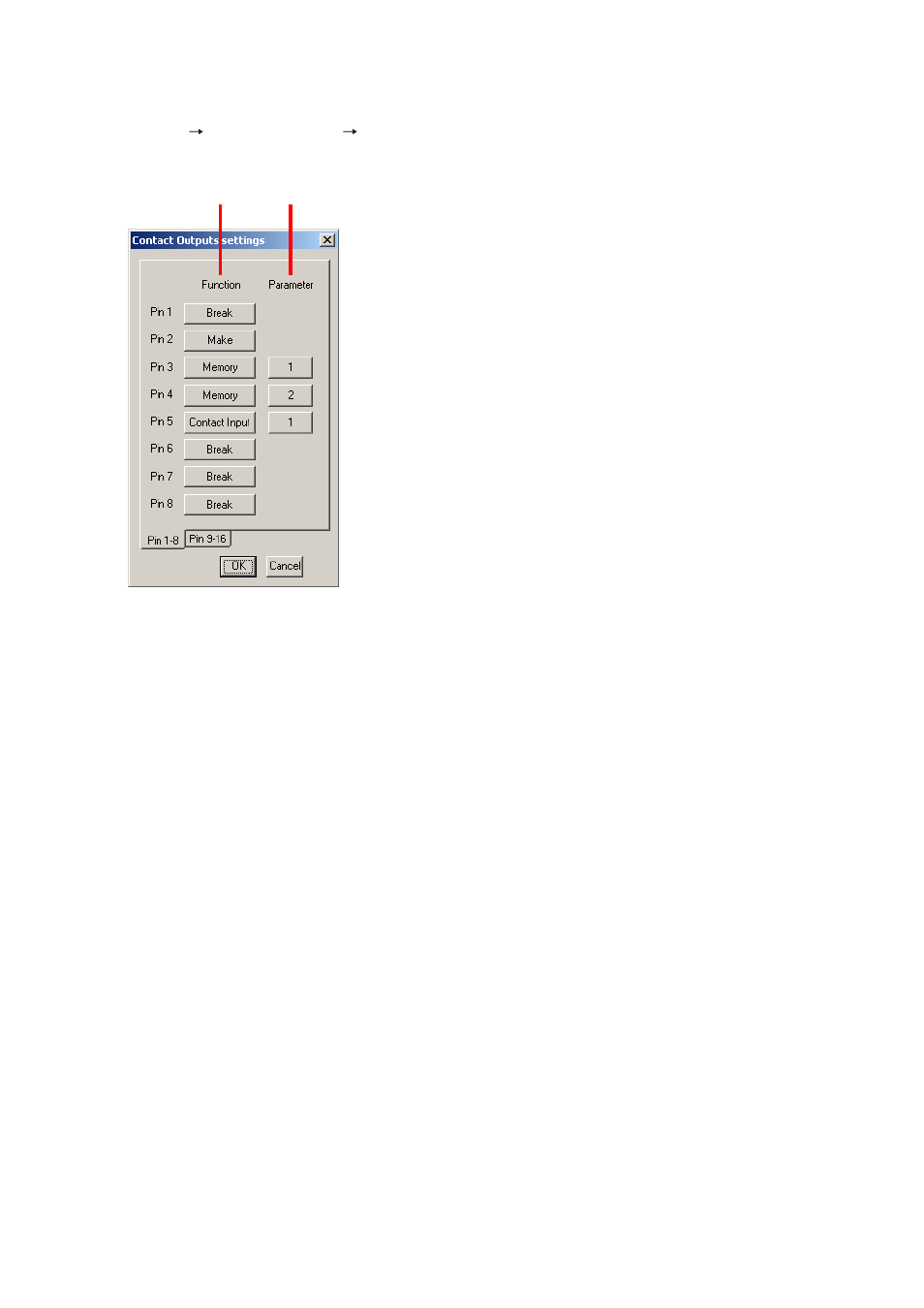

19.4. Contact Output Setting Screen
Select the unit for which you want to perform contact output settings in the unit view or flow view.
Select [Option
External Control... Contact Output] from the menu. The Contact Output setting screen is
then displayed.
(1) Function
Sets the function of the terminal.
The individual terminal pins 1 – 8 are initially set to the
"Preset memory 1 – 8," and other pins all set to "Break."
• Break
Always at break.
• Make
Always at make.
• Memory
Outputs memory selection status.
• Contact input status
Outputs input contact terminal status.
(2) Parameter
Sets the preset memory number for Memory selection status
output and input terminal number for Contact input status
output.
(1) (2)
