9.7. Comp/Gate View (Compression/Noise Gate Function Settings)

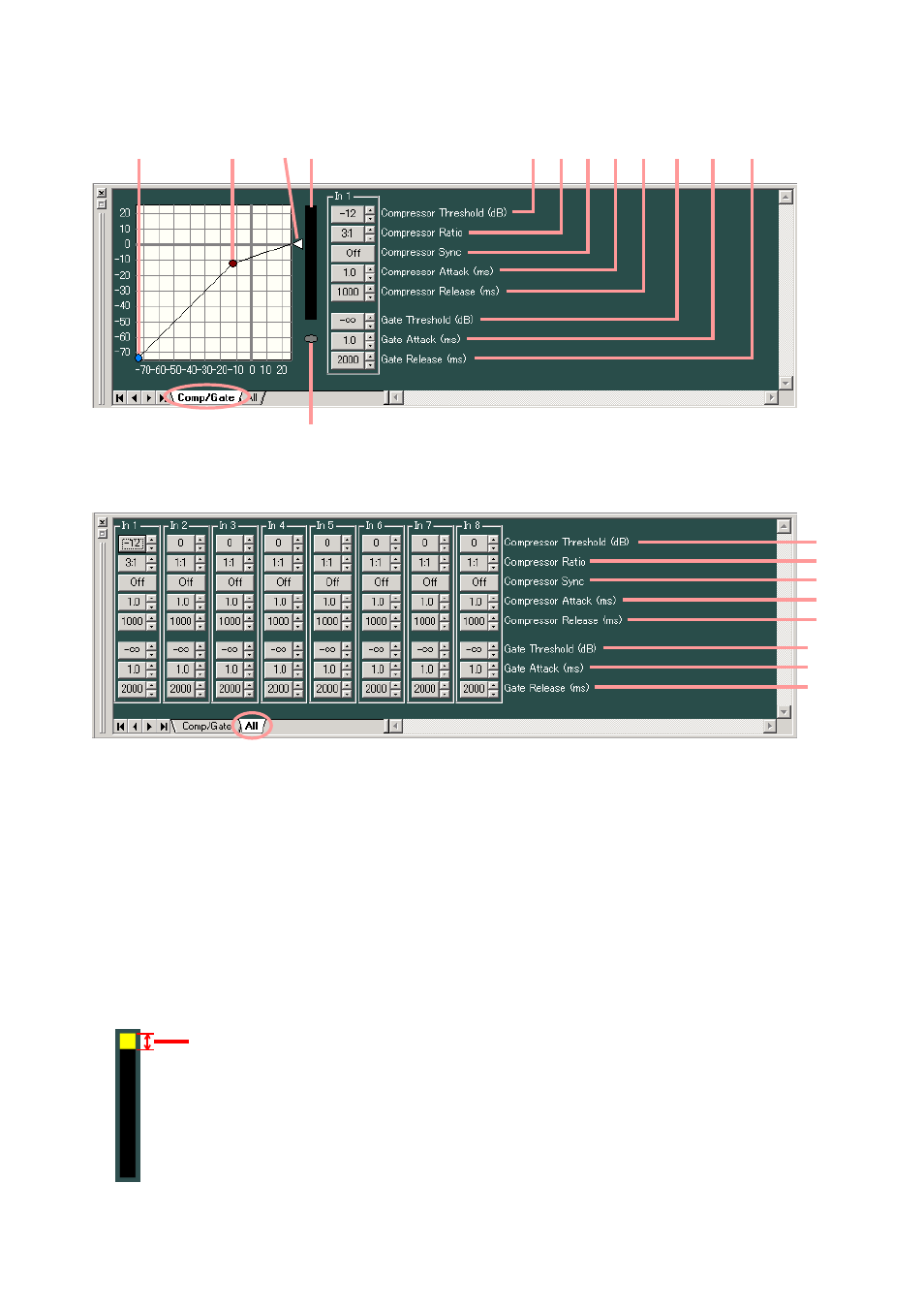

The Comp/Gate view is displayed if you click the [C/G] box .
Clicking the [All] tab causes the setting screen for all channels to appear.
(1) Gate threshold handle
Click and drag this handle right and left to change the noise gate threshold level.
(2) Compressor threshold handle
Click and drag this handle up and down to change the compression threshold level.
(3) Compressor ratio handle
Click and drag this handle up and down to change the compression ratio.
(4) Reduction level meter
Displays the reduction level (how much the compressor has worked) with a bar graph when the unit is
operating during communications between the unit and the PC.
Reduction level
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(5) (6) (7) (8) (9) (10) (11) (12) (4)
(13)
(2) (3) (1)
