48
(3) Measuring data import button
You can simulate crossover settings of the multi-way speaker by importing measuring data obtained by
other measuring software.
Press this button to select the target channel from the pull-down menu.

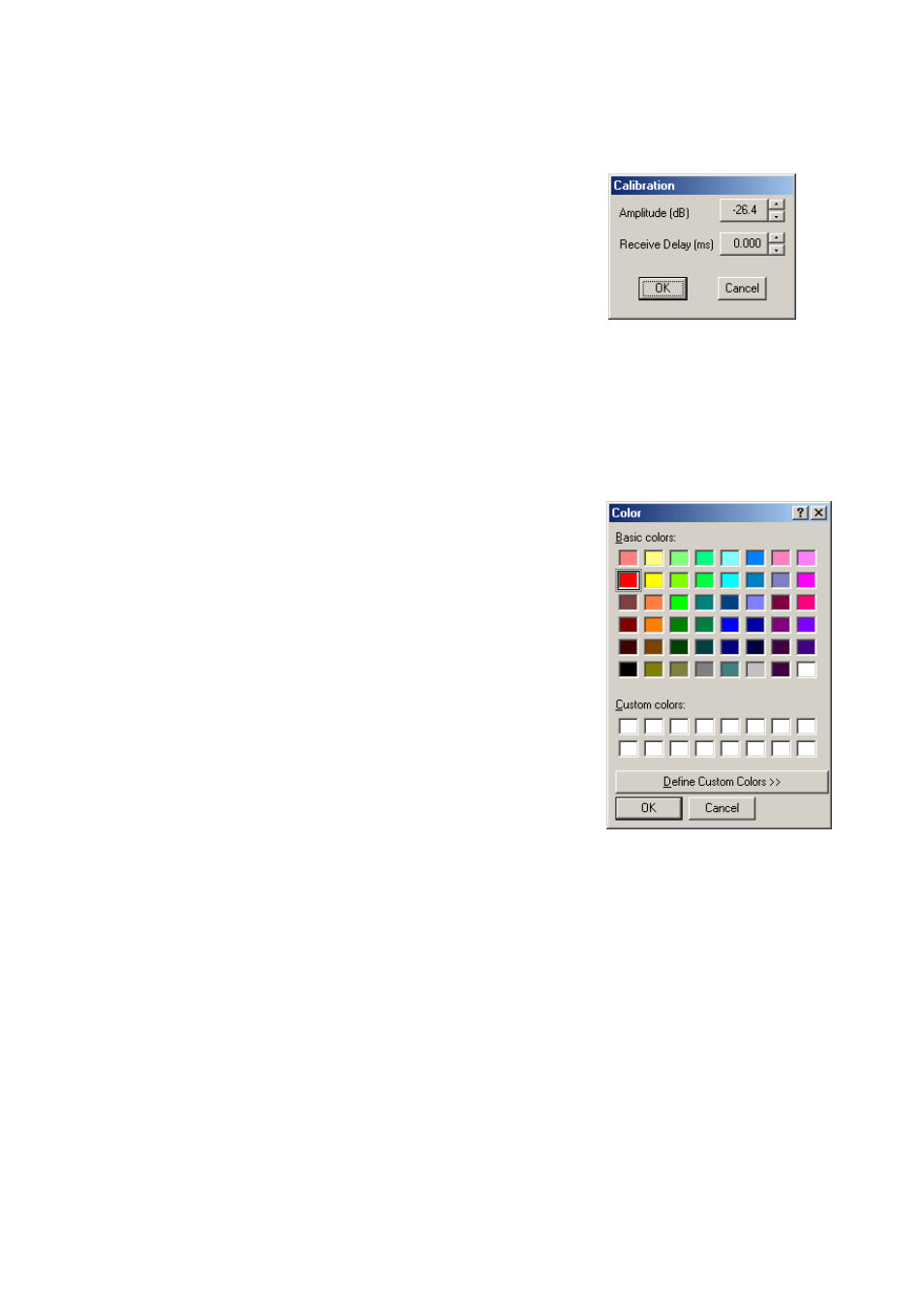

(4) Measuring data calibration button
Press this button to display a dialog for response display calibration.
Change "Amplitude" to calibrate the amplitude response, and
"Receive Delay" to calibrate the phase response.
(5) Response display area
(6) Response display button
Press this button to select whether or not to display each channel's response.
(7) On/Off button
Press this button to select whether or not to add each channel's response to an overall response.
(8) Color change button
If this button is pressed, a dialog for setting the color is displayed,
allowing the display color of each channel's response curve to be
changed.
(9) Overall characteristic display button
Press this button to select whether or not to display an overall response comprised of added responses of
each channel.
